Application example - Packaging

This example is a conveyor belt with cardboard boxes of low weight and different lengths. To ensure
that the components to be packed are placed right in the middle of the boxes you must use
synchronization with marker correction. The grab belt is controlled by position synchronization and as
soon as one of the two markers is recognized, the grab belt is either moved forward to the conveyor
belt position or slowed down. It is also possible for the operator to change the position by means of two
pushbuttons.
MG.10.N4.02 - VLT is a registered Danfoss trademark
Synchronizing controller

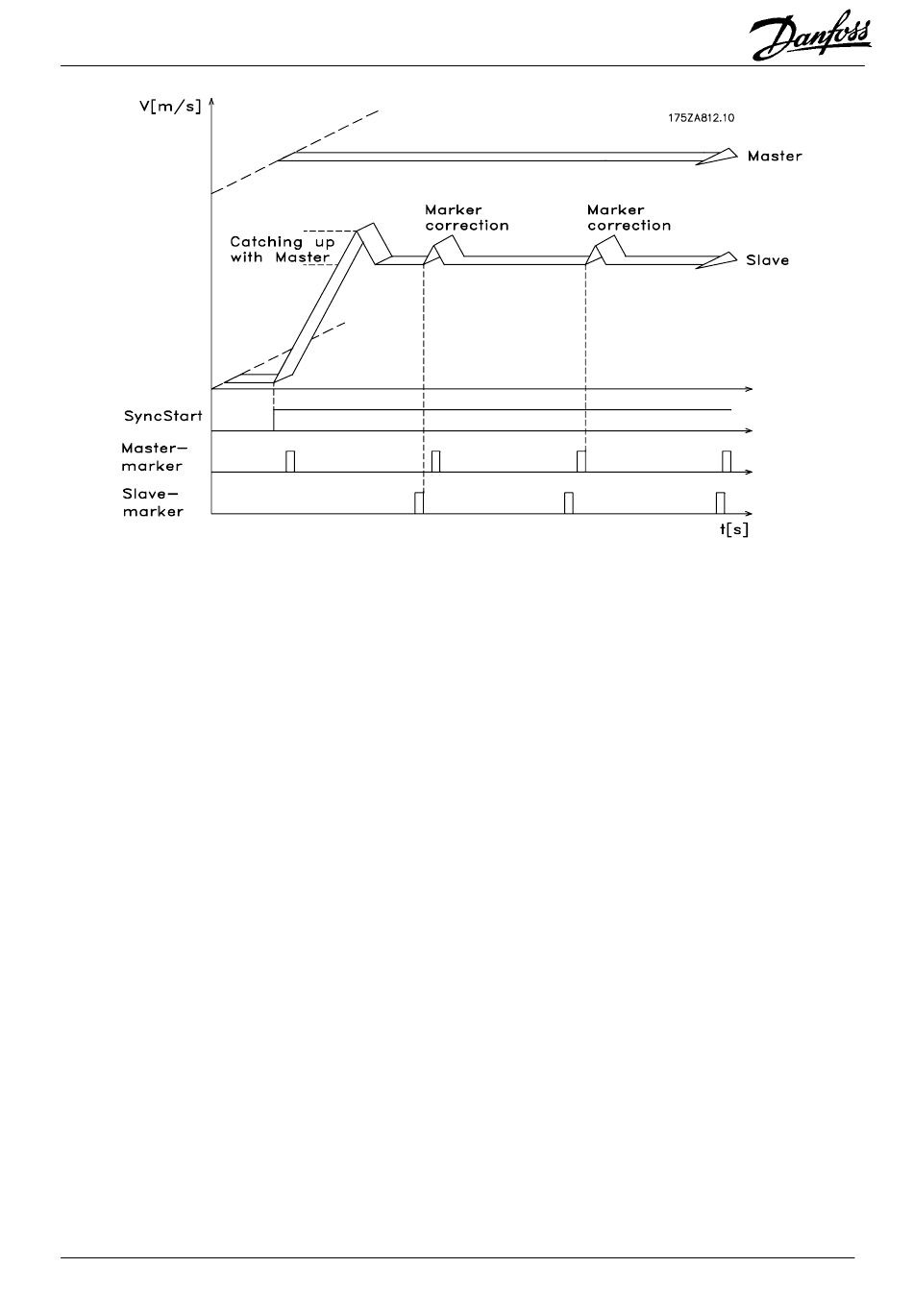

Figure 24: Marker correction during operation
