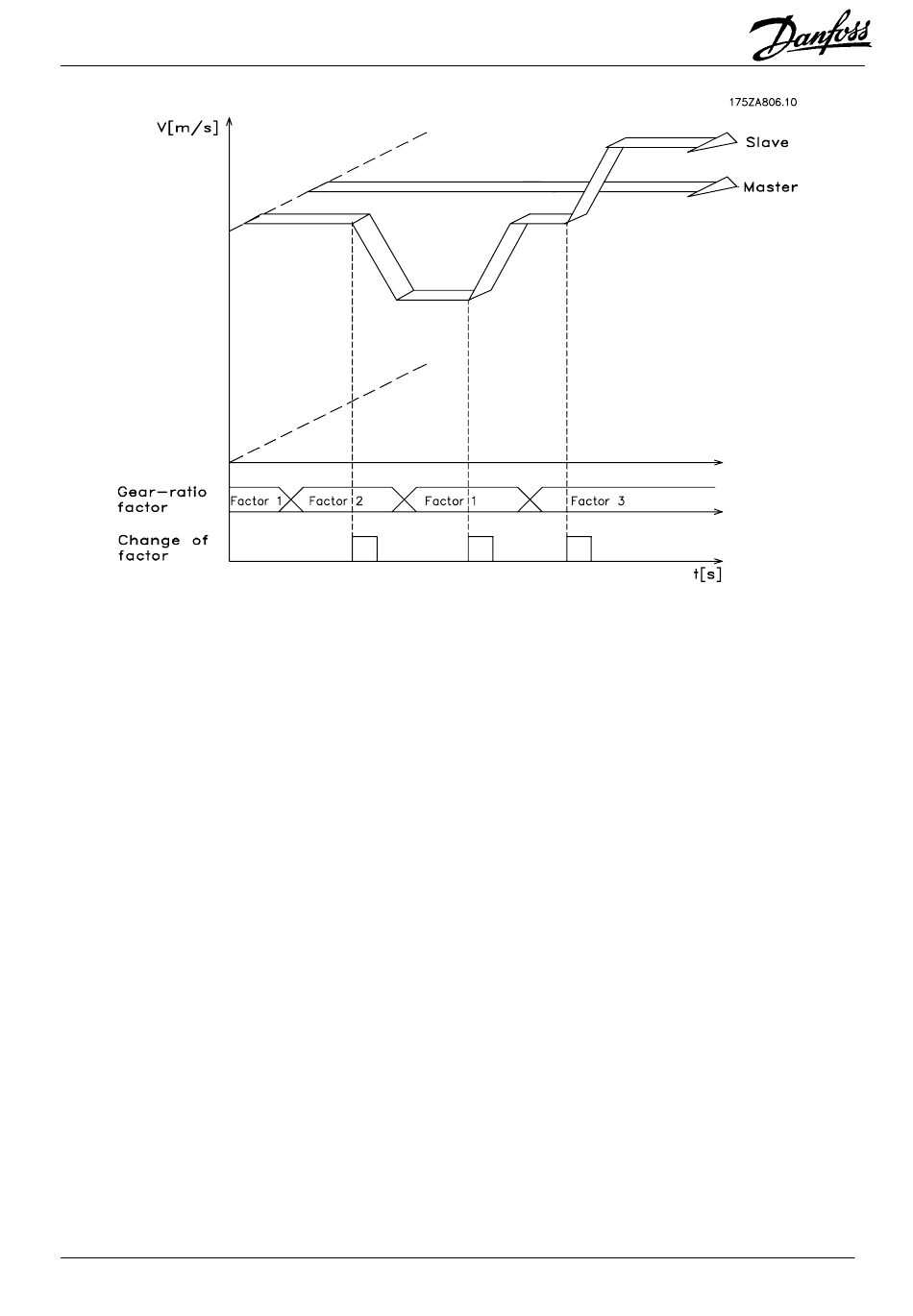

Changing The Gear Ratio With An Analogue Value; Figure 13: Changing The Gear Ratio In Speed Synchronization - Danfoss VLT 5000 Operating Instructions Manual

Synchronizing controller

Hide thumbs Also See for VLT 5000:

Table of Contents

Changing the gear ratio with an analogue value

As an alternative the gear ratio can be set via analogue input 54 with a +/- 10V signal, this function is

active when synchronizing type 6 or 7 is selected in parameter 725.

The gear ratio denominator is fixed to 500. The gear ratio numerator is set by input 54, 5V corresponds

to 500 which then gives a gear ratio of 1:1.
