Function diagrams for position synchronization
SyncStart to a stationary master
If the slave is synchronized to a stationary master drive, the slave will remain stationary.
However, if a fixed offset is defined for the activated gear ratio, the slave travels to the extent of
this offset during synchronization.
SyncStart to a running master
If synchronization is effected to a running master, the slave drive first makes up the deviation of
distance then it proceeds synchronously with the master. Any Offset setting is taken into
account.
50
Synchronizing controller

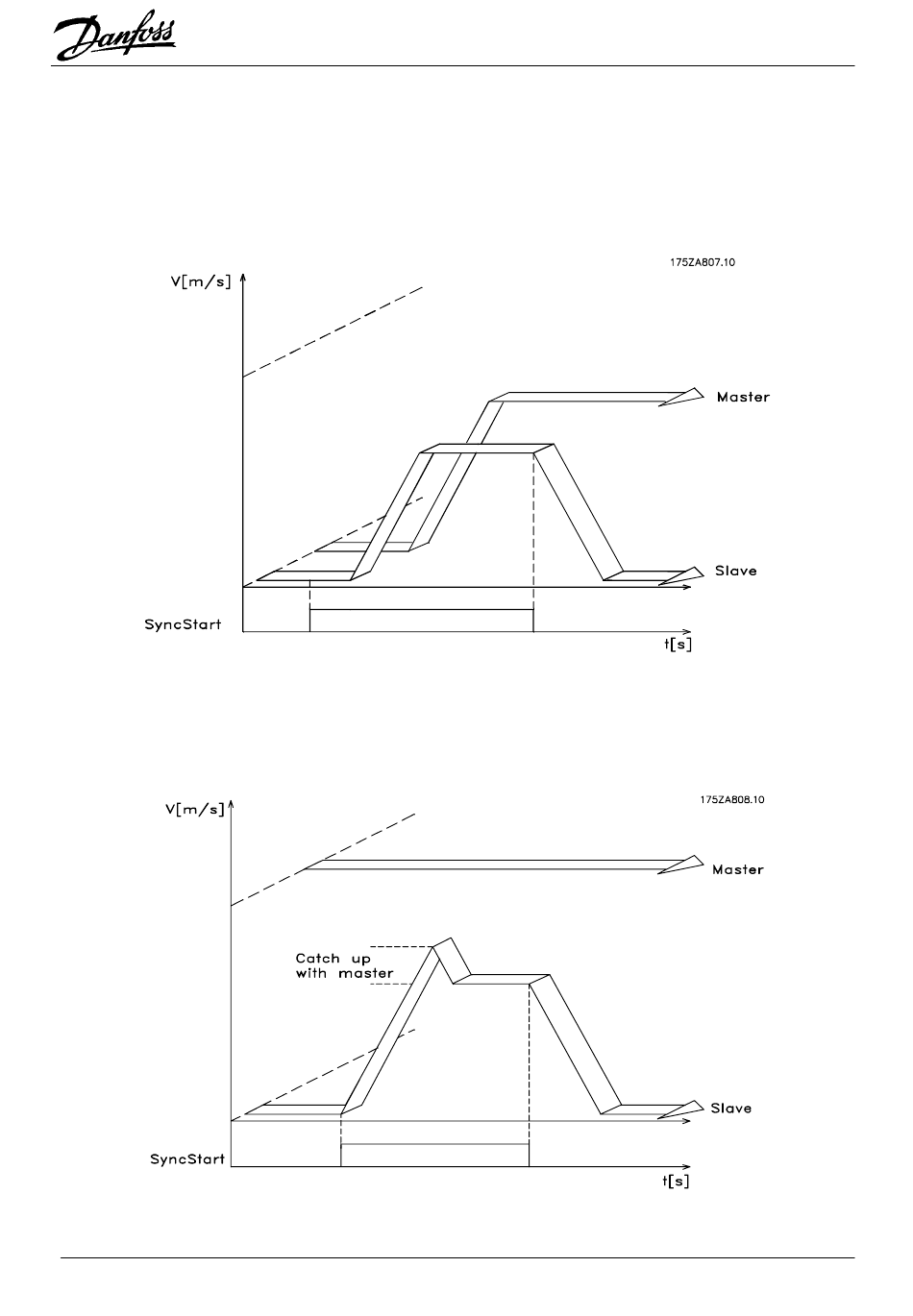

Figure 17: Synchronizing to a stationary master
Figure 18: Synchronizing to a running master
