Application example – Embossing patterns on mould
Moulds of two different kinds and lengths are embossed with a pattern. The conveyor belt operator changes
the position of the pattern by means of two buttons. Each of the two incremental encoders has a zero track
for marker synchronization.

Description of terminals and terminal configuration

52
Synchronizing controller

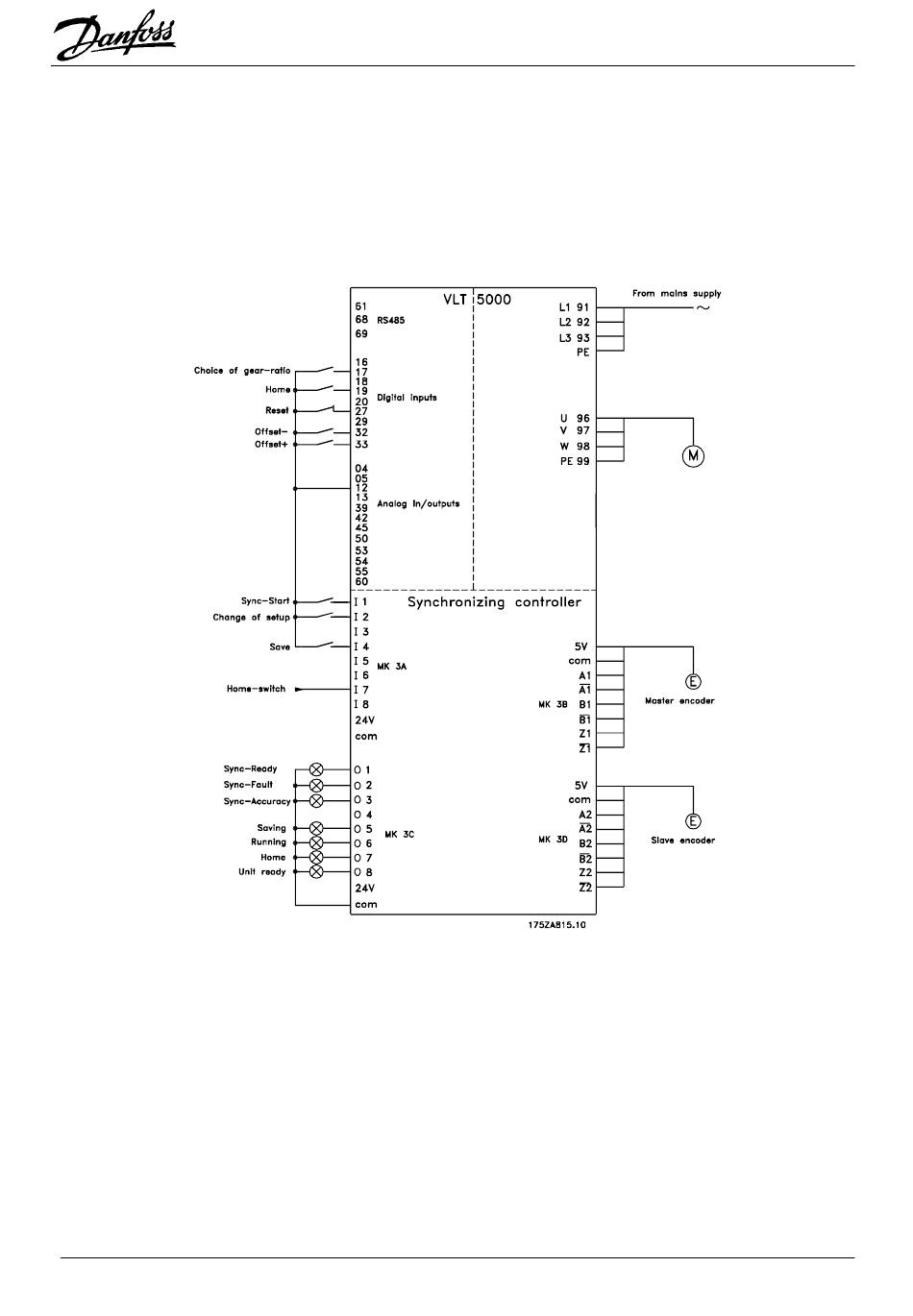

Figure 20: Wiring diagram – application example
