Mounting the Device
4.3 Mounting the Power Reducer Box on the Wall.
Mounting Accessories Provided
Position Quantity
A 2
B 2
1. Determine the installation site taking into
consideration the installation location and space
required.

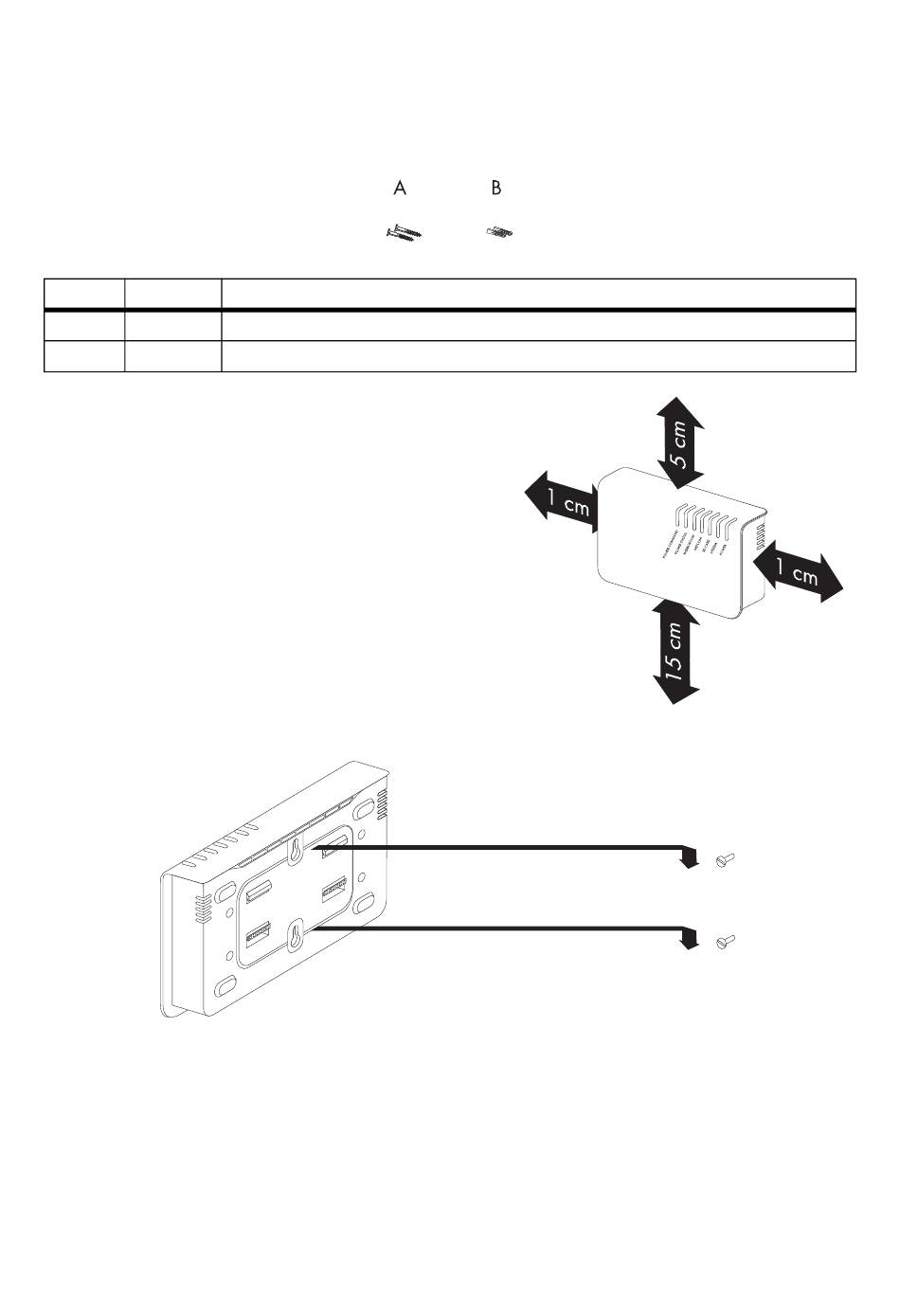

2. Determine the position of the Power Reducer Box on
the wall and mark the drill holes with a pen
(see section 4.1 ).
3. Drill the holes (diameter 6 mm) at the marked
positions and insert wall anchors.
4. Screw in the screws and leave about a 6 mm
clearance between the screw head and the wall.
5. Hang the Power Reducer Box on the screws.
☑ The Power Reducer Box is mounted.
14 REDUCERBOX-TEN100412
Screws
Wall anchor
Designation
SMA Solar Technology AG
Technical Description
