Inserting the decorative foil into the tele-
scopic posts

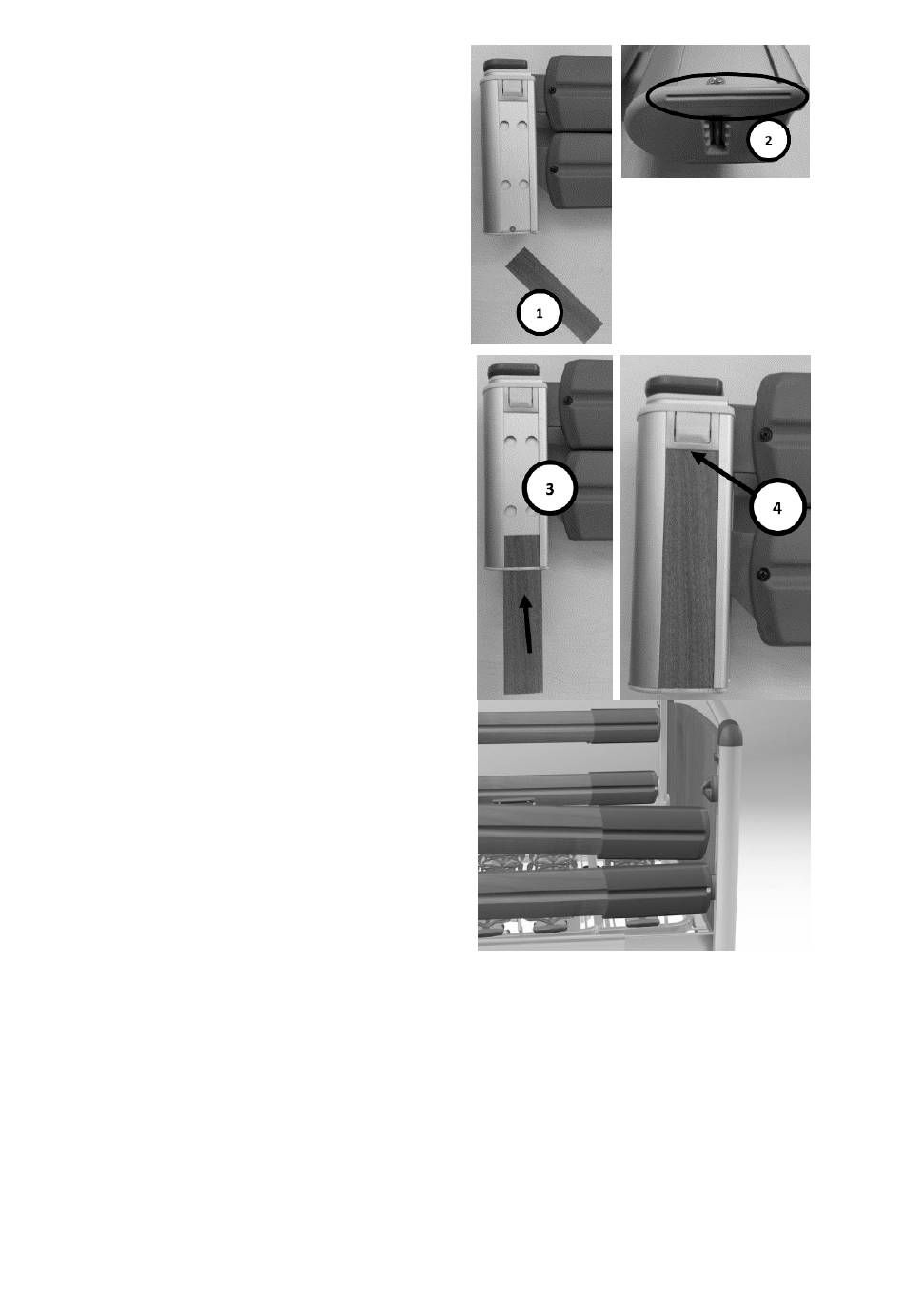

Take the decorative foil (1) and push it from
below through the slot in the plug (2) into
the aluminium profile of the side rail post (3).
Please make sure that the correct side of the
decorative film is facing outwards. This will
be difficult to remove later. Push the decora-
tive foil in until it is flush with the button (4).
On the lower plug (2) there is a snap-in lug
which prevents the decorative foil from fall-
ing out.
For continuous side rails:
Loosen the screws of the insertion at the
head end piece and pull it out slightly.
Now, insert the side guard rails onto the
mounting latches and screw them together.
After all side guard rails have been installed,
slide the end panel back and tighten the
screws again.
Check all screw connections again before operating the bed.
