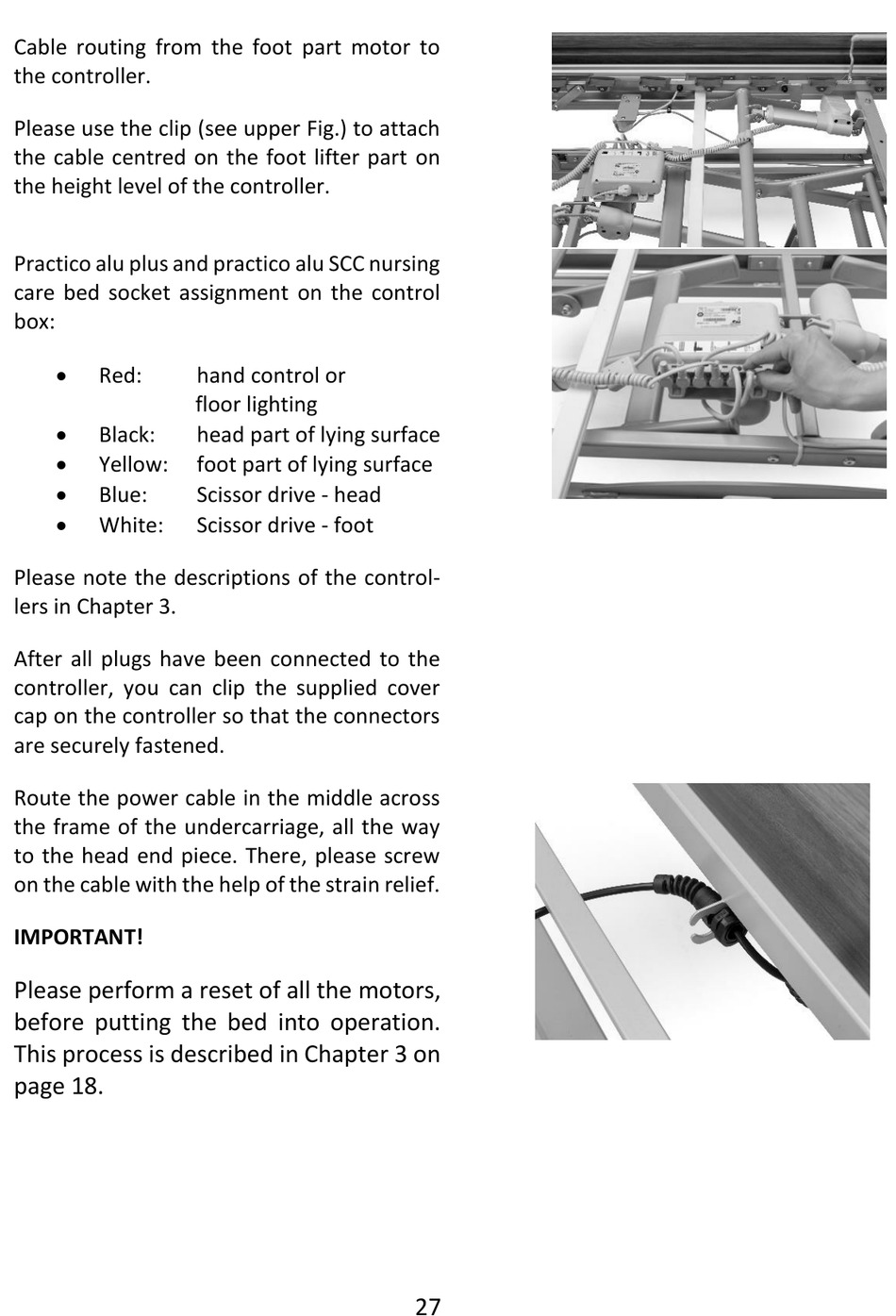

BOCK practico alu plus Assembly And Operation Manual page 27

Cable routing from the foot part motor to
the controller.
Please use the clip (see upper Fig.) to attach
the cable centred on the foot lifter part on
the height level of the controller.
Practico alu plus and practico alu SCC nursing
care bed socket assignment on the control
box:

Red:

Black:

Yellow:

Blue:

White:
Please note the descriptions of the control-
lers in Chapter 3.
After all plugs have been connected to the
controller, you can clip the supplied cover
cap on the controller so that the connectors
are securely fastened.
Route the power cable in the middle across
the frame of the undercarriage, all the way
to the head end piece. There, please screw
on the cable with the help of the strain relief.
IMPORTANT!
Please perform a reset of all the motors,
before putting the bed into operation.
This process is described in Chapter 3 on
page 18.
hand control or
floor lighting
head part of lying surface
foot part of lying surface
Scissor drive - head
Scissor drive - foot
27
