Drives

Hermann Bock GmbH equips nursing care beds with drive systems from the company
DewertOkin GmbH.
Each drive consists always of four main components.
– Housing
– Motor
– Gear
- Spindle with nut
The housing principle of the individual drive guarantees the permanent function of all
drive components. Through a detailed interior structure, the construction of the housing
interior creates an essential prerequisite for the precise integration of the drive technol-
ogy, as well as a trouble-free assembly/disassembly.
3.4

The external switch mode power supply SMPS

The plug-in part of the external switch mode power supply (SMPS) is an electronic trans-
former, which warms up only to a minimum degree under load and it is equipped with
electronic performance monitoring. The result is a constant voltage up to the maximum
load (no loss of speed) and a high level of protection against overloading. The external
transformer ensures safety right from the socket because it converts the voltage directly
into the 29V safety low-voltage which is used to actuate the bed. It is connected via plug
coupling to the mains supply line feeder cable and can be replaced separately if defective.
The plug-in part of the external switch mode power supply complies with the European
directives for electrical household appliances. In standby mode, it also has a low energy
consumption of maximum 0.5 Watt and can be used internationally with variable input
voltages from 100 V to 240 V. Electromagnetic alternating fields are not measurable on
the SMPS adapter.

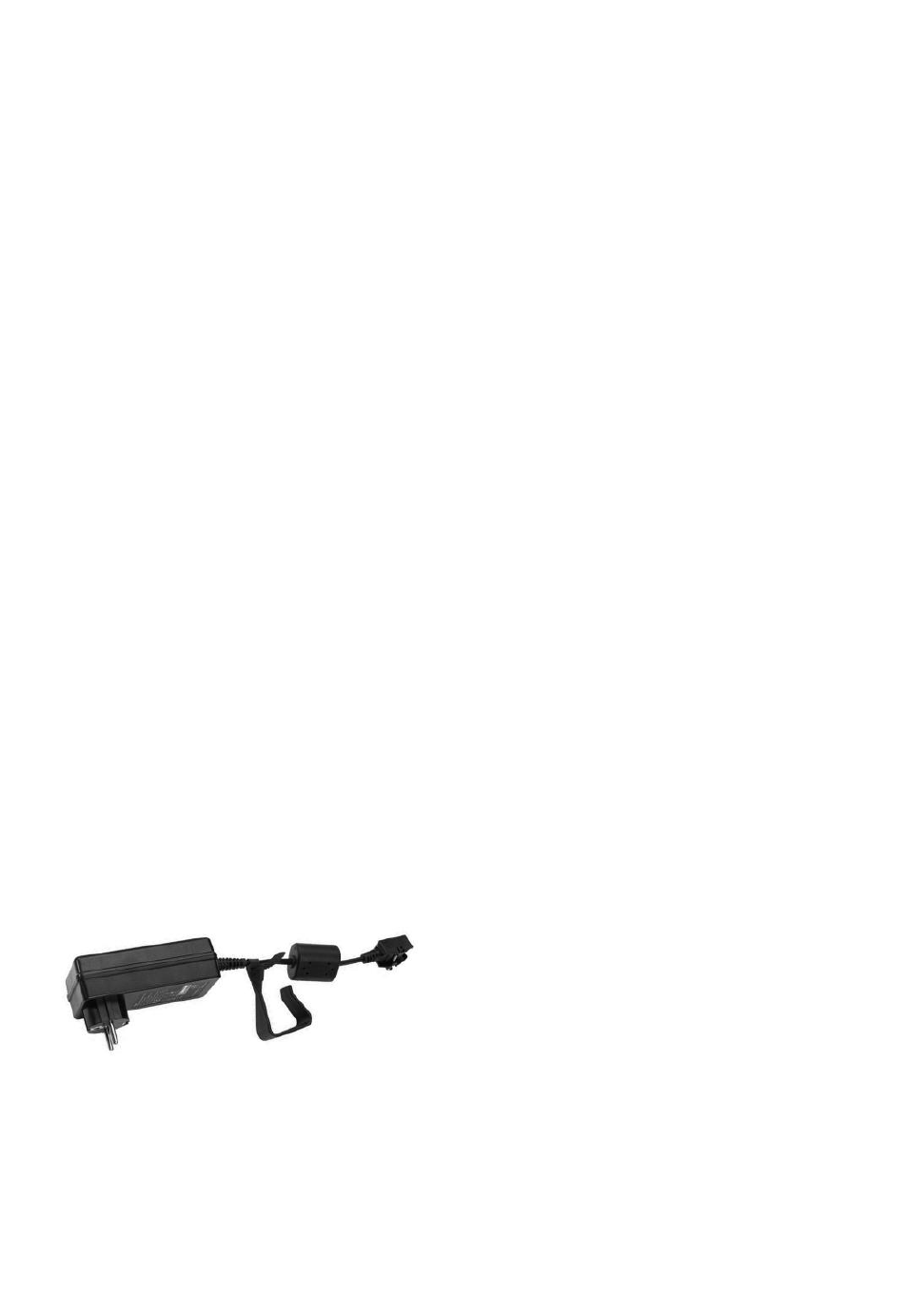

The external switch mode power supply
