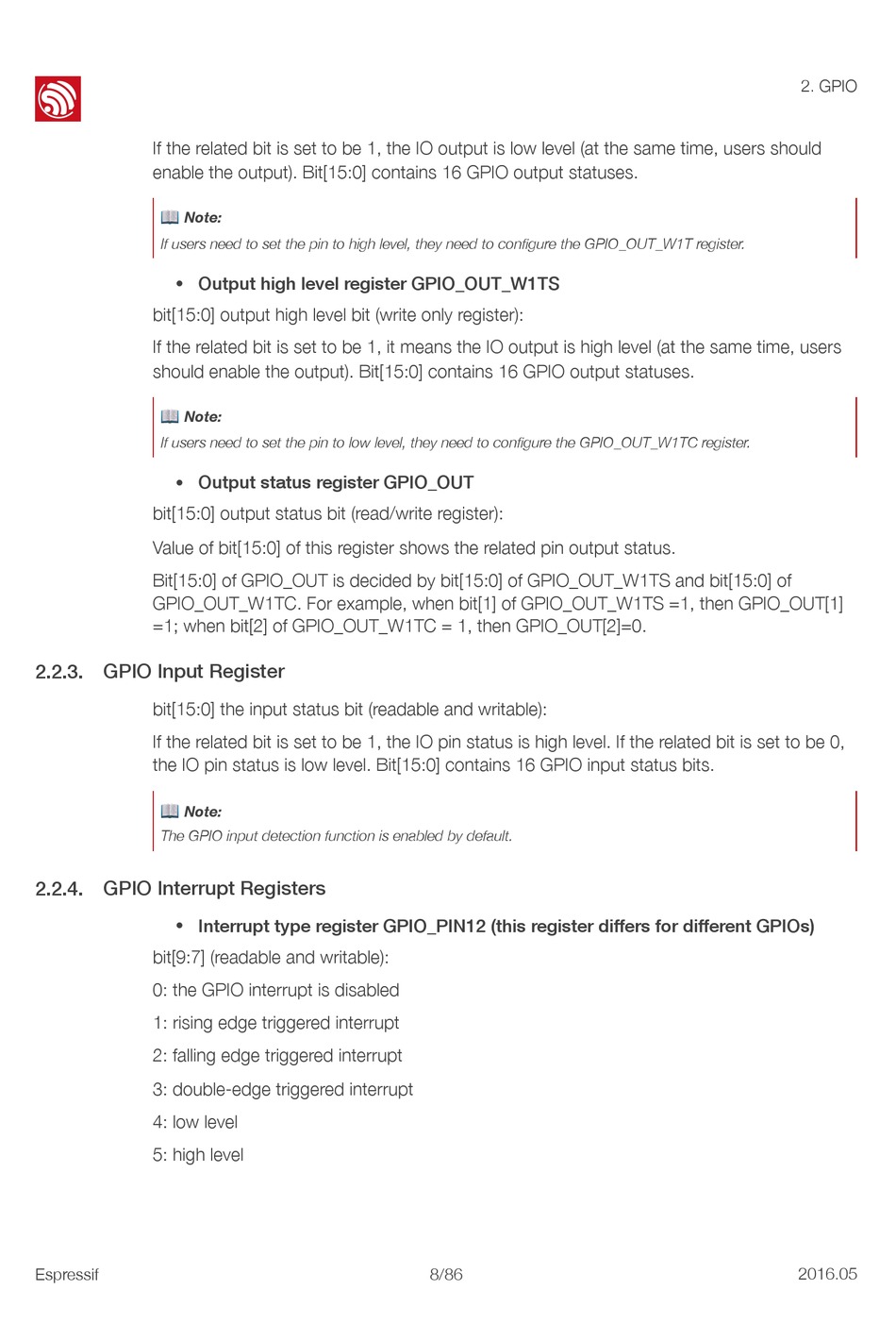

If the related bit is set to be 1, the IO output is low level (at the same time, users should
enable the output). Bit[15:0] contains 16 GPIO output statuses.
! Note:
If users need to set the pin to high level, they need to configure the GPIO_OUT_W1T register.
Output high level register GPIO_OUT_W1TS
•
bit[15:0] output high level bit (write only register):
If the related bit is set to be 1, it means the IO output is high level (at the same time, users
should enable the output). Bit[15:0] contains 16 GPIO output statuses.
! Note:
If users need to set the pin to low level, they need to configure the GPIO_OUT_W1TC register.
Output status register GPIO_OUT
•
bit[15:0] output status bit (read/write register):
Value of bit[15:0] of this register shows the related pin output status.
Bit[15:0] of GPIO_OUT is decided by bit[15:0] of GPIO_OUT_W1TS and bit[15:0] of
GPIO_OUT_W1TC. For example, when bit[1] of GPIO_OUT_W1TS =1, then GPIO_OUT[1]
=1; when bit[2] of GPIO_OUT_W1TC = 1, then GPIO_OUT[2]=0.

2.2.3. GPIO Input Register

bit[15:0] the input status bit (readable and writable):
If the related bit is set to be 1, the IO pin status is high level. If the related bit is set to be 0,
the IO pin status is low level. Bit[15:0] contains 16 GPIO input status bits.
! Note:
The GPIO input detection function is enabled by default.

2.2.4. GPIO Interrupt Registers

Interrupt type register GPIO_PIN12 (this register differs for different GPIOs)
•
bit[9:7] (readable and writable):
0: the GPIO interrupt is disabled
1: rising edge triggered interrupt
2: falling edge triggered interrupt
3: double-edge triggered interrupt
4: low level
5: high level
