Espressif PAN100 Manual

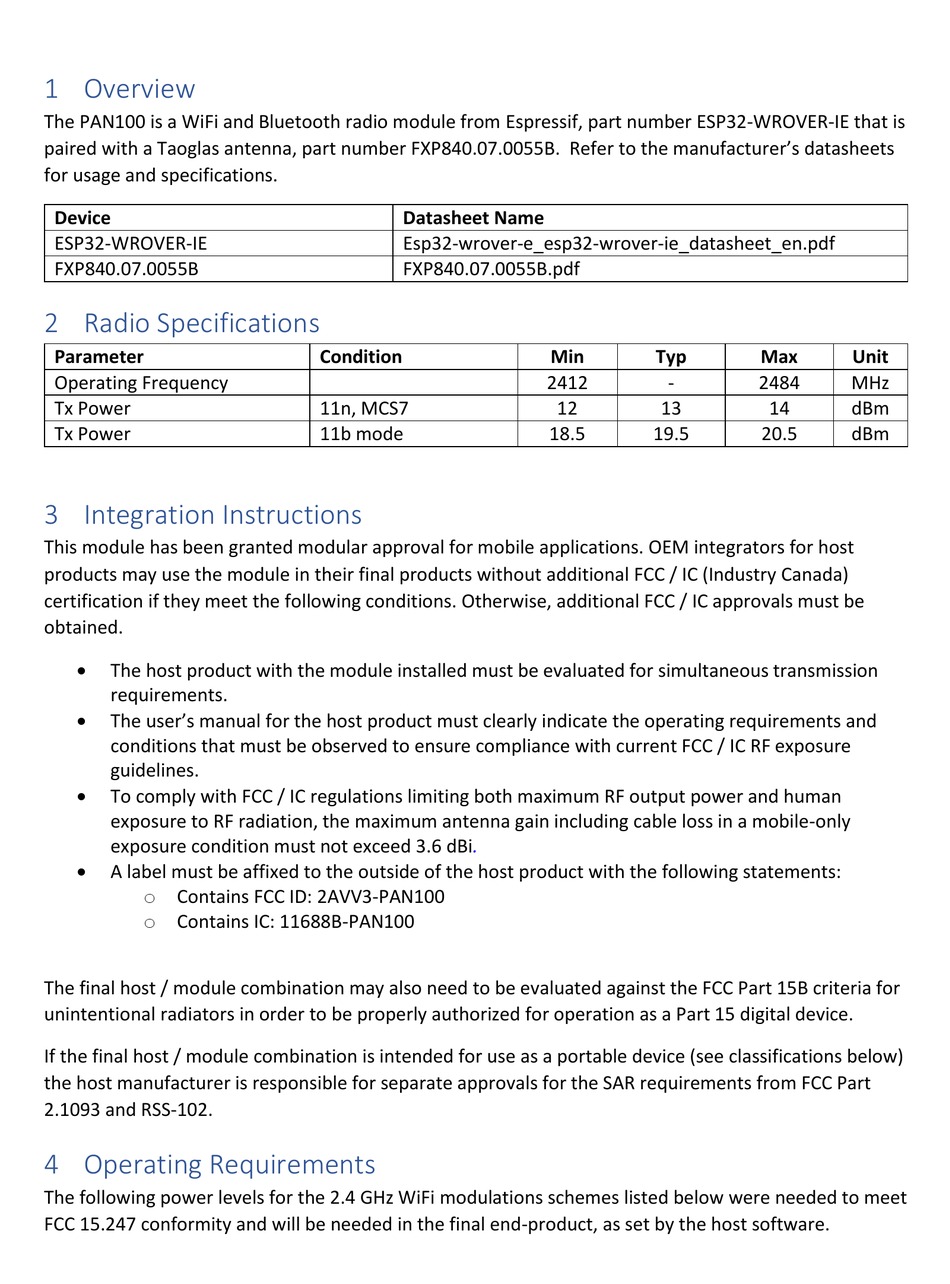

1 Overview

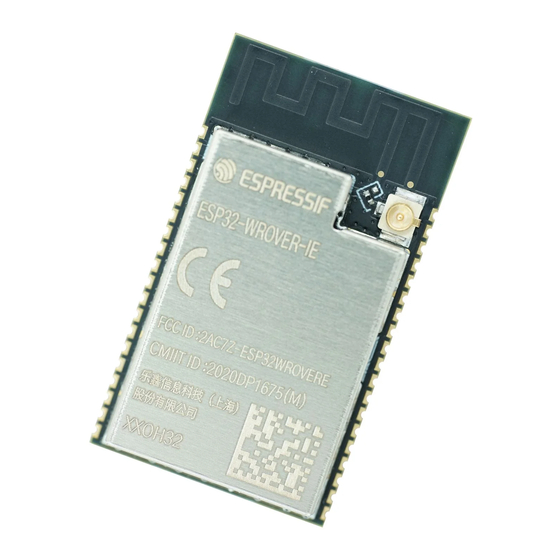

The PAN100 is a WiFi and Bluetooth radio module from Espressif, part number ESP32-WROVER-IE that is
paired with a Taoglas antenna, part number FXP840.07.0055B. Refer to the manufacturer's datasheets
for usage and specifications.
Device
ESP32-WROVER-IE
FXP840.07.0055B

2 Radio Specifications

Parameter
Operating Frequency
Tx Power
Tx Power

3 Integration Instructions

This module has been granted modular approval for mobile applications. OEM integrators for host
products may use the module in their final products without additional FCC / IC (Industry Canada)
certification if they meet the following conditions. Otherwise, additional FCC / IC approvals must be
obtained.

The host product with the module installed must be evaluated for simultaneous transmission
requirements.

The user's manual for the host product must clearly indicate the operating requirements and
conditions that must be observed to ensure compliance with current FCC / IC RF exposure
guidelines.

To comply with FCC / IC regulations limiting both maximum RF output power and human
exposure to RF radiation, the maximum antenna gain including cable loss in a mobile-only
exposure condition must not exceed 3.6

A label must be affixed to the outside of the host product with the following statements:
o Contains FCC ID: 2AVV3-PAN100
o Contains IC: 11688B-PAN100
The final host / module combination may also need to be evaluated against the FCC Part 15B criteria for
unintentional radiators in order to be properly authorized for operation as a Part 15 digital device.
If the final host / module combination is intended for use as a portable device (see classifications below)
the host manufacturer is responsible for separate approvals for the SAR requirements from FCC Part
2.1093 and RSS-102.

4 Operating Requirements

The following power levels for the 2.4 GHz WiFi modulations schemes listed below were needed to meet
FCC 15.247 conformity and will be needed in the final end-product, as set by the host software.
Datasheet Name
Esp32-wrover-e_esp32-wrover-ie_datasheet_en.pdf
FXP840.07.0055B.pdf
Condition
11n, MCS7
11b mode
dBi.
Min Typ
2412 -
12 13
18.5 19.5
Max Unit
2484 MHz
14 dBm
20.5 dBm
