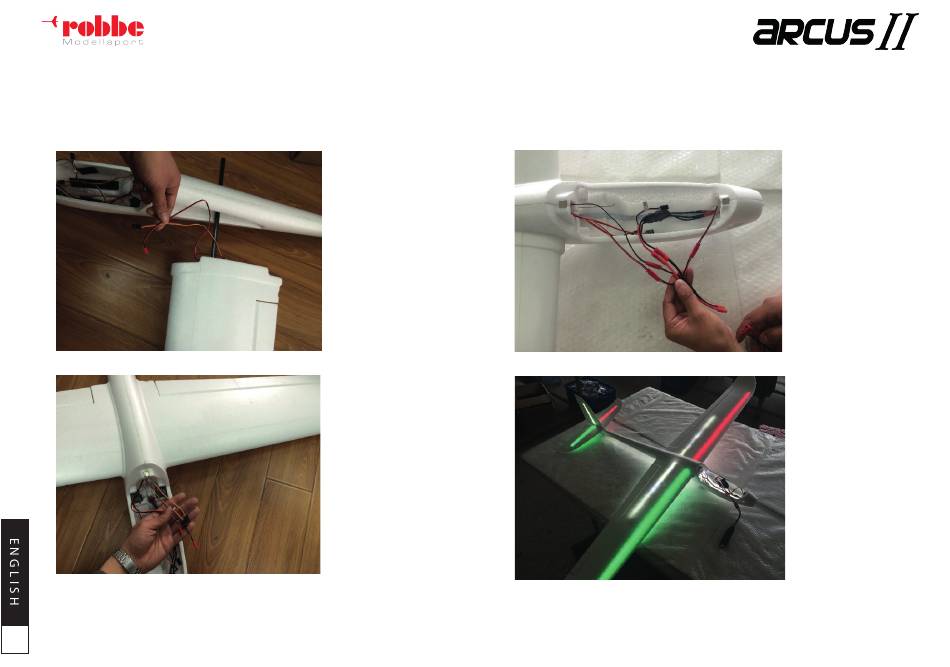

3. Assemble the wings
Guide the LED wire of the wing and servo wire thru the hole in the fuselage to the
cabin, as shown in Fig. 6 and 7.
Fig. 6
Fig. 7
22
I N S T R U C T I O N S A N D U S E R M A N U A L
4. Connect all LED wires
Connect all LED wires and ESC to the adapter connector, and power the
LED, as shown below.
Fig. 8
Fig. 9
