Mounting the canopy and inserting the flight battery

1

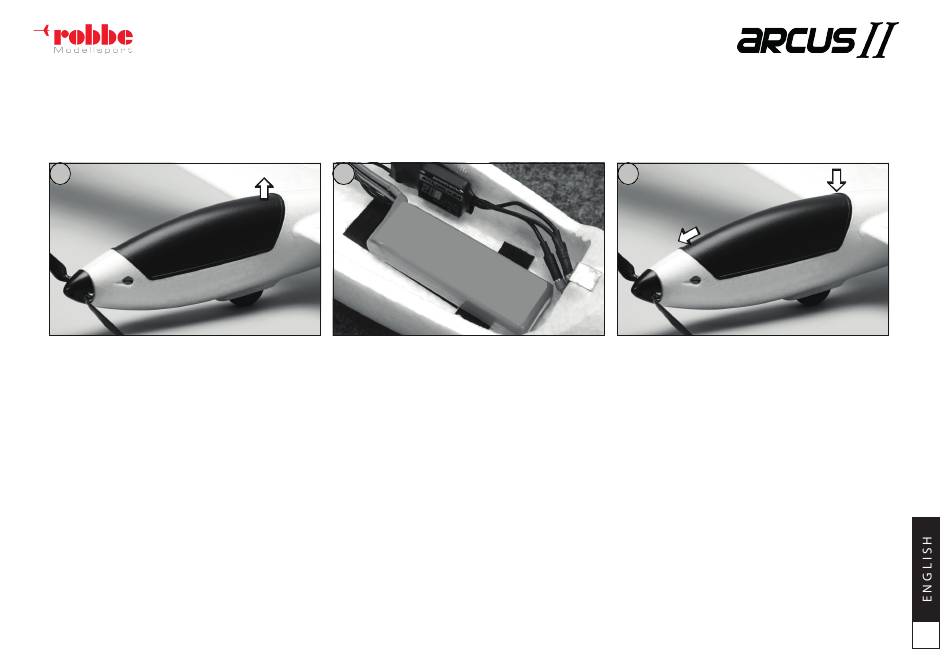

Picture 1:
The canopy is held with a magnetic lock. Pull the canopy
upwards in the rear third to remove it.
I N S T R U C T I O N S A N D U S E R M A N U A L
2
Picture 2:
To secure the flight battery against slipping, glue the
Velcro tape (hook side) to the fuselage floor.
Insert the flight battery so that the model is in the
centre of gravity (page 14). Make sure that the Velcro
tape on the battery (fleece) is correctly hooked into
the counterpart in the fuselage.
The weight distribution changes when the camera
bracket and camera are mounted. Note centre of
gravity (page 14)
Do NOT connect the flight battery!
3
Picture 3:
Place the canopy on the main frame of the fuselage. The
magnet lock holds the canopy securely to the fuselage.
