Finishing Solution Installation
Optimizing the Trigger Position
For the fastest read times, the trigger position should be adjusted so that the barcode is read on either the first or
second image capture regardless of barcode orientation.
19.
Optimizing the Trigger Position
19.1.

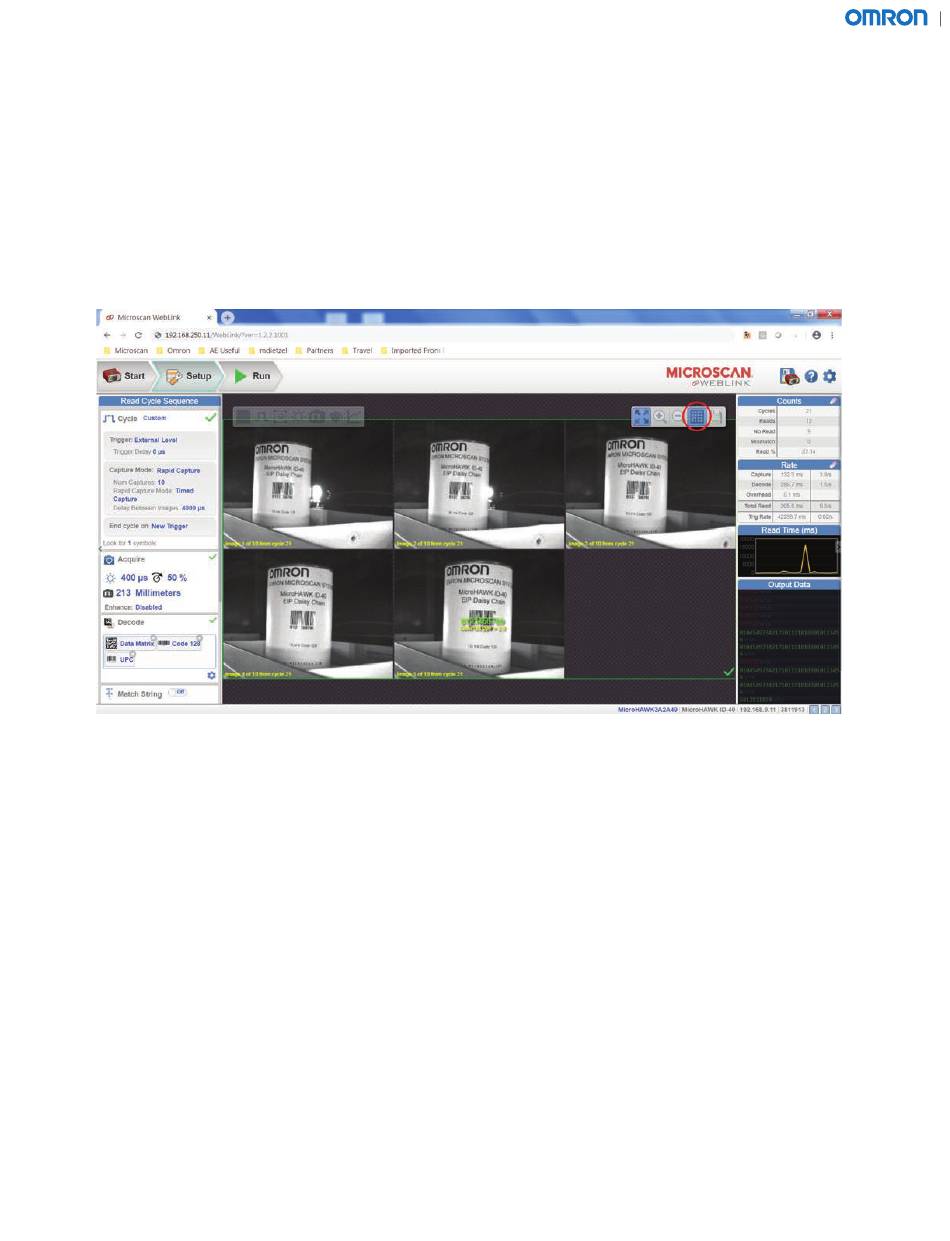

On your PC, open an internet browser and type the IP address of the reader to monitor with WebLink.
In the example below, the IP address 192.168.250.11 is used to monitor reader 1.
19.2.
In the WebLink display area, click the button circled in the image above so that it is highlighted blue. This
enables Show All Images Used in Read Cycle. The image in the upper left will be the first image captured
and the last image will be the rightmost image on the bottom row. The image with the green graphics
over the barcode is the image in which the symbol was decoded.
19.3.
Adjust the trigger position so that the barcode is most often read on image 1 or 2 for every reader.
This will produce the shortest decode times.
Optimize Image Capture Delay
It is important to confirm that the image capture delay is set so that the barcode has the greatest chance of
being decoded as it passes the readers. WebLink can be configured to view all images captured during the read
cycle. If the product movement between images needs adjusting, then the ID-40's image capture delay will
need to be modified.
20.
Optimize Image Capture Delay
20.1.
On your PC, open an internet browser and type in the IP address of the reader to monitor with WebLink.
In the image above, the IP address 192.168.250.11 is used to monitor reader 1.
31
