Omron MicroHAWK ID-40 Technical Note page 23

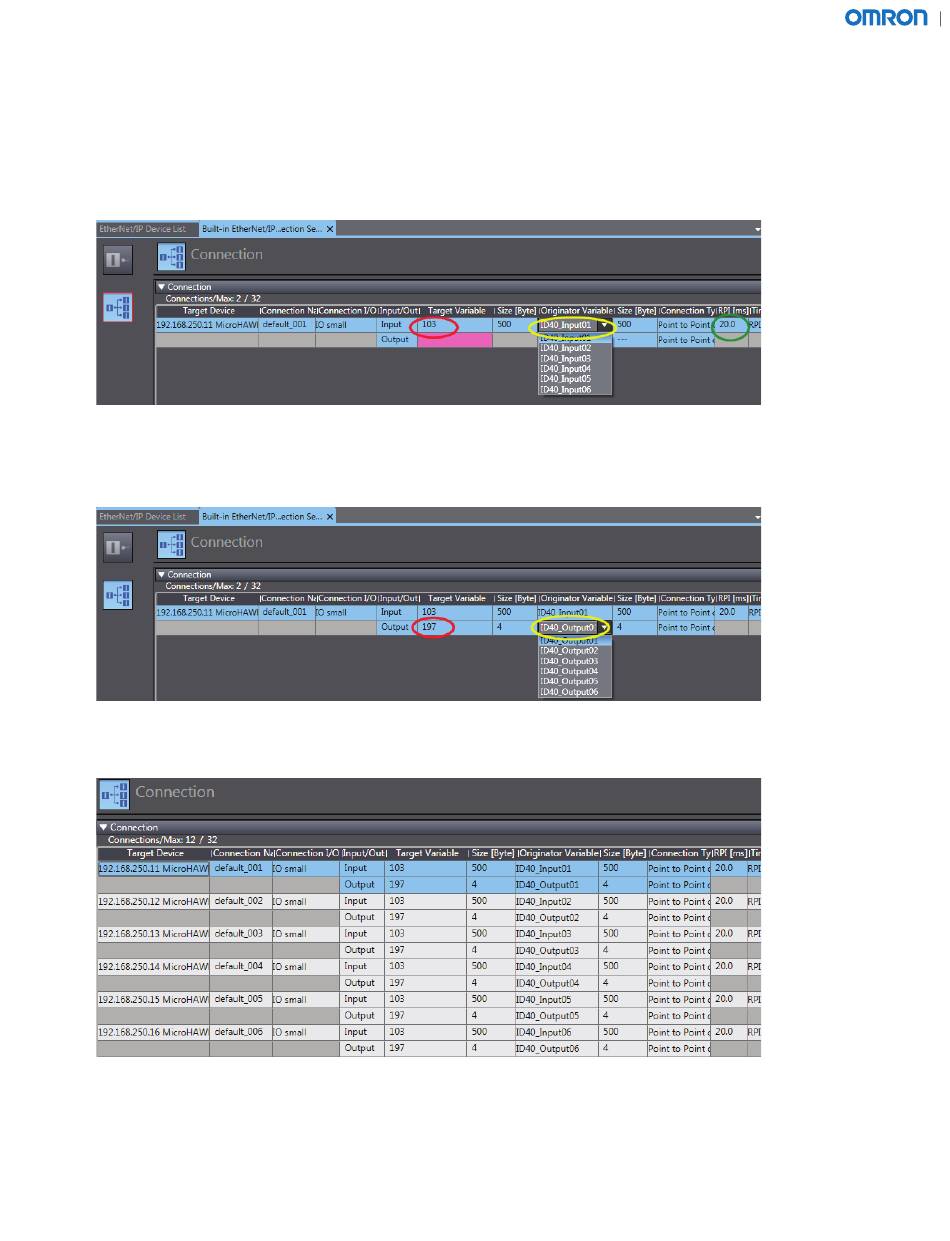

13.10. Click the "Input Target Variable" (first line), which defines the input assembly used in the EDS file, and type
103. This field is circled in red below. Select the Originator Variable, circled in yellow, and select
ID40_Input01 in the dropdown field. In the RPI field, circled in green, change this value to 20.0. Note that
the RPI for the ID-40 cannot be set to an amount less than 10 ms.
13.11. Click the "Output Target Variable" (second line), which defines the output assembly used in the EDS file,
and type 197. This field is circled in red below. Select the Originator Variable, circled in yellow, and select
ID40_Output01 in the dropdown field.
13.12. Repeat steps 13.8 through 13.11 for the remaining ID-40 readers. When completed, your list should
appear similar to the example below.
