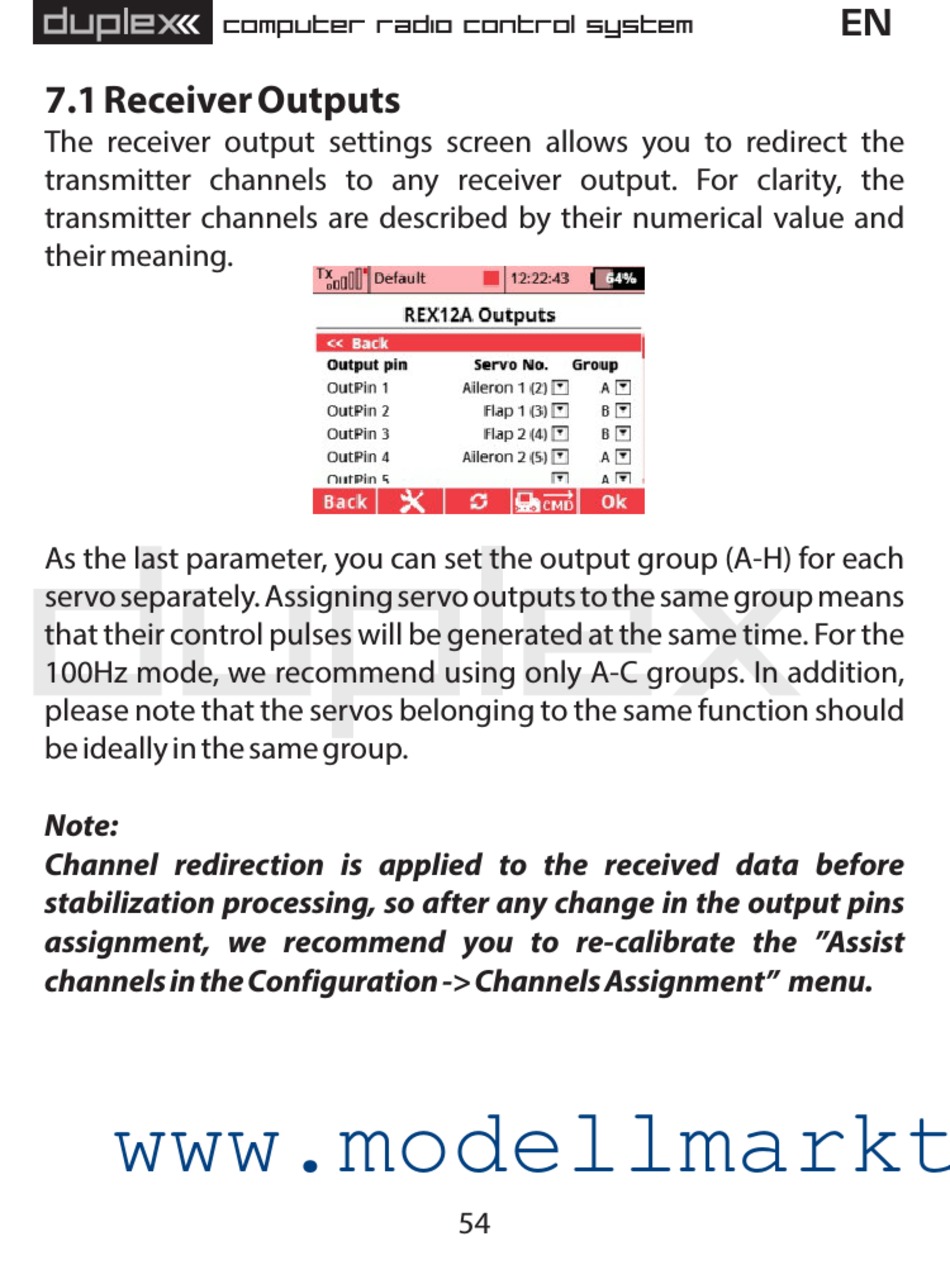

7.1 Receiver Outputs

The receiver output settings screen allows you to redirect the
transmitter channels to any receiver output. For clarity, the
transmitter channels are described by their numerical value and
their meaning.
As the last parameter, you can set the output group (A-H) for each
servo separately. Assigning servo outputs to the same group means
that their control pulses will be generated at the same time. For the
100Hz mode, we recommend using only A-C groups. In addition,
please note that the servos belonging to the same function should
be ideally in the same group.
Note:
Channel redirection is applied to the received data before
stabilization processing, so after any change in the output pins
assignment, we recommend you to re-calibrate the "Assist
channels in the Configuration -> Channels Assignment" menu.
