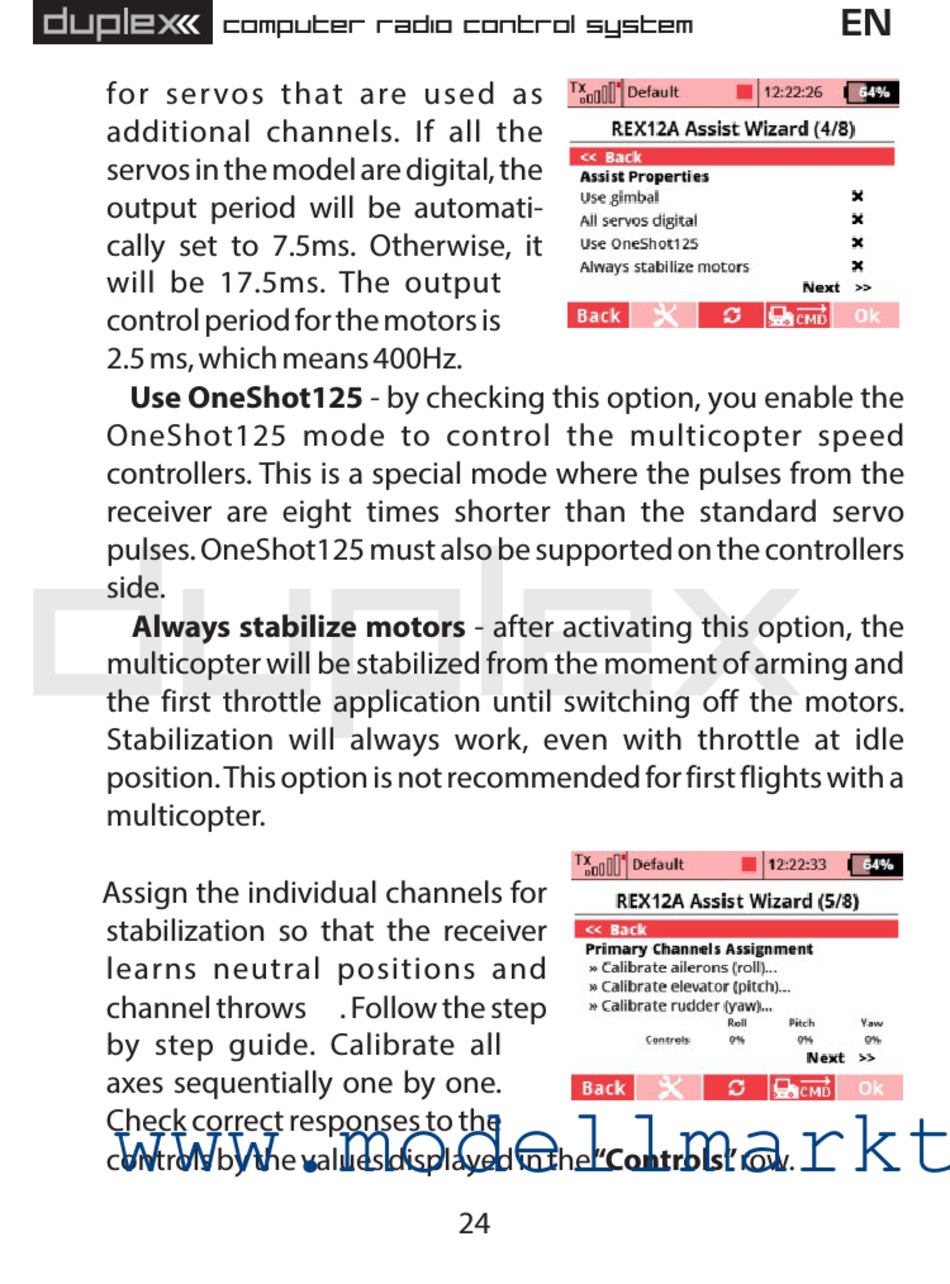

computer radio control system
for ser vos that are used as
additional channels. If all the
servos in the model are digital, the
output period will be automati-
cally set to 7.5ms. Otherwise, it
will be 17.5ms. The output
control period for the motors is
2.5 ms, which means 400Hz.
Use OneShot125 - by checking this option, you enable the
OneShot125 mode to control the multicopter speed
controllers. This is a special mode where the pulses from the
receiver are eight times shorter than the standard servo
pulses. OneShot125 must also be supported on the controllers
side.
Always stabilize motors - after activating this option, the
multicopter will be stabilized from the moment of arming and
the first throttle application until switching off the motors.
Stabilization will always work, even with throttle at idle
position. This option is not recommended for first flights with a
multicopter.
11.
Assign the individual channels for
stabilization so that the receiver
learns neutral positions and
channel throws . Follow the step
by step guide. Calibrate all
axes sequentially one by one.
Check correct responses to the
www.modellmarkt
www.modellmarkt
controls by the values displayed in the "Controls" row.
h)
24
g)
h)
EN
