negative percent values decrease to a minimum of 10%. The value
of 0% corresponds to the unchanged default gain value.

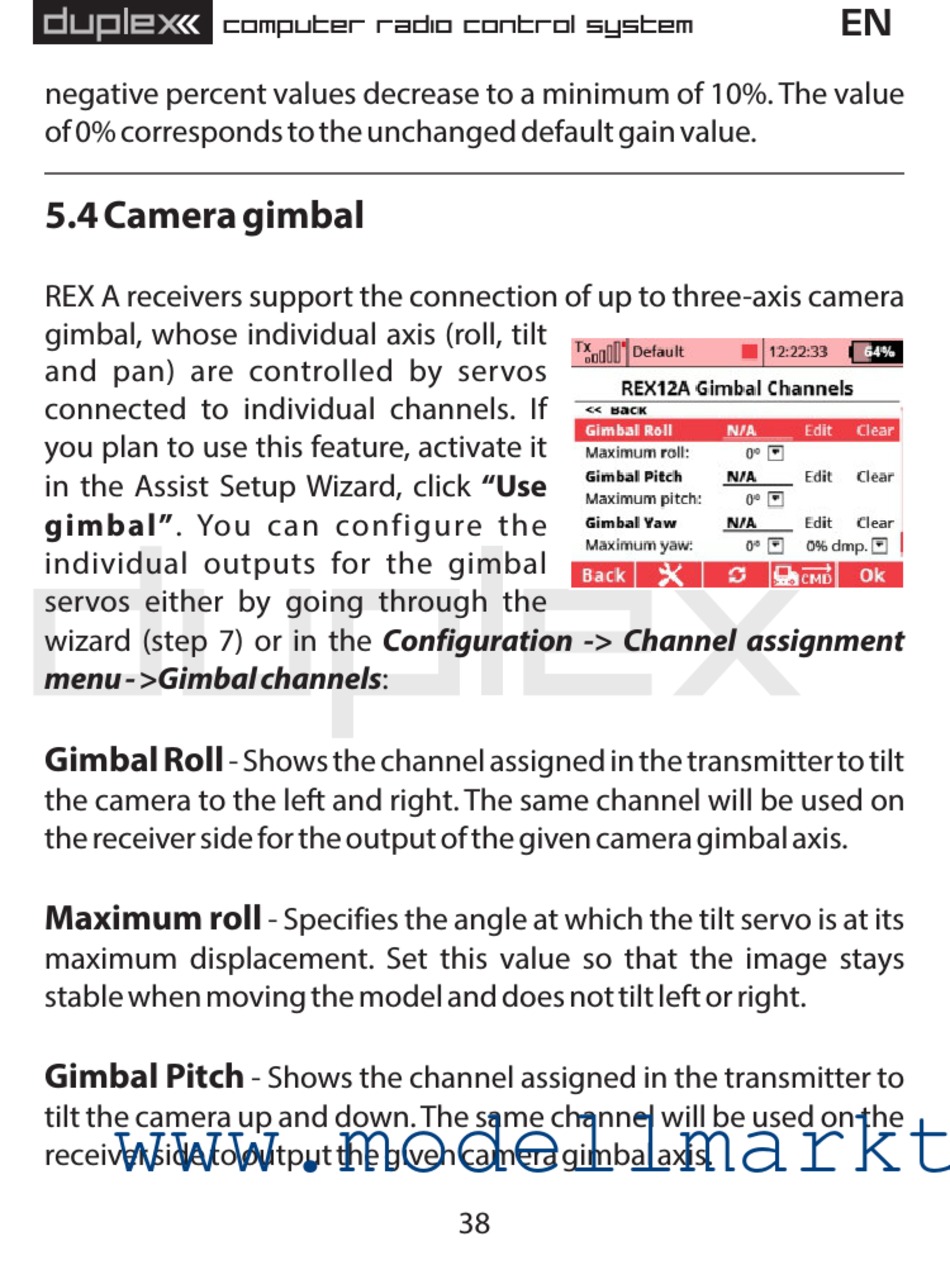

5.4 Camera gimbal

REX A receivers support the connection of up to three-axis camera
gimbal, whose individual axis (roll, tilt
and pan) are controlled by servos
connected to individual channels. If
you plan to use this feature, activate it
in the Assist Setup Wizard, click "Use
gimbal". You can configure the
individual outputs for the gimbal
servos either by going through the
wizard (step 7) or in the Configuration -> Channel assignment
menu - >Gimbal channels:
Gimbal Roll
the camera to the left and right. The same channel will be used on
the receiver side for the output of the given camera gimbal axis.
Maximum roll
maximum displacement. Set this value so that the image stays
stable when moving the model and does not tilt left or right.
Gimbal Pitch
tilt the camera up and down. The same channel will be used on the
www.modellmarkt www.modellmarkt
receiver side to output the given camera gimbal axis.
- Shows the channel assigned in the transmitter to tilt
- Specifies the angle at which the tilt servo is at its
- Shows the channel assigned in the transmitter to
