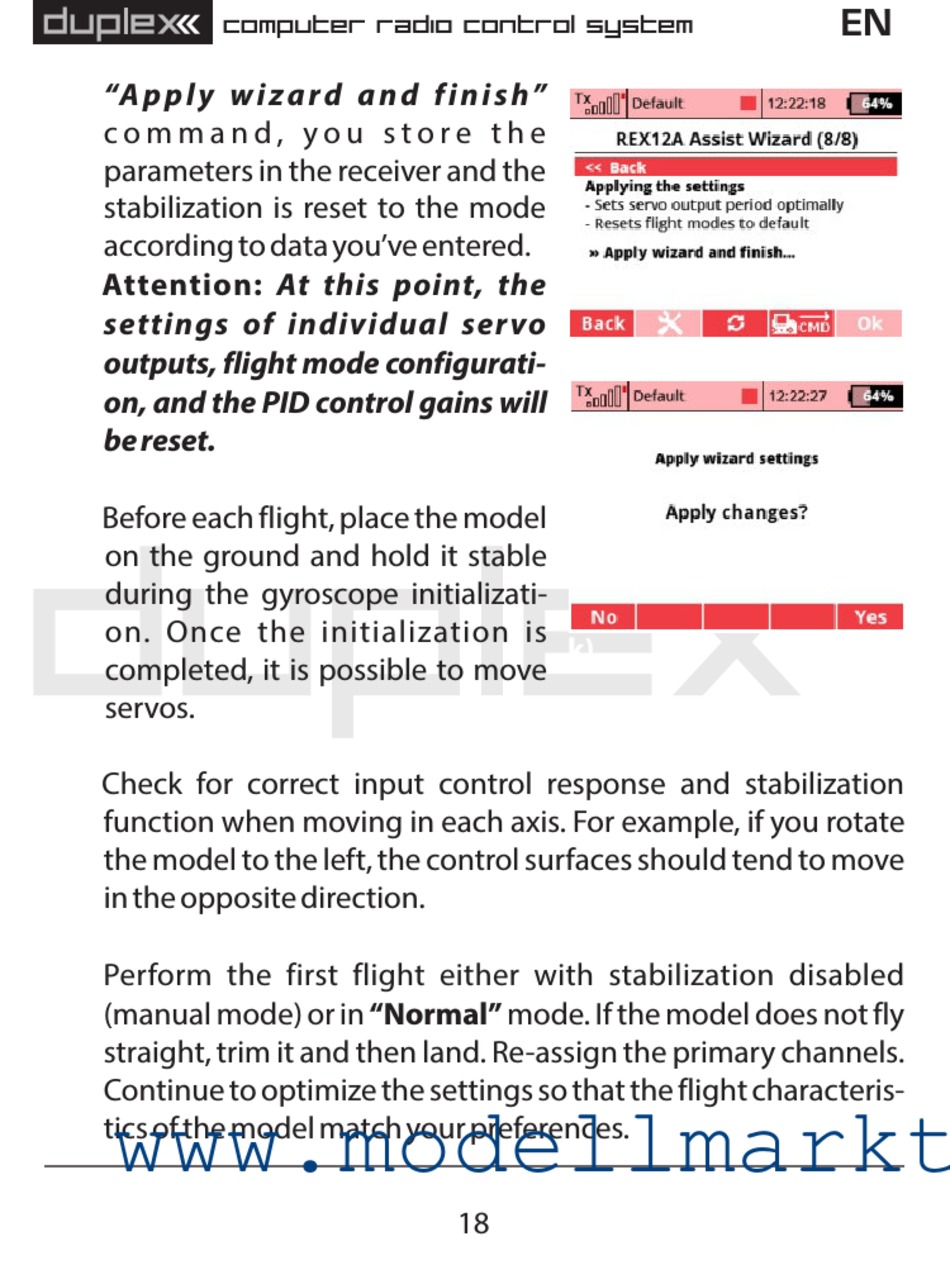

JETI model Duplex REX Assist Series User Manual page 19

computer radio control system
"A p p l y w i z a r d a n d f i n i s h"
c o m m a n d , y o u s t o r e t h e
parameters in the receiver and the
stabilization is reset to the mode
according to data you've entered.
Attention: At this point, the
settings of individual servo
outputs, flight mode configurati-
on, and the PID control gains will
be reset.
14. Before each flight, place the model
on the ground and hold it stable
during the gyroscope initializati-
on. Once the initialization is
completed, it is possible to move
servos.
15. Check for correct input control response and stabilization
function when moving in each axis. For example, if you rotate
the model to the left, the control surfaces should tend to move
in the opposite direction.
16. Perform the first flight either with stabilization disabled
(manual mode) or in "Normal" mode. If the model does not fly
straight, trim it and then land. Re-assign the primary channels.
Continue to optimize the settings so that the flight characteris-
www.modellmarkt www.modellmarkt
tics of the model match your preferences.
j)
k)
18
EN
