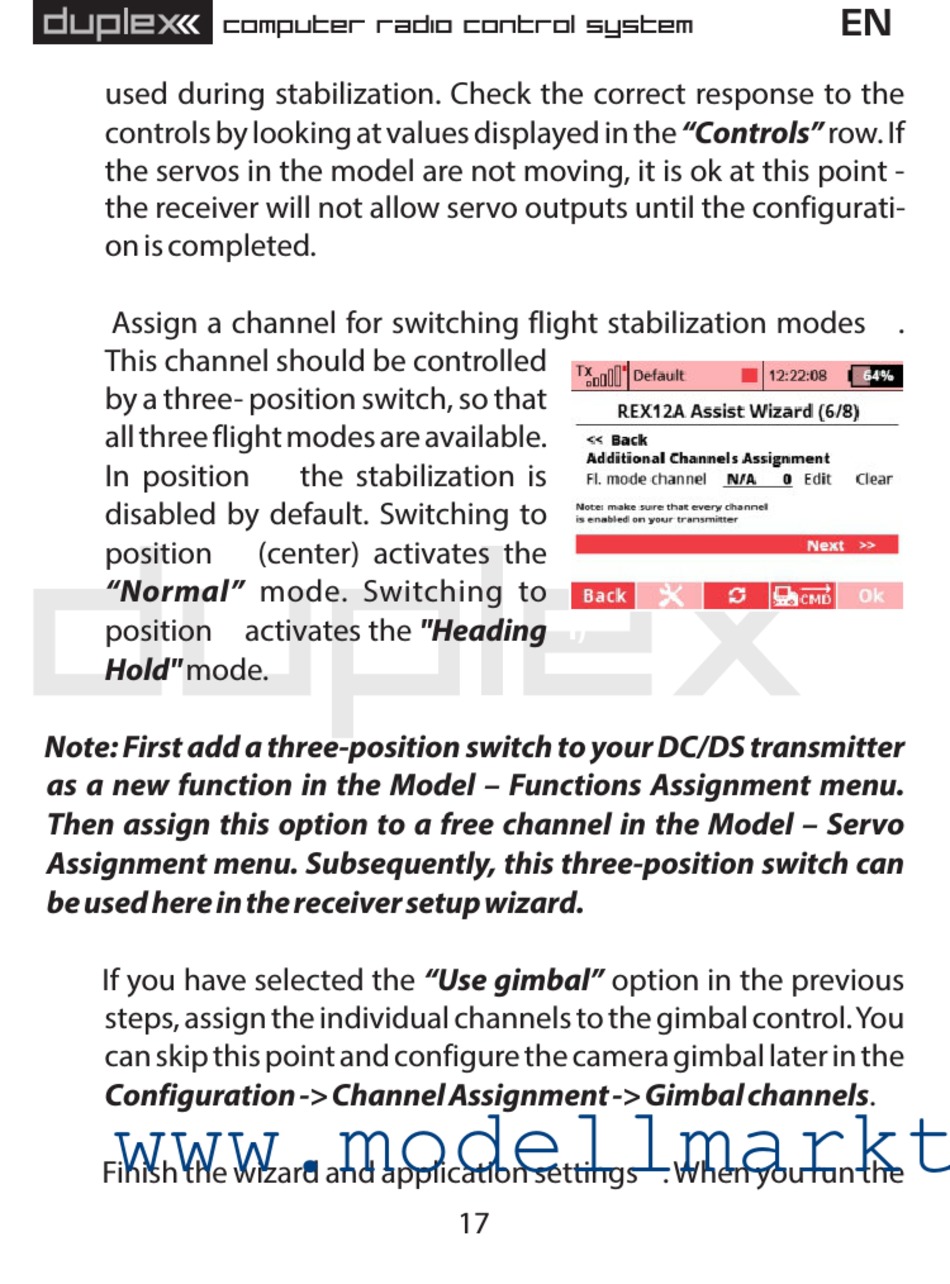

used during stabilization. Check the correct response to the
controls by looking at values displayed in the "Controls" row. If
the servos in the model are not moving, it is ok at this point -
the receiver will not allow servo outputs until the configurati-
on is completed.
11. Assign a channel for switching flight stabilization modes .
This channel should be controlled
by a three- position switch, so that
all three flight modes are available.
In position
disabled by default. Switching to
position
"Normal" mode. Switching to
position activates the "Heading 3
Hold" mode.
Note: First add a three-position switch to your DC/DS transmitter
as a new function in the Model – Functions Assignment menu.
Then assign this option to a free channel in the Model – Servo
Assignment menu. Subsequently, this three-position switch can
be used here in the receiver setup wizard.
12. If you have selected the "Use gimbal" option in the previous
steps, assign the individual channels to the gimbal control. You
can skip this point and configure the camera gimbal later in the
Configuration -> Channel Assignment -> Gimbal channels.
www.modellmarkt www.modellmarkt
13. Finish the wizard and application settings . When you run the
1, the stabilization is
2 (center) activates the
i)
