5 .5 con n ec ti n g t h e m o d u l e s t o t he e l e c t r ode s

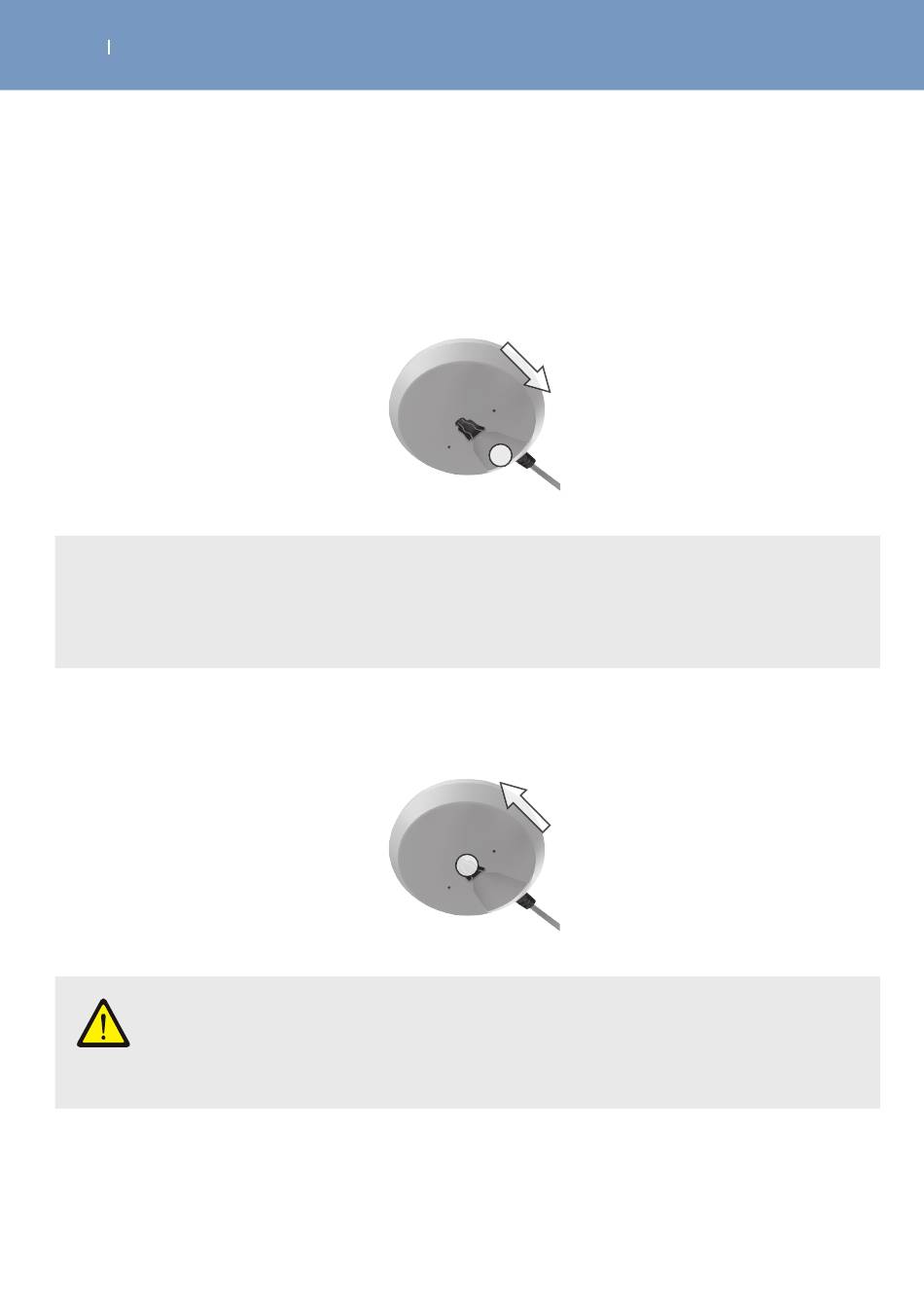

Once the electrodes are stuck to the skin of the patient, fix the pods by sliding them onto the electrode
snap until it clicks into place.
Not e
The insertion direction marked by:
- the On/Off button on the main pod
- a small vertical line on the housing of the other pod.
To remove the modules from the electrode simply make the opposite movement.
c au t io n!
Equipment damage -
Pulling the pods without respecting their pulling direction can damage the attachment
system.
A stimulation module consists of two pods. The waveform used in Revolution Wireless is a symmetrical
biphasic waveform (VMS). The polarity of the pods will therefore alternate between positive and negative.
A separate electrode must be connected to each of the two pods.
