Description Of The Device Components - Chattanooga Revolution Wireless User Manual

2 2 R E V O L U T I O N W I R E L E S S ™
3 . d e S c r i P t i O N O F t H e r e V O l u t i O N W i r e l e S S
3 .3 d es c r ipt io n o f t he d ev i c e c o mp on e n ts

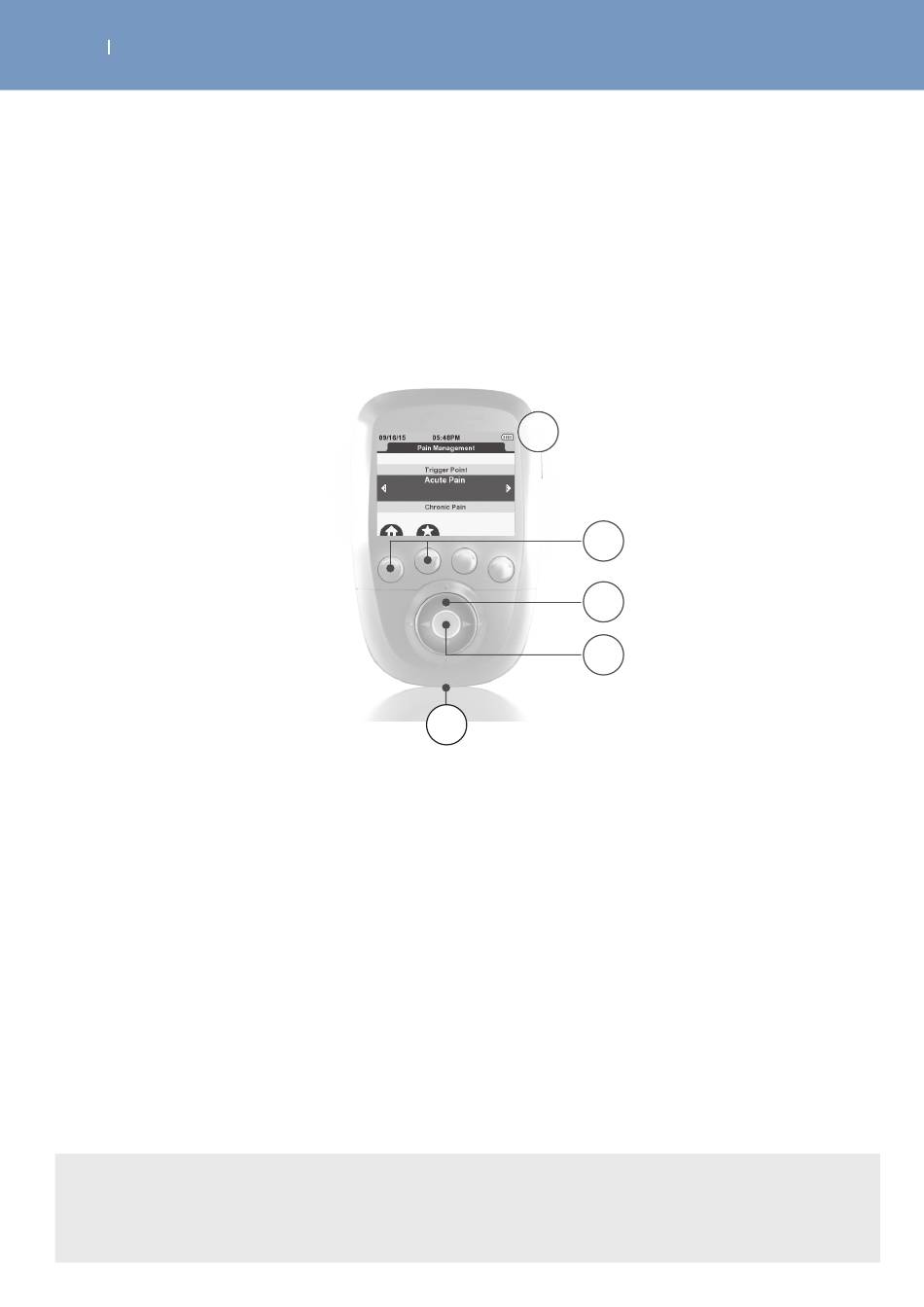

3 .3.1 rem o te co n t r o l
a. On/Off button (press briefly to switch on, press and hold for more than 2 seconds to switch off, while
browsing the lists press briefly to return to the main menu)
B. 2 multifunction buttons:
• Functions related to icons are located on the screen (e.g. info, main menu, placement of electrodes,
etc.)
• Selection of stimulation channel to increase or decrease the intensity level of stimulation
c. Navigation pad to scroll up/down or next/back during programming, or to increase/decrease the
intensity level of stimulation
d. Validation of pause button during stimulation, confirm a selection during program selection or change
a setting during programming
e. Port for the USB cable or the docking station connector
Not e
emergency stop function: By pressing the central button or the On/Off button on one of the
modules during stimulation, the device pauses.
A
B
C
D
E
E N
