Maxxus Multipress 8.1 Installation & Operating Manual page 8

Assembly Step 5

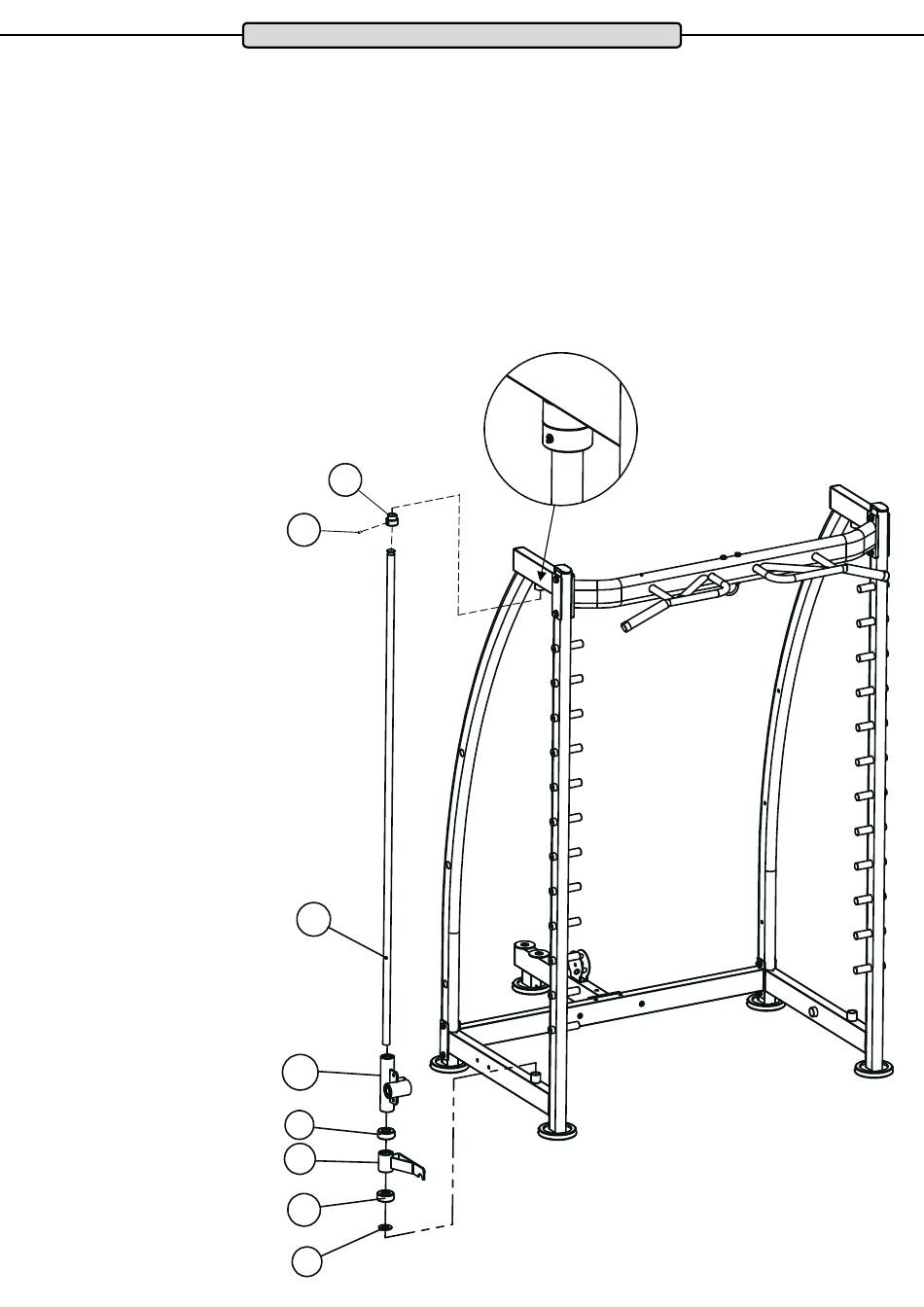

Place the components onto the end of the slide pipe (15) in the following order:
− Guide piece
− Rubber stop, round
− Safety bracket
− Rubber stop, round
− Rubber ring
Place the right guide pipe (15) in the lower mounting on the right side-frame. Slide the pipe holder (21)
onto the end of the right guide pipe (15) and then put this in the upper mounting on the right side-frame.
Slide the pipe holder up to the top and fix it with the headless scree (20).
Assembly - Multipress
