Assembly - Multipress
Assembly Step 2

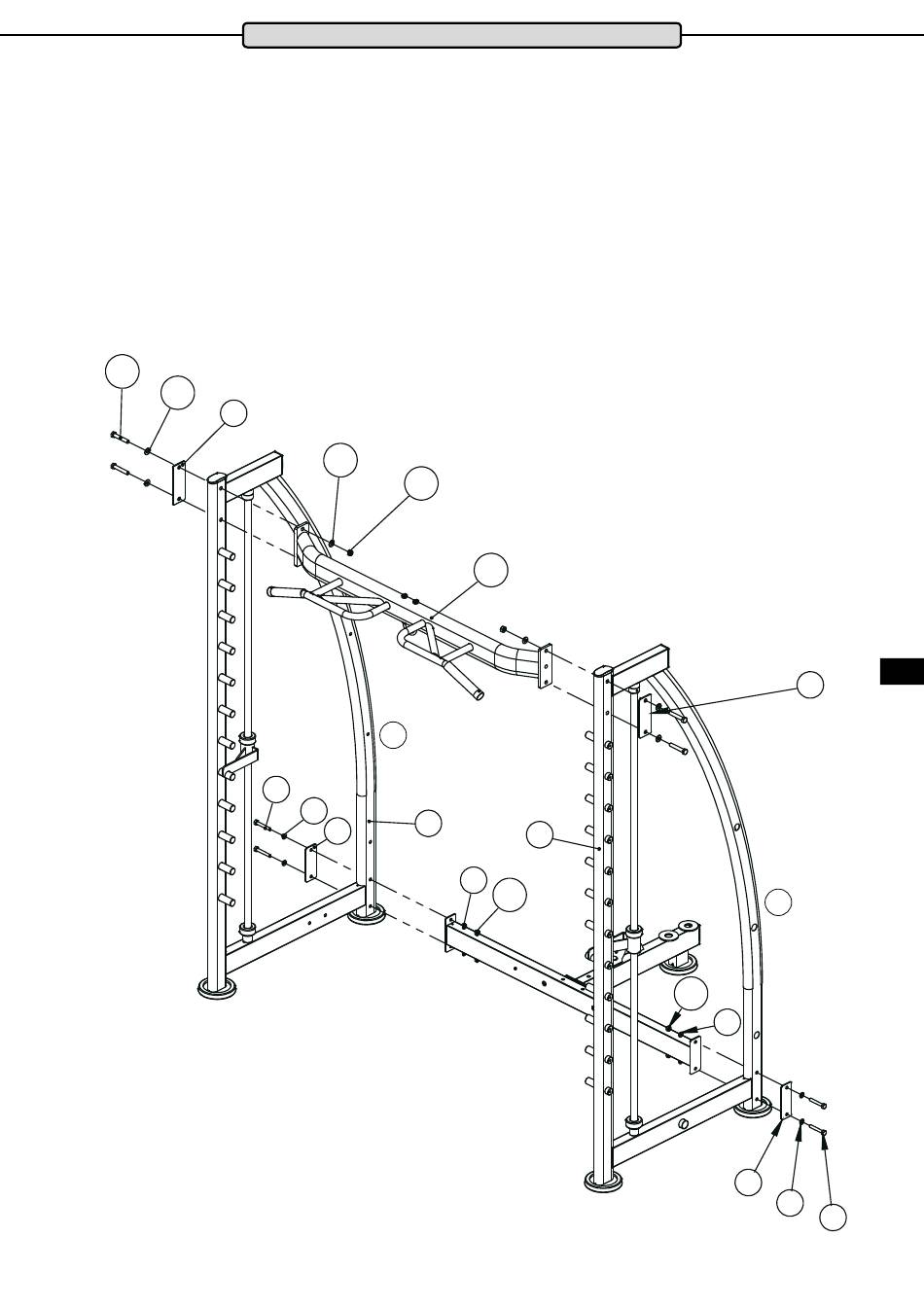

Connect the left side-frame (5) and right side-frame (6) to the top of the pull-up frame (14) at the front. To do this
use two screw sets (12+4) and one fixing plate (8) on each side.
Connect the rear left side-frame (2) and the right side-frame (3) at the bottom with the the T-frame (1+2) already
assembled in Assembly Step 1.
To do this use two screw and nut sets (10+9/11+9) and a fixing plate (7) on each side.
Note:
Please only tighten screws by hand until all component parts have been fitted together properly. Only after this
should all screws be tightened securely.
