Assembly - Multipress
Carefully unpack all delivered parts. Have someone there to help you as some of the training device parts are
bulky and heavy.
Check that all the parts and fixing materials (screws, nuts, etc.) have been delivered.
Assemble the parts carefully as any damages or defects occurring due to mistakes made at the time of assem-
bly are not covered by the warranty or guarantee. Therefore, read through the assembly instructions carefully
before you start assembling, follow each assembly step exactly as described and keep to the correct sequence
of assembly as instructed.
Assembly of the training device must be carried out thoroughly by an adult person only.
Assemble the training device in a location which is level, clean and clear of obstructions. 2 people are required
to carry out the assembly.
Please be aware a possible risk of injury at the time of assembly and at each time of using this device exists.
For this reason, always be careful and thorough in your actions when assembling this device.
Make sure that the parts necessary for each stage of assembly are only hand tightened together and only tight-
en parts completely when all parts have been fitted together perfectly.
Training can only start when the training device has been fully assembled.
CAUTION: all necessary screws, nuts and washers required to assemble this training device are de-
livered pre-assembled. Please loosen the fixing materials before each assembly step and follow the
instructions as shown in the drawings and descriptions and then tighten up the fixing materials again
afterwards.

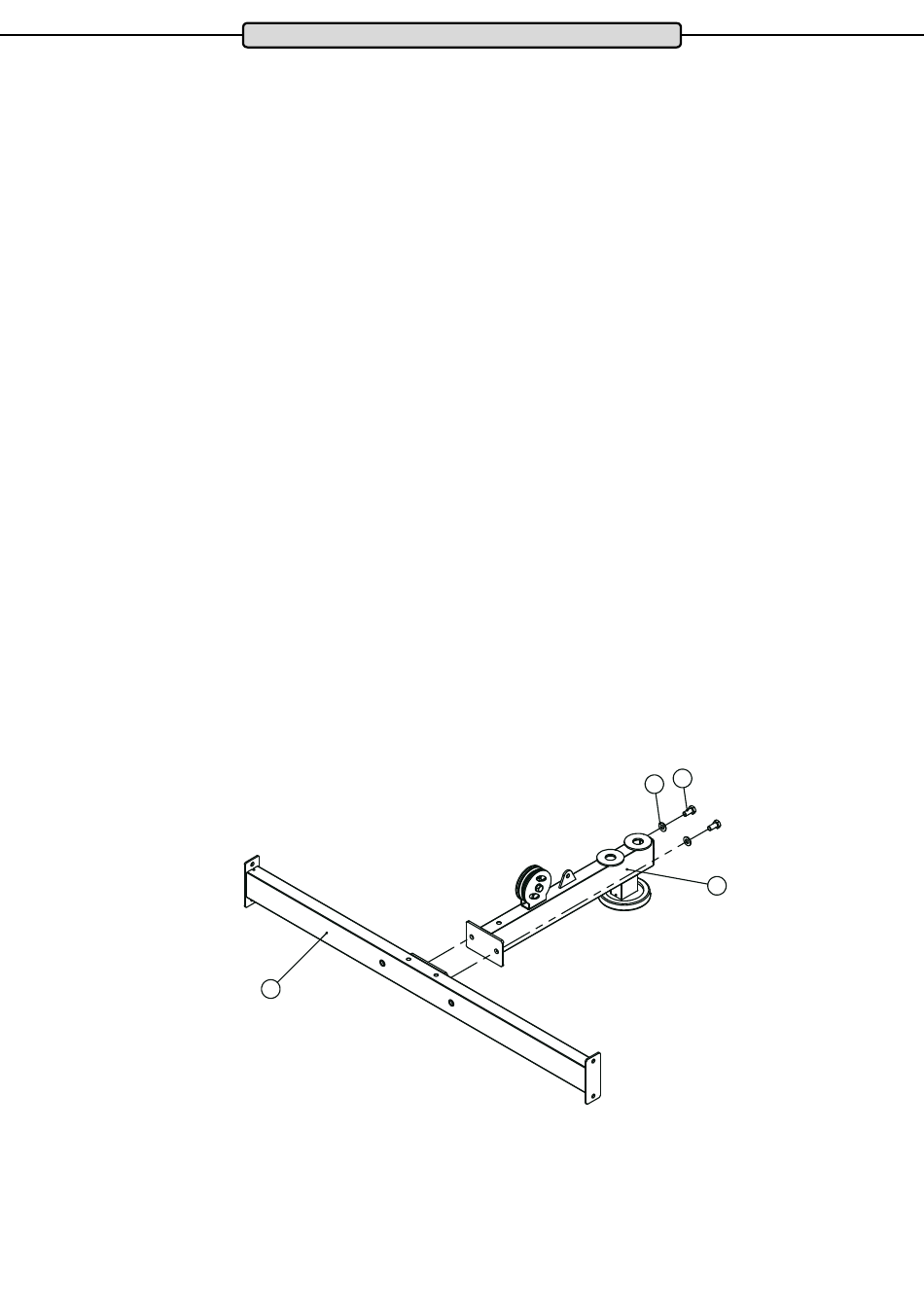

Assembly Step 1
Attach the rear stand (2) with the cross-pipe (1)
To do this use two screw sets (3+4)
3
4
2
1
