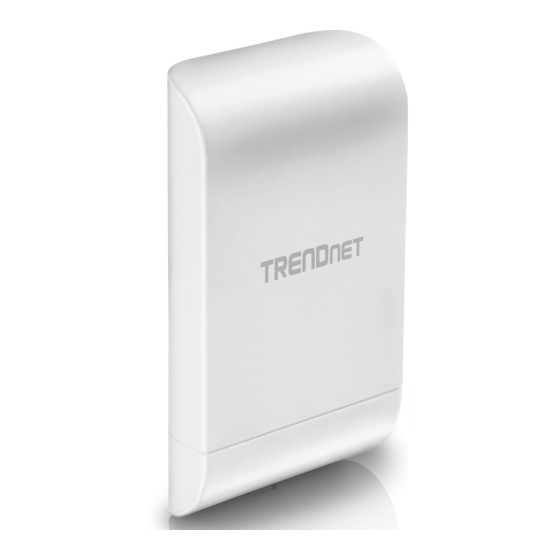

Quick Installation Guide
TEW-740APBO

Advertisement

Table of Contents
loading

Related Manuals for TRENDnet TEW-740APBO

Summary of Contents for TRENDnet TEW-740APBO

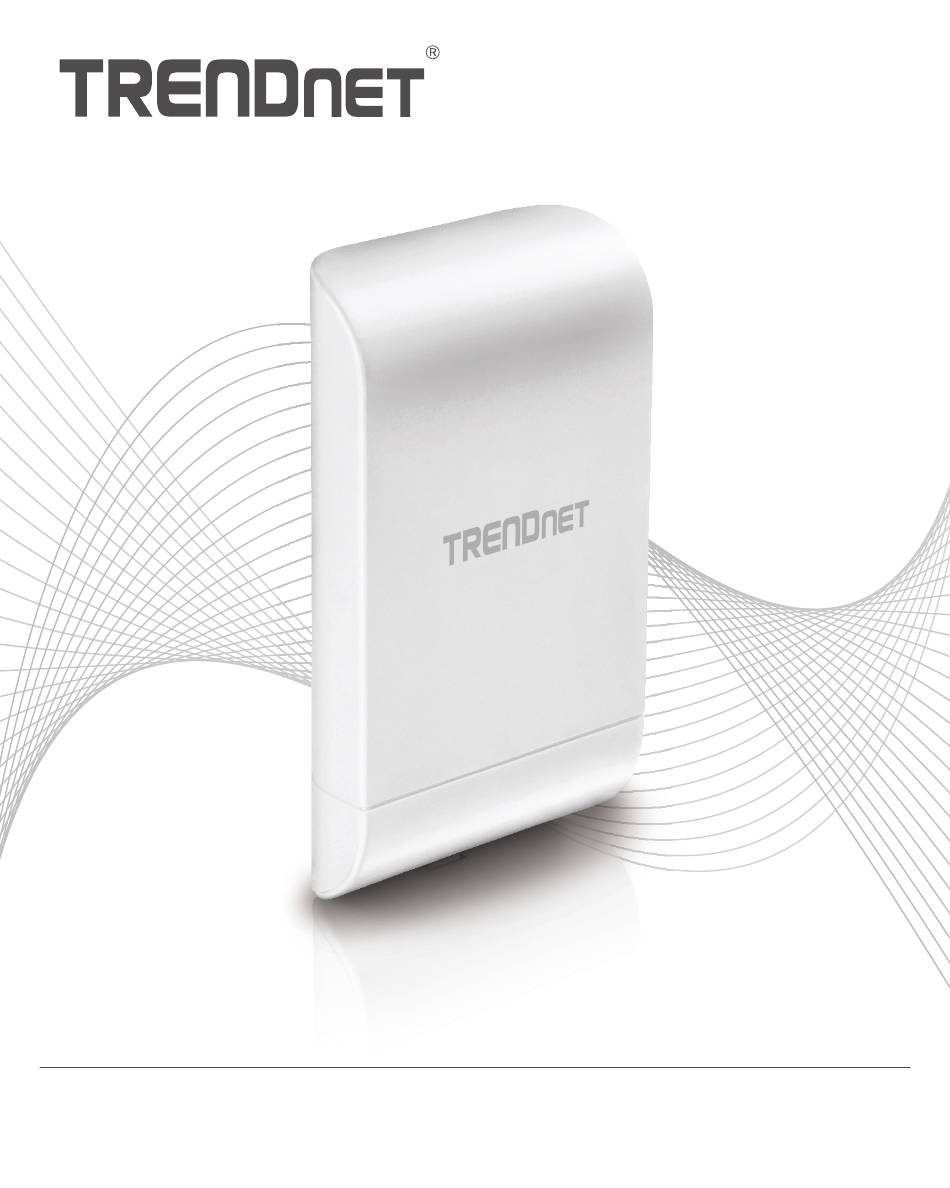

  • Page 1 Quick Installation Guide TEW-740APBO...
  • Page 2 Table of Content 1 English 1. Before You Start 2. Hardware Configuration 3. Hardware Installation...
  • Page 3 Note: The TEW-740APBO does not support IEEE 802.3at/af PoE standards. You must use the proprietary Power over Ethernet injector that is supplied with the TEW-740APBO. This installation guide will walk you through the installation and configuration of two TEW-740APBO access points to establish a wireless point to point bridge using WDS (wireless distribution system).

  • Page 4: Hardware Setup And Configuration

    Ÿ The initial configuration should be completed in a testing environment with two TEW-740APBO access points approximately 15 ft. (5 m) apart from one another with the front of the access points directly facing each other. Ÿ Configure and connect the access points before mounting.
  • Page 5 Pull and hold tab 2. Write down the MAC address (WiFi MAC) of the TEW-740APBO #1 access point. The MAC address (WiFi MAC) can be found on the inside of the device cover where the Ethernet LAN ports are located (shown below).
  • Page 6 3. Remove the tab on the far left by gently bending it back and forth until the tab is removed. This will create the opening for a RJ-45 network cable to be routed through. 4. Using a network cable, connect one end of the cable to the LAN (PoE) port and push the cable into the cable guide on the far left, then through the opening that was created in the previous step.
  • Page 7 5. Connect the other end of the network cable to the P+DATA OUT port on the included PoE injector. 6. Using another network cable, connect one end to the 10/100 DATA IN port on the included PoE injector. 7. Connect the other end of the network cable to your computer's Ethernet port. 8.
  • Page 8 12. Open your web browser and type the IP address of the access point in the address bar, then press Enter. The default IP address is 192.168.10.100. 13. When prompted, login to the browser configuration page using the default user name and password settings.

  • Page 9: Mode Setup

    15. Under Administrator Password, change the default administrator password by typing in your new password in the fields provided and then click the Save button at the bottom of the page. Save Reboot 16. After the device saves changes and reboots, in the top menu, click on the System and click on Mode Setup.

  • Page 10: Wds Mode

    17. Click on the Mode field and click on WDS Mode. Then click Save & Reboot and when prompted to change settings, click Yes to reboot the device and apply the changes. WDS Mode Save & Reboot 18. In the top menu, click on System and click on VLAN Setup. System VLAN Setup 19.
  • Page 11 Netmask 255.255.255.0. 21. Click on the Wireless tab and select Radio 0 Basic Setup. Make sure Channel 1 is selected and click Save. Note: When configuring TEW-740APBO #2, the wireless channel must be the same as TEW-740APBO #1. Wireless Radio 0 Basic Setup...

  • Page 12: Wds Setup

    23. Click Enabled for the WDS Setup and under Authentication, select AES. Enter a WDS PassPhrase (8-63 alphanumeric characters). Note: When configuring TEW-740APBO Unit #2, the WDS AES Passphrase must be the same as TEW-740ABPO #1. 24. Under WDS Client Setup, check the first entry and enter the WiFi MAC address of TEW-740APBO #2.
  • Page 13 1. In Step 19 and 20, under IP Setup, enter the IP Address 192.168.10.51 and Netmask 255.255.255.0. Then click Save. 2. In Step 24, under WDS Client Setup, enter the WiFi MAC address of TEW-740APBO Unit #1. Then click Save.
  • Page 14 1. Leave your computer connected to TEW-740APBO #2 and keep the web management interface open. 2. Make sure both TEW-740APBO #1 and TEW-740APBO #2 access points are powered on approximately 15 ft. (5 m) apart from one another with front of access points directly facing each other.

  • Page 15: Network Utility

    Network Utility. Utility Network Utility 4. In the IP/Domain field, enter the IP address of TEW-740APBO #1, 192.168.10.50, then next to Times, click Ping. 5. Ping replies and 0% packet loss will indicate as successful point to point bridge connection between the TEW-740APBO #1 and #2.

  • Page 16: Ground Wire And Pole Mount Installation

    3. Ground Wire and Pole Mount Installation 1. Locate the grounding point located in the bottom section of the enclosure. Using a Phillps screwdriver, remove the grounding point screw (counter clockwise) and attach the included grounding wire to the grounding point screw. Reattach the ground screw (clockwise) along with the grounding wire.
  • Page 17 2. Re-install the cover by lining up the guides into the notches as shown and push the cover down until the cover clips in and is secure. 3. Insert the included fasteners through the holes located at the back of the access point. 4.

  • Page 18: Completed Installation Reference

    Completed Installation Reference Internet Modem Router Building 1 Building 2...
  • Page 19 10 dBi Wireless N300 Outdoor PoE Preconfigured Point-to-Point Bridge Kit TRENDnet Trade Name: TRENDnet hereby declare that the product is in compliance with the essential requirements and other relevant provisions under our sole responsibility. Safety EN 60950-1: 2006 + A11: 2010 + A12: 2011 + A2: 2013 EN 301 489-1 V1.9.2: 09-2011...
  • Page 20 каждого продукта на сайте компании TRENDnet. Garantia Limitada A TRENDnet garante seus produtos contra defeitos de material e mão de obra sob condições normais de uso e serviço. Os períodos de garantia específicos estão listados em cada uma das páginas dos respectivos produtos no site da TRENDnet.
  • Page 21 Product Warranty Registration If you have any questions regarding the product Please take a moment to register your installation, please contact our Technical Support. product online. Go to TRENDnet’s website at: Toll free US/Canada: 1-866-845-3673 www.trendnet.com/register Regional phone numbers available at www.trendnet.com/support...
