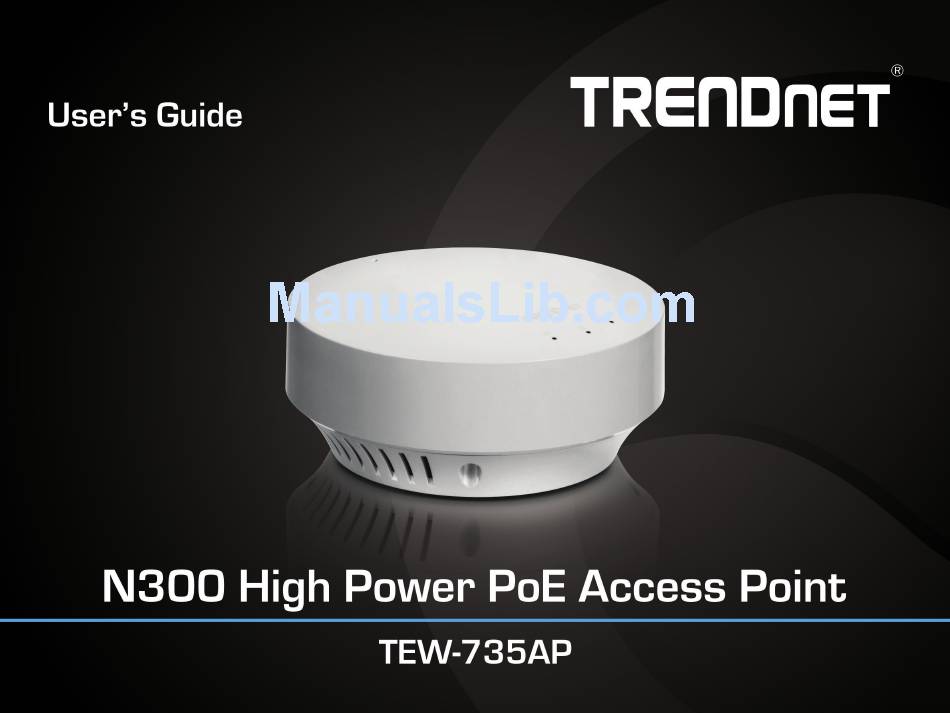

TEW-735AP User's Guide

Table of Contents

Need help?

Do you have a question about the TEW-735AP and is the answer not in the manual?

Questions and answers

Summary of Contents for TRENDnet TEW-735AP

Page 2: Table Of Contents
Wireless Performance Considerations �� 5 Operation Modes ��5 Access Point �� 5 WDS Bridge �� 5 WDS AP �� 5 Universal Repeater�� 5 Application Diagram ��6 System configuration ��7 System Management and Default Settings �� 7 © Copyright 2013 TRENDnet. All rights reserved.
Page 3: Product Overview

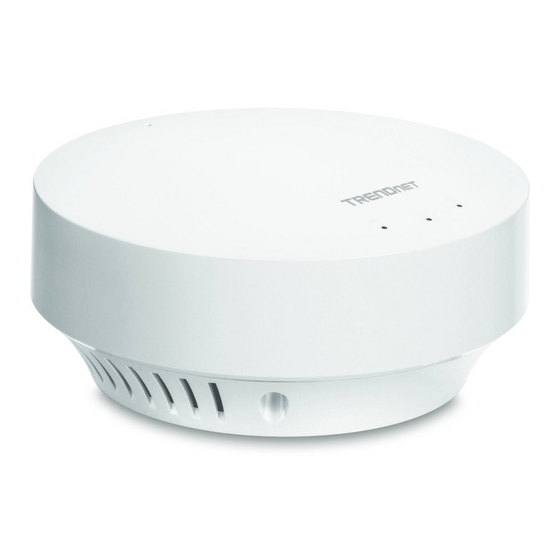

Product Overview Product Overview Features TRENDnet’s plenum rated business class N300 High Power PoE Access Point, model TEW-735AP, greatly increases wireless coverage as compared to standard access points. A variety of installation scenarios are supported with Access Point, WDS AP, WDS Bridge, and Repeater modes.
Page 4: Front Panel
Power Wireless Network Connectors Reset Button • Push and hold for 2 seconds to reset TEW-735AP • Push and hold for more than 10 seconds to reset DC Power 12V DC 1A 10/100 PoE Port configuration to factory default (Optional)
Page 5: Product Preset Information
There are two preset labels that come with the package. The first label The mounting accessories are provided for easier hardware installation, is located on plastic wrapping of the TEW-735AP. The second label is including two sets of T-Bar clippers, two sets of screws, and a set of located on the bottom of the TEW-735AP.
Page 6: Hardware Installation ��4 Rohs
Two additional bronze screw holes are provided for T-Bar mounting. between mounting points is 2 3/4” (7cm). Use two P2.6 screws to secure the TEW-735AP to the T-Bar clip and then clip on the T-Bar. © Copyright 2013 TRENDnet. All rights reserved.
Page 7: Wireless Performance Considerations
Make sure all the settings of the TEW-735AP match the wireless access points you want to repeat, including the SSID, Adjust the wireless power setting on your AP if you have more than one AP channel, and wireless encryption settings.
Page 9: Log-In System Management For The First Time
System configuration System Management and Default Settings If you have a brand new TEW-735AP, or if you just reset the TEW-735AP Search for available wireless connections in your computer’s to factory defaults by pressing and holding reset button for over 10 network settings.
Page 10 The TEW-735AP login page will again with your new password. appear. * If you connected to the TEW-735AP wirelessly, Make make sure you are still connected to the TEW-735AP after it reboots. Enter the administrator login information (The default user name is...
Page 11: Setup Wizard
The management subnet. You can leave it on to access the setup wizard. The following screen will appear. Enter a default if you have only one TEW-735AP, but you have to change the IP new administrator password and then click Next to continue.
Page 12: Status
TEW-735AP User’s Guide System Configuration Status The Main status page shows the TEW-735AP’s basic information. WLAN Settings Channel : Shows the wireless channel currently in use SSID_1 - 4 : Shows current Service Set Identifier is currently in use. This SSID is human readable and performs as ESSID to setup wireless groups.
Page 13 System Configuration IPv6 Wireless Client List This page shows the TEW-735AP’s IPv6 link local address. You can This page shows all wireless clients connected to the TEW-735AP. manage the TEW-735AP using this IPv6 link local address if your computer is IPv6 enabled and is in the same broadcast domain. Put a pair of brackets around your IPv6 address to visit the management site.
Page 14 Save : Click this button to save the log to your computer Clear : Click this button to clear up the log Refresh : Click this button to refresh the log © Copyright 2013 TRENDnet. All rights reserved.
Page 15: System
In this operation mode, the TEW-735AP connects ONLY to known as wireless stations (STAs), can wirelessly associate other WDS (Wireless Distribution System) enabled devices with the TEW-735AP and connect to the Internet via the as a backbone bridge. Ethernet port.
Page 16 TEW-735AP User’s Guide System Configuration IP Settings The TEW-735AP has a static IP (192.168.10.100) set for management purposes. You can change this IP address to fit your network plan or manage multiple TEW-735AP. You can also set TEW-735AP to DHCP client to accept an IP dynamically.
Page 17 Spanning Tree The TEW-735AP is equipped with a DHCP server to assign IPv4 The TEW-735AP is designed for end point access as well as backbone addresses dynamically. The assigning IP address range must be in the connection. To avoid network looping, you can enable 802.1d Spanning subnet that was used in IP Settings.
Page 18: Wireless
Check Channel (for Auto Channel) specify how often the Time : TEW-735AP checks the channel status Apply : Click this button to apply the change Cancel : Click this button to abandon the change © Copyright 2013 TRENDnet. All rights reserved.
Page 19 WMM : Choose to Enable or Disable WMM. This is the Quality of Service (QoS) feature for prioritizing voice and video applications. Encryption : Choose between disable, WEP, WPA, WPA2, or 802.1x for your wireless security. © Copyright 2013 TRENDnet. All rights reserved.
Page 20 TEW-735AP User’s Guide System Configuration Encryption (Disabled) : Choosing Disable allows wireless clients Encryption (WEP) : WEP, Wire Equivalent Protection, to connect to the TEW-735AP without a provides basic wireless security password Authentication Type : Select Open System, Shared Key, or You can relay the authentication to auto�...
Page 22 RADIUS service shared secret to 0 and 2347. The default value is 2347 Shared Secret: authenticate this credential agent. Apply : Click this button to apply the change Cancel : Click this button to abandon the change © Copyright 2013 TRENDnet. All rights reserved.
Page 23 20 MHz and 40MHz channels or 2) fixed in 20MHz channels only. Preamble Type : Select a short or long preamble. For optimum performance, it is recommended to also configure the client device to the same preamble type. © Copyright 2013 TRENDnet. All rights reserved.
Page 24 Reset: Reset all entries Apply: Click to apply changes made Cancel: Click to cancel any new changes made� Description : Enter readable information about this client MAC Address : Enter the device’s MAC address © Copyright 2013 TRENDnet. All rights reserved.
Page 25 Reset : Click this button to abandon the change The TEW-735AP supports two types of WPS: WPS via Push Button and WPS via PIN code. If you want to use the Push Button, you have to push a specific button on the wireless client or in the utility of the wireless client to start the WPS pairing, and click the Start to Process button in this page under WPS via Push Button to start WPS pairing.
Page 26 WPS via PIN : Specify a PIN, which unique number that can be used to add the router to an existing network or to create a new network. Then click on the Start to Process button © Copyright 2013 TRENDnet. All rights reserved.
Page 27: Management
“lobbyfront”, you can access this AP by typing http://lobbyfront/ in Windows and log on to the management page. Default system name is “tew-735ap”. Idle Timeout Logout automatically after a period of idle. The default period is 10 minutes. © Copyright 2013 TRENDnet. All rights reserved.
Page 28 SSID. Different SSID should set to different VLAN ID. Enable Virtual LAN service and click Apply to save the changes. LAN VLAN MGMT is a special VLAN to manage TEW-735AP. Enabling management VLAN tagging will keep all services, for example DHCP server and client, in this VLAN.
Page 29 Trap Manager IP : Specify the IP address of the SNMP trap community Trap Community : Specify the name of SNMP trap community Apply : Click this button to apply the change Cancel : Click this button to abandon the change © Copyright 2013 TRENDnet. All rights reserved.
Page 30 Backup / Restore Settings Auto Reboot Settings This page allows you to save the current configurations. Click Save to Click on Apply, the TEW-735AP will go through the reboot process save your current configuration. automatically. To load configurations saved previously, click Browse �� to find configuration file and then click Upload�...
Page 31 To find out if there is a firmware upgrade available for your entries and schedules. device, please check your TRENDnet model and version using the link. http://www.trendnet.com/downloads/ Time Setup : Choose a source of time to synchronize with.
Page 32 To check your network connection, you can use the PING tool from your security reasons. Click Add to add a schedule rule entry. Select an entry TEW-735AP. Enter the IPv4 address you want to ping and click Start� and click Edit or Delete Selected to change the entry. Click Delete All The result will be showed in the terminal down below.
Page 33 If you want to access the action and then click Apply to save the changes. TEW-735AP from different computer, remember to logout of the web management page first. © Copyright 2013 TRENDnet. All rights reserved.
Page 34: Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. © Copyright 2013 TRENDnet. All rights reserved.
Page 35: Europe - Eu Declaration Of Conformity
5 GHz high performance RLAN equipment This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France and Italy where restrictive use applies. © Copyright 2013 TRENDnet. All rights reserved.
Page 36 Português Directive 1999/5/EC, 2006/95/EC, and 2009/125/EC. requisitos essenciais e outras disposições da Directiva 1999/5/CE, [Portuguese] 2006/95/CE e 2009/125/CE. Por medio de la presente TRENDnet declara que el TEW-735AP Español cumple con los requisitos esenciales y cualesquiera otras [Spanish] Slovensko TRENDnet izjavlja, da je ta TEW-735AP v skladu z bistvenimi disposiciones aplicables o exigibles de la Directiva 1999/5/CE, zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES,...
Page 37: Limited Warranty
RMA service must have the RMA number marked on the outside of return packages and look for the desired TRENDnet product to access to the GPL Code or LGPL Code. and sent to TRENDnet prepaid, insured and packaged appropriately for safe shipment.
