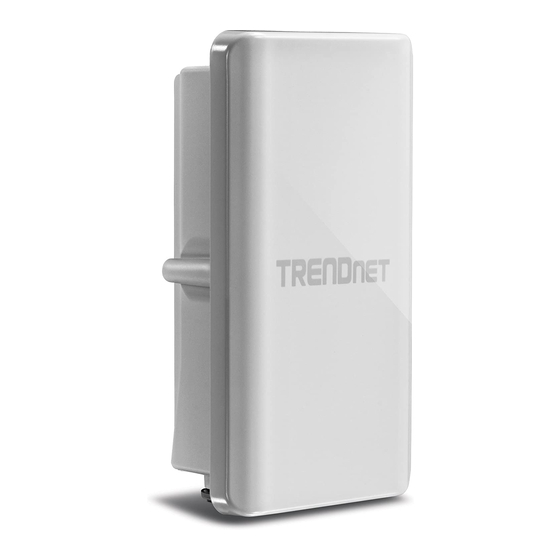

TRENDnet TEW-738APBO Quick Installation Manual

10 dbi outdoor poe access point
Hide thumbs Also See for TEW-738APBO:

Advertisement

Quick Links

Download this manual See also: User Manual

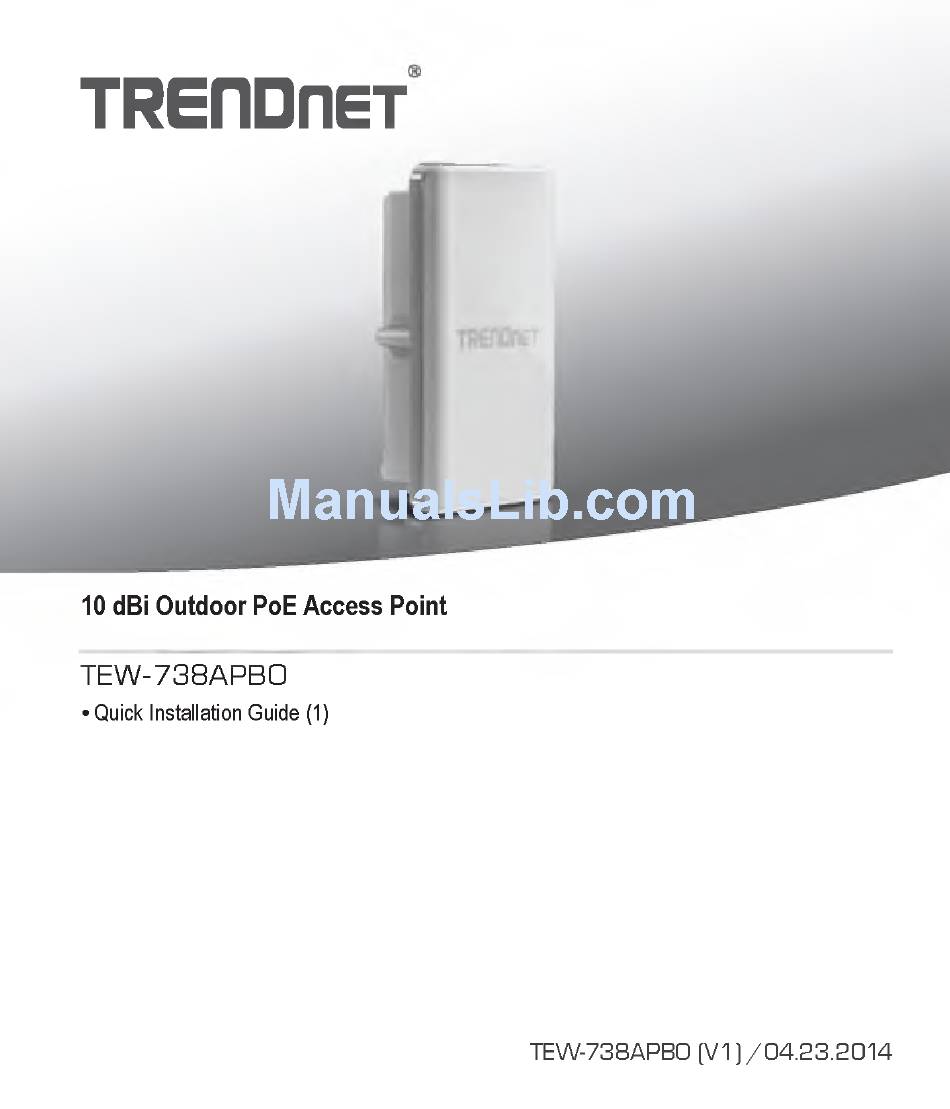

TREflDnET
10 dBi Outdoor PoE Access Point
TEW-738APBO
• Quick Installation Guide (1)
T E W -7 3 8 A P B O (V1 ] / 0 4 .2 3 .2 0 1 4

Advertisement

loading

Related Manuals for TRENDnet TEW-738APBO

Summary of Contents for TRENDnet TEW-738APBO

  • Page 1 TREflDnET 10 dBi Outdoor PoE Access Point TEW-738APBO • Quick Installation Guide (1) T E W -7 3 8 A P B O (V1 ] / 0 4 .2 3 .2 0 1 4...

  • Page 2: Installation Requirements

    • A network switch or router with an available network LAN port • 2 x RJ-45 network cables (sold separately) • Phillips screwdriver (sold separately) Note: • The TEW-738APBO does not support IEEE 802.3af. You must use the proprietary Power over Ethernet injector that is supplied with the TEW-738APBO.
  • Page 3 Note: The default IP address of the TEW-738APBO is 192.168.10.100. To configure the TEW-738APBO, your network adapter must have an IP address within the 192.168.10.x subnet (e.g. 192.168.10.50). Please refer to the Appendix in the User's Guide for more information.
  • Page 4 The TEW-738APBO will be setup with the following IP address assignment: TEW-738APBO #1 IP Address: 192.168.10.50 IP Netmask (Subnet Mask): 255.255.255.0 IP Gateway (Gateway IP Address): 192.168.10.1 Primary DNS: 192.168.10.1 TEW-738APBO #2 IP Address: 192.168.10.51 Subnet Mask: 255.255.255.0 Gateway IP Address: 192.168.10.1 Primary DNS: 192.168.10.1...
  • Page 5 1. Connect one end of a network cable into TEW-738APBO #1. 2. Connect the opposite end of the network cable to the P+DATA OUT port on the Power over Ethernet Injector. 3. Connect one end of another network cable to the 10/100 DATA IN port on the Power over Ethernet Injector.
  • Page 6 10. Confirm the new password. 20. Click System " Operating Mode. 11. Click Save. 21. Select WDS Mode and then click Save & Reboot. 12. Please wait while the access point reboots. S y s t e m is r e s t a r t i n g , 22.
  • Page 7 Phase 3: Confirm Connectivity 1. Leave TEW-738APBO #2 connected to your computer. 2. Connect TEW-738APBO #1 to a LAN port of a router on your network. 3. To verify connectivity, run your computer's command prompt and ping TEW-738APBO #1's assigned IP address from your computer.

  • Page 8: Hardware Installation

    4. Insert one end of an Ethernet cable into the sealing nut. 8. Connect the Ethernet cable to the PoE port on the rear of the TEW-738APBO. 5. Insert the Ethernet cable into the seal. 9. Using your hand, screw the main body counter clockwise to secure it to the TEW-738APBO.
  • Page 9 Point-to-Point (WDS Bridge) Installation TEW-738APBO #1 TEW-738APBO #2 Building...
  • Page 10 1. Refer to the above diagram. 2. Mount the TEW-738APBOs in your desired location. See Pole Mounting the TEW-738APBO for mounting instructions. 3. Connect the TEW-738APBOs to their respective network. 4. Confirm that the TEW-738APBOs are facing each other. 5. Verify that the status LED indicators on both TEW-738APBOs are fully functional: PWR [Power](Greeii / Solid), LAN (Blinking / Green), Wireless Signal Strength (Blinking / Green).
  • Page 11 Pole mounting the TEW-738APBO Note: The pole mounting clamp supports poles with a maximum diameter of 78 mm (3.07 inches). 3. Secure the TEW-738APBO to the pole 1. Align the mounting bracket with the holes on mounting bracket using the nuts and washers the the unit and secure it with the screws and provided.

  • Page 12: Declaration Of Conformity

    Declaration of Conformity TREriDnET Company Information: Com pany Name: TRENDnet, Inc. Com pany Address: 20675 Manhattan Place Torrance, CA 90501 Product Information: Product Description: 10 dBi Outdoor PoE A ccess Point Model Number: TEW -738APBO Brand Name: TRENDnet Technical Standards: EN 300 328 V l.7 .1...
  • Page 13 Public License ("GPL") or GNU Lesser General Public License ("LGPL"). These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of the developers. TRENDnet does not provide technical support for these codes. The details of the GNU GPL and LGPL are included in the product CD-ROM. Please also go to (http://www.gnu.org/licenses/gpl.txt) or (http://www.gnu.org/licenses/lgpl.txt) for specific terms of each license.
  • Page 14 General Public License) ou ao LGPL (GNU Lesser General Public License). Estes codigos sao distribuidos SEM GARANTIA e estao sujeitos aos direitos autorais dos desenvolvedores. TRENDnet nao presta suporte tecnico a estes codigos. Os detalhes do GNU GPL e do LGPL estao no CD-ROM do produto. Favor acessar http://www.gnu.org/licenses/gpl.txt ou http://www.gnu.org/licenses/lgpl.txt para os termos especificos de cada licenga.
  • Page 15 TREnDnET Lim ited W arranty T R E N D n e t w arrants its products against d efects in m aterial and w orkm anship, u nd er norm al use and service, fo r the follow ing length o f tim e from the date o f p urchase.
  • Page 16 2 0 6 7 5 Manhattan Place, Torrance, CA 90501. USA Copyright © 2014. All Rights Reserved. TRENDnet. T E W -7 3 8 A P B O [V 1 ] / 0 4 . 2 3 . 2 0 1 4...
