IR Camera

The IR camera can be connected to the micro USB slot on the instrument's top panel. The IR camera is not a
part of the standard VA5 instrument set. You can order it at your vendor.

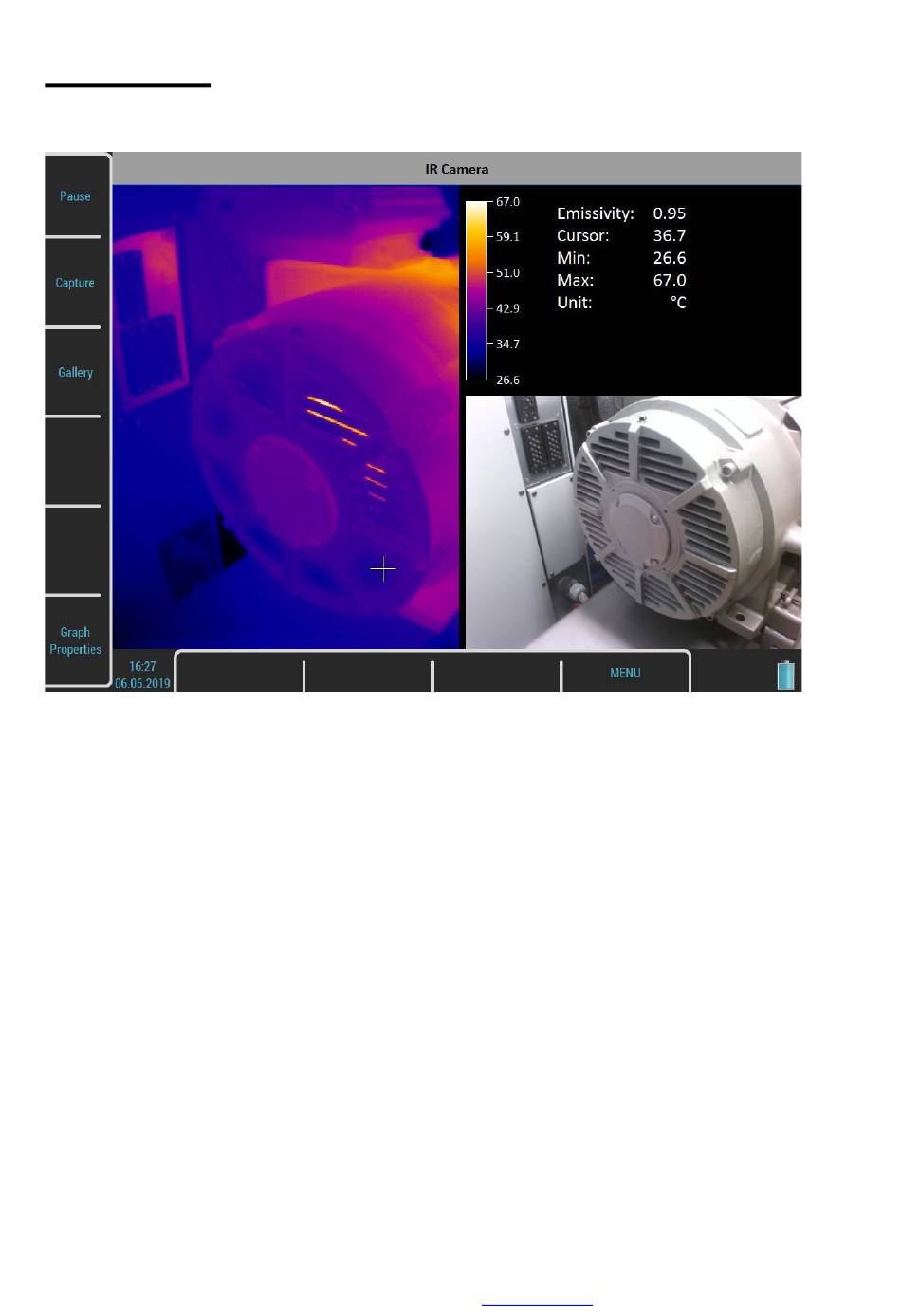

The image from IR camera takes place in the left half of the screen. The image of nearly same scene from the
optical camera is in the bottom right corner. The information panel is in the top right corner. You can see the
minimal and maximal temperature and the temperature of the point under the cursor. Use arrows or tap the
touch screen to change the cursor position.
Cursor
Use arrow buttons or tap the IR image to move the cursor cross. The temperature of the point under the cursor
is written in the table.
Buttons
Pause / Run
Pause and then run again the scene.
Capture
Take the image of the scene. Two files will be stored in the images folder. One file stores the raw temperatures
from the IR camera in the special thm format. You can work with this file in the DDS software. Second file is the
jpg picture of the screen. You can watch the picture but you are not able to make further analysis.
Gallery
Open a Gallery so as you can watch taken pictures.
