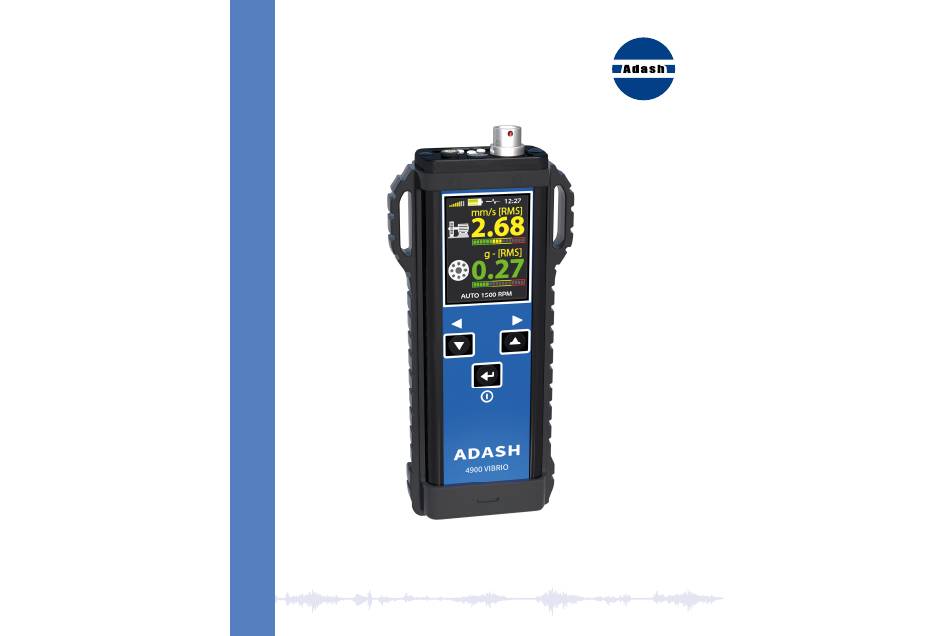

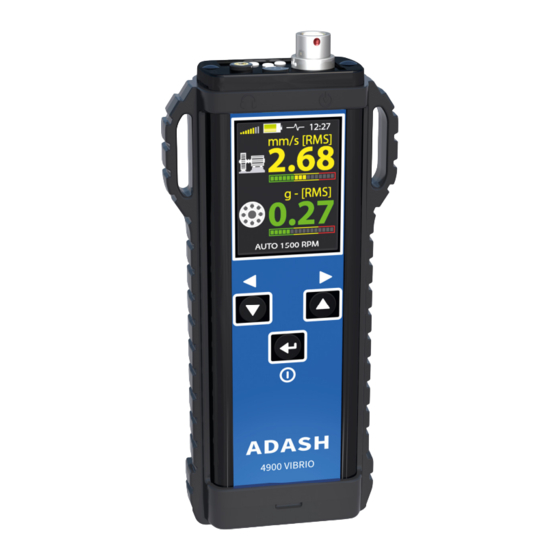

- Page 1 A4900 Step by Step MASTER THE LANGUAGE OF YOUR MACHINERY...
-
Page 2: Table Of Contents
Content Basic information ..............4 Switch on/off ................5 Basic control ................6 Basic menu ................7 Measurement screens ............. 8-9 Saving data from measurement screen ......10 Light ..................11 Memory - Route measurement ........12-13 Setup ..................14 Volume ................... -
Page 3: Basic Information
Basic Information Switch ON/OFF Top Panel LED stroboscope ACC ICP® - input IR no-contact temperature sensor Phones output Buttons Press the Enter button to switch on the device Arrow buttons Firmware version Enter button Serial number Filters Sensor sensitivity Batteries Fast charging Slow charging Fully charged... -
Page 4: Basic Control
Basic Control Basic Menu Arrow Buttons To open the Basic menu Then press the left > press the Enter button Arrow button to open switch between the measurement modes > (on any measurement the Menu select the right or left item from the menu at the bottom screen) >... -
Page 5: Measurement Screens
Measurement Screens Measurement Screens Overall values - RMS Overall values - PEAK Frequency bands Displacement Automatic speed detection (the speed can also be set manually) RMS vibration values: Peak vibration values (0-P): RMS vibration values: Overall RMS and Peak displacement: 10 - 1 000 Hz in mm/s (ips) 10 - 1 000 Hz in mm/s (ips) 0.5 - 1.5 kHz in g... -
Page 6: Saving Data From Measurement Screen
Saving Data From Measurement Screen Light (Vibrio M only) Used memory SAVE Press the Enter button on any Press the Enter button [SAVE] measurement screen Torch Strobo <- +> Press any button to switch off the Torch mode Select the Point ID (1-250) with [ID] go back to the Point ID setting the Arrow buttons [ESC] go back to the measurement... -
Page 7: Memory - Route Measurement
Memory - Route Measurement (Vibrio M only) Select point ROUTE Confi rm Start point measuring Firstly the route must be loaded to Go to MENU/MEMORY/ROUTE Use the Arrow buttons to switch [BCK] go back to point selection the device from the DDS software between the points in route VIEW ... -
Page 8: Setup
Press the Enter button to confi rm Speed Auto Manual Alarms Adjust Adash (speed is required) brightness R13 (rigid, group 1 and 3) F13 (fl exible, group 1 and 3) ISO 10 816 R24 (rigid, group 2 and 4) F24 (fl exible, group 2 and 4) -
Page 9: Auto Save
Auto Save Auto Save (Vibrio M since 2022 only) (Vibrio M since 2022 only) Used memory Select <- +> measurement MENU Start Go to MENU AUTO SAVE Select the type of measurement Press the left Arrow button [MENU] Select the time interval for data saving [ESC] escape from the AUTO SAVE you want to save and press the (1-60 minutes, 0 is for the maximum... -
Page 10: Proximity Measurements
Prox for proximity option Displacement 1 - 1 000 Hz Spectrum 1 kHz or 2.5 kHz The A4900 Vibrio MP needs to be connected to a proximity sensor for proximity measurement! (The default sensor sensitivity is set to 7.87 mV/μm,... -
Page 11: Technical Specifi Cations
Technical Specifi cations 1 x ICP ® powered accelerometer Input: Input range: 60 g PEAK with standard 100 mV/g sensor (e.g. 600 g PEAK for 10 mV/g sensor, the sensitivity is editable in the unit) Measurements: Velocity RMS: 10 - 1 000 Hz [mm/s, ips] Velocity PEAK: 10 - 1 000 Hz [mm/s, ips] Acceleration RMS: 500 - 16 000 Hz [g] Acceleration Peak: 500 - 16 000 Hz [g]... -
Page 12: Notes
Notes Notes... - Page 13 Adash Hlubinska 1379/32 702 00 Ostrava Czech Republic tel.: +420 596 232 670 e-mail: info@adash.com www.adash.com © Adash 2022 MASTER THE LANGUAGE OF YOUR MACHINERY...
