Page 4: Product Overview
Featured with global-leading semiconductor technologies and communication control technologies, Ruijie EG series router is a data communication product developed by Ruijie Networks with independent intellectual property right. The EG series router is designed according to international standards, similar to the mainstream router products in the international market. - Page 5 Blinking green (0.5Hz): The device has started up, but is not connected to the Ruijie Cloud. Solid green: The device has started up, and is connected to the Ruijie Cloud. Blinking green (10Hz): The device is starting up/shutting down, or PoE overload occurs.
- Page 6 Blinking green (0.5Hz): The device has started up, but is not connected to the Ruijie Cloud. Solid green: The device has started up, and is connected to the Ruijie Cloud. Blinking green (10Hz): The device is starting up/shutting down. Solid green: the port is up.
- Page 7 Ruijie RG-EG Series Routers Hardware Installation and Reference Guide Product Overview Button Button Description Press reset button until the status LED blinks green at 10Hz to restore the Reset device to the factory default setting. The default management IP address is http://192.168.110.1.

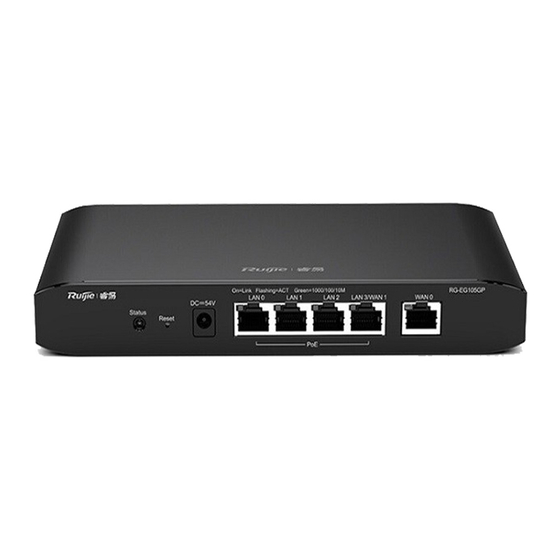

- Page 8 Ruijie RG-EG Series Routers Hardware Installation and Reference Guide Product Overview Figure 1-5 Front Panel of RG-EG105GW Figure 1-6 Back Panel of RG-EG105GW...
- Page 9 Blinking green (0.5Hz): The device has started up, but is not connected to the Ruijie Cloud. Solid green: The device has started up, and is connected to the Ruijie Cloud. Blinking green (10Hz): The device is starting up/shutting down. Solid green: the port is connected at 10/100/1000 Mbps.
- Page 10 Blinking green (0.5Hz): The device has started up, but is not connected to the Ruijie Cloud. Solid green: The device has started up, and is connected to the Ruijie Cloud. Blinking green (10Hz): The device is starting up/shutting down, or PoE overload occurs.
- Page 11 Ruijie RG-EG Series Routers Hardware Installation and Reference Guide Product Overview Press reset button until the status LED blinks green at 10Hz to restore the Reset device to the factory default setting. The default management IP address is http://192.168.110.1.
-
Page 12: Safety Precaution
2.2 Installation Environment Ruijie EG series router products are for indoor use only. To ensure normal operation and prolong their service life, the installation site must meet the following requirements: 2.2.1 Temperature/humidity requirements... - Page 13 Ruijie RG-EG Series Routers Hardware Installation and Reference Guide Preparation compromise the reliability and even service life of the device. The temperature/humidity requirements are shown below (detailed difference between products is described in Product Overview): Temperature Relative Humidity 0° C to 40° C (32° F to 104° F) 10% to 90% The temperature/humidity of working environment indicates the value measured at 1.5 m above the floor and 0.4 m...
-
Page 14: Installation Site
Ruijie RG-EG Series Routers Hardware Installation and Reference Guide Preparation 2.2.4 Anti-Interference The interference as mentioned herein refers to electromagnetic or electrical interference, and the anti-interference requirements are described below: Effective power grid interference control measures shall be taken against the power supply system. -
Page 15: Installing The Router
Ruijie RG-EG Series Routers Hardware Installation and Reference Guide Installing the Router 3 Installing the Router 3.1 Installation Flowchart Please take the following steps: Figure 3-1 Installation Flowchart 3.2 Mounting the Router Mounting the router refers to installing the device to the specified position. Upon completion of installation preparation, fix the router to the specified position. -
Page 16: Installing Power Cables
Do not place heavy things on the device. 3.3 Installing Power Cables The requirements of Ruijie EG series router products on AC power supply are described below (refer to Product Overview for detailed parameters): 100–240 V / 50/60 Hz. -
Page 17: Quick Configuration
Connect the AP device to the EG router via network cable. Power on the devices. The AP device broadcasts an SSID with a prefix starting with @Ruijie-m. Connecting to PC Connect the PC to the EG router via network cable. -
Page 18: Configuring Router
Ruijie RG-EG Series Routers Hardware Installation and Reference Guide Quick Configuration 4.3 Configuring Router To use the router, you need to properly configure the router as required. Refer to the relevant Web-based configuration guide for details about router configuration. -
Page 19: Troubleshooting
Ruijie RG-EG Series Routers Hardware Installation and Reference Guide Troubleshooting 5 Troubleshooting 5.1 Power Supply Refer to Product Overview for the normal state descriptions of LED indicators. If abnormity occurs, perform the following checks: Whether the power switch is turned on.
