Installing UPS module
Step 1
Step 2

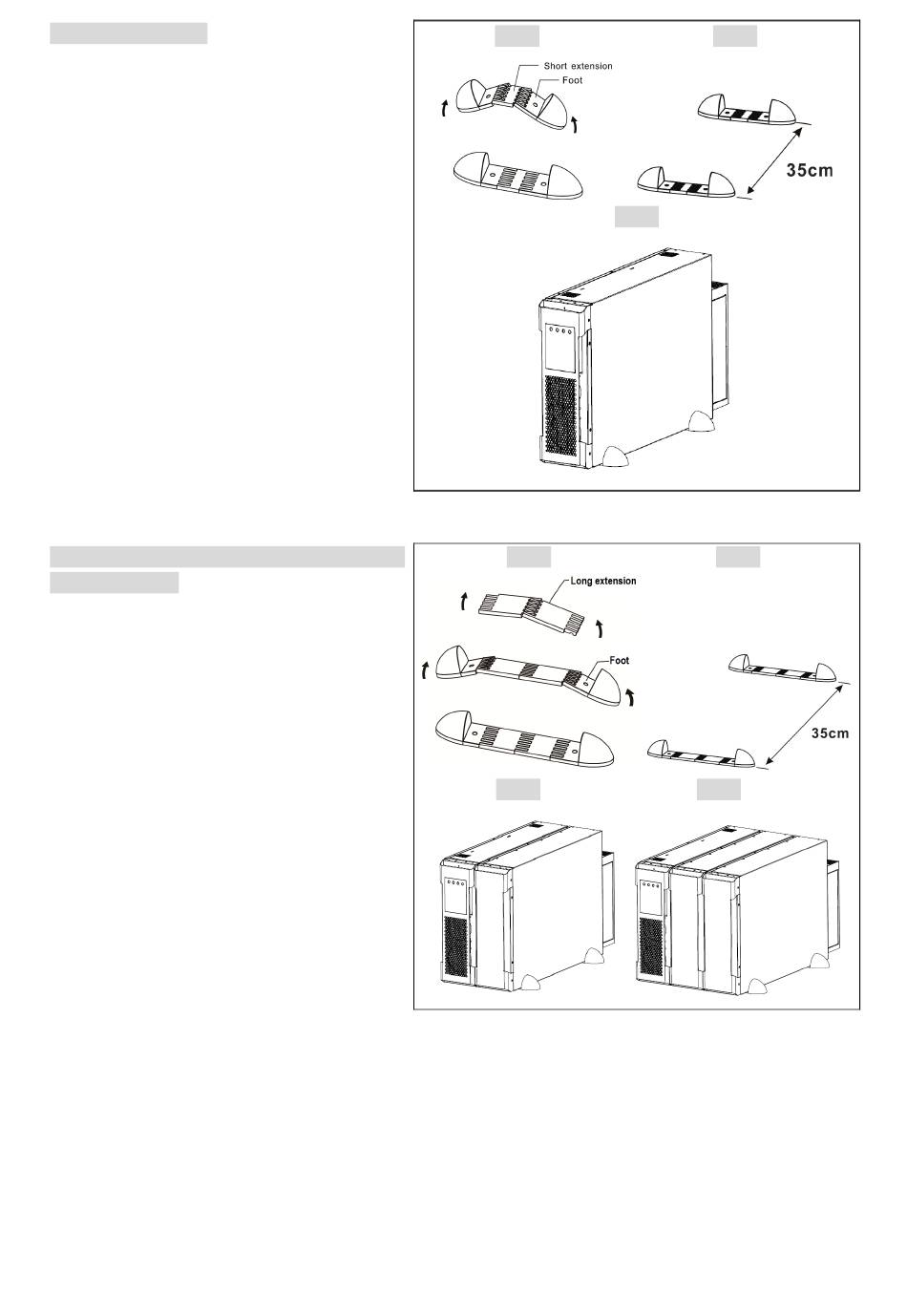

Assemble two feet and one short extension as
one tower stand shown in step 1. Align the two
stands approximately 35cm apart in step 2. Then,
put UPS module in the stands as shown in step 3.
NOTE: Make sure the connector box is firmly
attached to UPS back panel with screws.
Step 3
Installing UPS module and one battery pack or
Step 1
Step 2
two battery packs
Assemble two feet and two long extensions as
one tower stand shown in step 1. Align the two
stands approximately 35cm apart in step 2. Then,
put UPS module and battery pack in the stands as
shown in step 3.
If two battery packs are installed with UPS
together, please use three long extensions for
Step 3
Step 4
each tower stand. Then, put UPS module and two
battery packs in the stands as shown in step 4.
