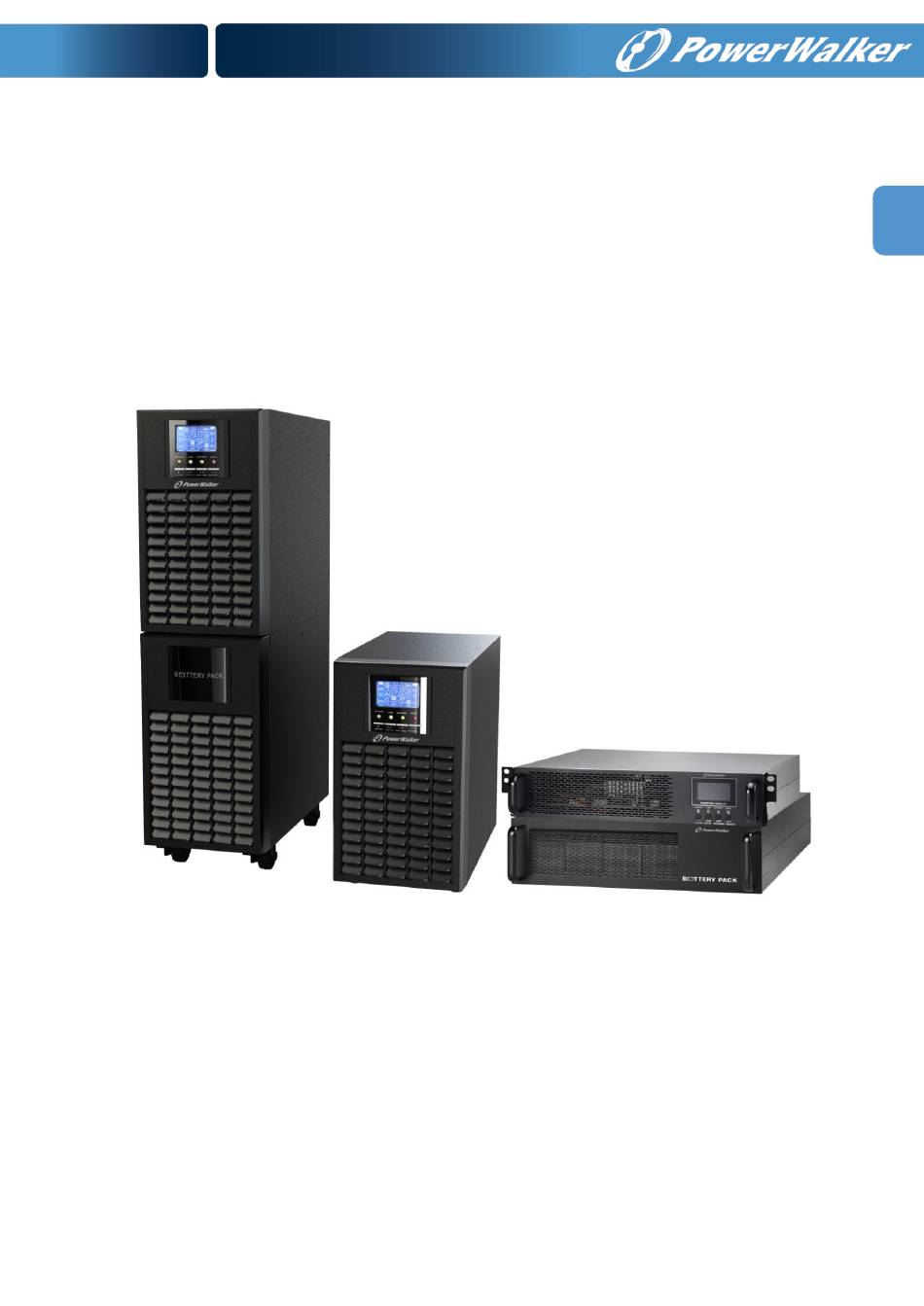

- Page 1 Online UPS PowerWalker 6000C LCD / PowerWalker 10000C LCD PowerWalker VFI 6000C/R LCD / PowerWalker VFI 10000C/R LCD Manual (EN) Uninterruptible Power Supply System...
- Page 2 Please comply with all warnings and operating instructions in this manual strictly. Save this manual properly and read carefully the following instructions before installing the unit. Do not operate this unit before reading through all safety information and operating instructions carefully.
-
Page 3: Table Of Contents
Table of Contents 1. SAFETY AND EMC INSTRUCTIONS ........................3 1-1. T ..........................3 RANSPORTATION AND TORAGE 1-2. P ..............................3 REPARATION 1-3. I ..............................3 NSTALLATION 1-4. O ..............................4 PERATION 1-5. S ..............................4 TANDARDS 2. INSTALLATION AND OPERATION ........................5 2-1. -
Page 4: Safety And Emc Instructions
1. Safety and EMC instructions Please read carefully the following user manual and the safety instructions before installing the unit or using the unit! 1-1. Transportation and Storage Please transport the UPS system only in the original package to protect against shock and impact. -
Page 5: Operation
1-4. Operation Do not disconnect the earth conductor cable on the UPS or the building wiring terminals in any time since this would cancel the protective earth of the UPS system and of all connected loads. The UPS system features its own, internal current source (batteries). The UPS output sockets or output terminal blocks may be electrically live even if the UPS system is not connected to the building wiring outlet. -
Page 6: Installation And Operation
2. Installation and Operation There are two different types of online UPS: standard and long-run models. Please refer to the following model table. Model Type Model Type 6KRL Standard Long-run model model 10KL 10KR 10KRL 2-1. Unpacking and Inspection Unpack the package and check the package contents. The shipping package contains: ●... - Page 7 Diagram 2: 6KL/10KL Rear Panel Diagram 3: 6K(L)/10K(L) Input/Output Terminal Diagram 4: 6KR(L)/10KR(L) Rear Panel Diagram 5: Rack Input/Output Terminal Diagram 6: Rack Battery Pack Rear Panel 1. External battery connector 2. RS-232 communication port 3. Intelligent slot 4. USB communication 5.
-
Page 8: Single Ups Installation
11. Grounding terminal 12. Utility input terminal 13. External maintenance bypass switch port 14. Battery pack output circuit breaker 2-3. Single UPS Installation Installation and wiring must be performed in accordance with the local electric laws/regulations and execute the following instructions by professional personnel. Make sure the mains wire and breakers in the building are in compliance with the standard of rated capacity of UPS to avoid the hazards of electric shock or fire. - Page 9 NOTE 2: Please install the output breaker between the output terminal and the load, and the breaker should be qualified with leakage current protective function if necessary. Put the terminal block cover back to the rear panel of the UPS. Warning: (Only for standard model) ●...
-
Page 10: Software Installation
● Make sure the protective earth ground wiring is correct. The current spec, color, position, connection and conductance reliability of wire should be checked carefully. ● Make sure the utility input & output wiring is correct. The current spec, color, position, connection and conductance reliability of wire should be checked carefully. -
Page 11: Operations
3. Operations 3-1. Button Operation Button Function Turn on the UPS: Press and hold the button more than 0.5s to turn on the UPS. ON/Enter Button Enter Key: Press this button to confirm the selection in setting menu. ... - Page 12 LCD Panel: Display Function Backup time information Indicates the backup time in numbers. H: hours, M: minutes, S: seconds Fault information Indicates that the warning and fault occurs. Indicates the fault codes, and the codes are listed in details in section 3-9. Mute operation Indicates that the UPS alarm is disabled.
-
Page 13: Audible Alarm
Battery information Indicates the Battery capacity by 0-25%, 26-50%, 51-75%, and 76-100%. Indicates the battery is fault. Indicates low battery level and low battery voltage. Input & Battery voltage information Indicates the input voltage or frequency or battery voltage. Vac: Input voltage, Vdc: battery voltage, Hz: input frequency 3-3. -
Page 14: Single Ups Operation
3-4. Single UPS Operation 1. Turn on the UPS with utility power supply (in AC mode) 1) After power supply is connected correctly, set the breaker of the battery pack at “ON” position (the step only available for long-run model). Then set the input breaker at “ON” position. At this time the fan is running and the UPS supplies power to the loads via the bypass. - Page 15 3) Make sure the battery numbers setting on the control board (Please refer to the section 3-4-12 for detailed setting) is consistent to real connection. 4) The charging current can be changed from 0.5A to 6A via LCD or software. Please make sure that the charging current is suitable to battery specification.
-
Page 16: Abbreviation Meaning In Lcd Display
10. Operation in warning status 1) When Fault LED flashes and the buzzer beeps once every second, it means that there are some problems for UPS operation. Users can get the fault code from LCD panel. Please check the trouble shooting table in chapter 4 for details. -
Page 17: Lcd Setting
Normal mode (not CVCF mode) CVCF mode Subtract Not allowed Allow Reserved 3-6. LCD Setting There are three parameters to set up the UPS. Refer to following diagram. Parameter 1: It’s for program alternatives. Refer Parameter 1 to below table for the programs to set up. Parameter 2 and parameter 3 are the setting options or values for each program. - Page 18 Battery capacity and groups setting Backup time calibration *Y means that this program can be set in this mode. 01: Output voltage Interface Setting Parameter 3: Output voltage You may choose the following output voltage in parameter 3: 208: Presents output voltage is 208Vac 220: Presents output voltage is 220Vac 230: Presents output voltage is 230Vac 240: Presents output voltage is 240Vac...
- Page 19 04: Frequency range for bypass Interface Setting Parameter 2: Set the acceptable low frequency for bypass. 50 Hz system: Setting range is from 46.0Hz to 49.0Hz. 60 Hz system: Setting range is from 56.0Hz to 59.0Hz. The default value is 46.0Hz/56.0Hz. Parameter 3: Set the acceptable high frequency for bypass.
- Page 20 09: Battery maximum discharge time setting Interface Setting Parameter 3: 000~999: Set the maximum discharge time from 0min to 999min. UPS will shut down to protect battery after discharge time arrives. The default value is 990min. DIS: Disable battery discharge protection and backup time will depend on battery capacity.
- Page 21 14: Charger voltage adjustment Interface Setting Parameter 2: you may choose Add or Sub to adjust charger voltage Parameter 3: the voltage range is from 0V to 6.4V, the default value is 0V. 15: Inverter voltage calibration Interface Setting Parameter 2: you may choose Add or Sub to calibrate inverter voltage...
-
Page 22: Operating Mode/Status Description
19: Battery capacity and groups setting Interface Setting Parameter 2: Set the battery capacity such as 7AH, 9AH, 10AH, 12AH, 17AH, 26AH, 40AH, 65AH, 100AH and so on. The default value is 9AH. Parameter 3: Set battery group range from 1 to 6. The default value is 1 group. -
Page 23: Fault Code
Battery mode Description When the input voltage is beyond the acceptable range or power failure, UPS will backup power from battery and alarm will beep every 4 seconds. LCD display Bypass mode Description When input voltage is within acceptable range and bypass is enabled, turn off the UPS and it will enter Bypass mode. -
Page 24: Warning Indicator
3-9. Warning Indicator Warning Icon (flashing) Alarm Battery low Beeping every second Overload Beeping twice every second Battery unconnected Beeping every second Over charge Beeping every second EPO enable Beeping every second Fan failure/Over temperature Beeping every second Charger failure Beeping every second I/P fuse broken Beeping every second... -
Page 25: Trouble Shooting
4. Trouble Shooting If the UPS system does not operate correctly, please solve the problem by using the table below. Symptom Possible cause Remedy No indication and alarm in the front The AC input power is not Check if input cable firmly display panel even though the mains is connected well. -
Page 26: Storage And Maintenance
5. Storage and Maintenance 5-1. Storage Before storing, charge the UPS at least 7 hours. Store the UPS covered and upright in a cool, dry location. During storage, recharge the battery in accordance with the following table: Storage Temperature Recharge Frequency Charging Duration -25°C - 40°C Every 3 months... -
Page 27: Specifications
6. Specifications PowerWalker PowerWalker VFI PowerWalker PowerWalker VFI MODEL 6000 6000C/R LCD 10000 10000C/R LCD CAPACITY* 6000 VA / 4800 W 10000 VA / 8000 W INPUT 110 VAC ± 3 % at 50% Load; Low Line Loss 176 VAC ± 3 % at 100% Load...
