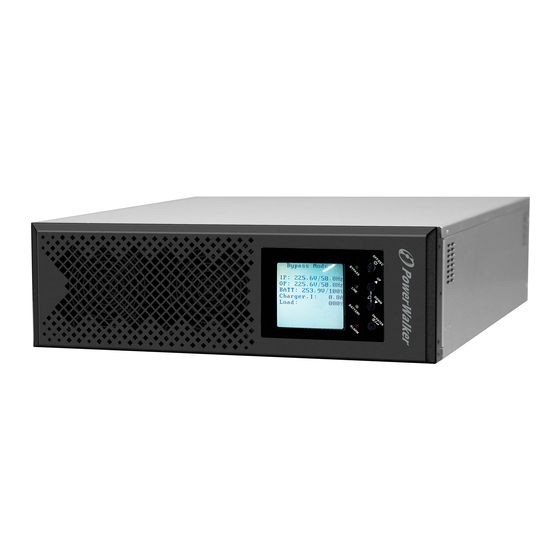

PowerWalker VFI 10K CPH
Manual
Stand-alone 10kW unit
and
Modular Solution up to 100kW
Version: 1.5
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VFI 10K CPH and is the answer not in the manual?

Questions and answers

Related Manuals for PowerWalker VFI 10K CPH

Summary of Contents for PowerWalker VFI 10K CPH

  • Page 1 PowerWalker VFI 10K CPH Manual Stand-alone 10kW unit Modular Solution up to 100kW Version: 1.5...

  • Page 2: Table Of Contents

    Table of Contents 1. Safety and EMC instructions ..........................2 1-1. Transportation and Storage ........................... 2 1-2. Preparation ..............................2 1-3. Installation ..............................2 1-4. Connection Warnings ........................... 2 1-5. Operation ..............................3 1-6. Standards ..............................3 2. Installation ................................ 4 2-1.

  • Page 3: Safety And Emc Instructions

    1. Safety and EMC instructions Please comply with all warnings and operating instructions in this manual strictly. Save this manual properly and read carefully the following instructions before installing the unit. Do not operate this unit before reading through all safety information and operating instructions carefully. 1-1.

  • Page 4: Operation

    • There is no standard backfeed protection inside, please isolate the UPS before working according to this circuit. The isolation device must be able to carry the UPS input current. • This UPS should be connected with TN grounding system. •...

  • Page 5: Installation

    2. Installation There are two types of models in this series: Model Type VFI 10K CPH 3/3 3-phase in/3-phase out 400V online UPS VFI 10K CPH 3/1 3-phase in/single phase out online UPS VFI CPH Series can be used as stand-alone rack unit (fits 19” cabinet), it is then connected with terminal input and output on the back of the unit.

  • Page 6: Rear Panel View

    6. Battery terminal BAT + (positive polarity) BAT N (neutral polarity – middle of the DC string) BAT – (negative polarity) R – bypass (only for VFI 10K CPH 3/1 version) 7. Input/ Output terminal Input/ Output Terminal Model 3-3 10K...
  • Page 7 Installing UPS module Step 1 Step 2 Assemble two feet and one short extension as one tower stand shown in step 1. Align the two stands approximately 35cm apart in step 2. Then, put UPS module in the stands as shown in step 3. NOTE: Make sure the connector box is firmly attached to UPS back panel with screws.
  • Page 8 2-3-2. Rack Installation Please follow below steps to mount UPS/battery pack into 19” rack or rack enclosure. Step 1: Insert 8 pieces of fixing nuts into the following locations to fix rail sliders and UPS. Step 2: Use 4 pieces of M6 screws to mount rail sliders into front of the chassis. Step 3: Adjust the distance of rail sliders by pulling the other end.

  • Page 9: Single Ups Installation

    Connector box Step 7: Attach mounting ears to the side mounting holes of UPS module by using the screws provided and the ears should face forward as following picture show. Step 8: Put the UPS module on the sliders and push it toward connector box. Please make sure hot-swappable connectors on connector box are firmly plugged into the UPS module.

  • Page 10: Parallel Ups Installation

    UPS’s maximum input current. Otherwise the receptacle may be burned and destroyed. 2) Switch off the mains switch in the building before installation. 3) Turn off all the connected devices before connecting to the UPS. 4) Prepare wires based on the following table: Input Output Battery...
  • Page 11 Battery Applicable battery Minimum required QTY Model Battery voltage quantity capacity per UPS module BP H240R-20x9Ah 120V 7Ah/9Ah/10Ah BP H240R-32x5Ah ±192V * installed in pairs – positive and negative half-string 2-6-1 Single Battery Pack Connection Connect the battery terminals of battery pack and UPS module with parallel busbars as below chart. Battery terminal Battery Pack 2-6-2 Serial Connection for Battery Packs...
  • Page 12 Back PCB Brass spacer Battery Pack Insulator paper Back PCB Battery Pack Battery serial PCB Back PCB Long busbars The wiring connection for parallel UPS system with serial connection of battery packs is shown as below. Back PCB Back PCB Brass spacer Battery Pack Insulator paper...

  • Page 13: Operations

    3. Operations 3-1. Operation Mode This modular UPS is on-line, double-conversion and reverse-transfer UPS that permits operation in the following modes: Power On Mode  Standby Mode  Bypass Mode  Line Mode  Battery Mode  Battery Test Mode ...
  • Page 14 3-1-3. Bypass Mode Upon connecting to utility input power, the UPS is in Bypass mode before UPS is turned on (if BYPASS enable setting is Enabled), and charger function will be active when battery is present. After UPS has been turned on, if the UPS encounters abnormal situations (over-temperature, overload …, etc.), UPS will perform the load from the inverter to the bypass source with no interruption.
  • Page 15 Battery Mode Diagram 3-1-6. Battery Test Mode Users can manually operate UPS to battery test mode. There is no interruption in power to the load. If the test is completed or battery fails, the UPS will return to Line mode or CVCF mode (if CVCF mode is enabled). In battery test mode, the rectifier derives power from the battery and supplies DC power to the inverter.
  • Page 16 3-1-8. CVCF Mode The CVCF mode is enabled through the LCD setting menu. The output frequency will be fixed at 50Hz or 60Hz according to setting of “Freq”. In CVCF mode, the rectifier derives power from the utility power, supplies DC power to the inverter and the charger charges the battery.

  • Page 17: Ups Module Introduction

    Shutdown Mode Diagram 3-2. UPS Module Introduction 3-2-1. UPS Module The capacity of each UPS module is 10kVA/10kW. All models contain a power factor correction rectifier, a battery charger, an inverter, an bypass circuit and control circuit. Item Description The UPS module uses forced convection cooling by these fans. Cooling air enters the module through ventilation grills and exhalation exhausts through grills located at the rear of the module.
  • Page 18 3-2-2. Button Operation LED Indicators LCD Display OFF/ESC BYPASS LINE DOWN BATTERY ON/ENTER ALARM Function Keys There are four buttons on the front panel. Control Key Description Press this button to turn on the UPS.  ON/ENTER Or press it to confirm the selection in the menu. ...

  • Page 19: Single Ups Operation

    3-2-4. Audible alarm UPS status Buzzer status Muted Bypass mode Beeping once every 2 minutes Battery / Battery-test mode (normal battery voltage) Beeping once every 4 seconds Battery / Battery-test mode (low battery voltage) Beeping once every second Fault Beeping continuously Warnings (except overload) Beeping once every second Overload...
  • Page 20 5) If the overload time is over duration listed in spec at Line mode, the UPS will automatically transfer to Bypass mode. After the overload is removed, it will return to Line mode. If the overload time is over duration listed in spec at Battery mode, the UPS will become fault status. At this time, if bypass is enabled, the UPS will power to the load via bypass.

  • Page 21: Lcd Operation On Ups Module

    3-3-8. Turn off the UPS without utility power supply in Battery mode 1) When LCD is on home page, press the “OFF/ESC” button, LCD will show a prompt page of “Turn Off”; Move the arrow to “Yes” by up or down button, then press “ON/ENTER”, the UPS will be turning off to bypass mode with beeping once.
  • Page 22 Turn On Batt Test Press button “Enter” Turn To Bypass Control Press button “Esc” SR On/Off Charger Off/On Press button “Enter” Local System Measurement Press button “Esc” Master Slave1 Slave9 Input Output Press button “Enter” Bypass Load Press button “Esc” Press either button “UP”or “DOWN”...
  • Page 23 3-4-2. Main interface (Home Page) After initialization, the main screen will display as below chart. Line Mode Bat Mode IP1:230.0V/50.0Hz IP1: 0.0V/ 0.0Hz IP2:230.0V/50.0Hz IP2: 0.0V/ 0.0Hz IP3:230.0V/50.0Hz IP3: 0.0V/ 0.0Hz OP1:230.0V/50.0Hz OP1:230.0V/50.0Hz OP2:230.0V/50.0Hz OP2:230.0V/50.0Hz OP3:230.0V/50.0Hz OP3:230.0V/50.0Hz Bat:192.0V/192.0V Bat:192.0V/192.0V Load:100/100/100% Load:100/100/100% Warning：...
  • Page 24 Bypass Mode M Line Mode IP1:230.0V/50.0Hz IP1:230.0V/50.0Hz Turn Off ? IP2:230.0V/50.0Hz IP2:230.0V/50.0Hz IP3:230.0V/50.0Hz IP3:230.0V/50.0Hz OP1:230.0V/50.0Hz OP1:230.0V/50.0Hz OP2:230.0V/50.0Hz OP2:230.0V/50.0Hz OP3:230.0V/50.0Hz OP3:230.0V/50.0Hz Bat:192.0V/192.0V Bat:192.0V/192.0V Load: 0/ 0/ 0% Load: 0/ 0/ 0% → → 3-4-3. Operation menu 3-4-3-1. Main menu Line Mode M Control IP1:230.0V/50.0Hz IP2:230.0V/50.0Hz...
  • Page 25 “SR Off” will be displayed if UPS is not turned on. “SR On” will be displayed if UPS is turned on.  “Charger Off” will be displayed if charger is working. “Charger On” will be displayed if charger is turn off. ...
  • Page 26 Bat Test Mode M IP1:230.0V/50.0Hz IP2:230.0V/50.0Hz IP3:230.0V/50.0Hz OP1:230.0V/50.0Hz OP2:230.0V/50.0Hz OP3:230.0V/50.0Hz Bat:192.0V/192.0V Load: Backup Time: 10H However, it could execute this test in Line/Converter mode and reminder will pop up in the screen. When “Yes” is selected, the screen will return back to home page with “Battery Test Mode” displayed on top. If the test is completed, the displayed status will change back to UPS current mode.
  • Page 27 4) SR On / SR Off On Line/Battery/Battery Test/CVCF/ECO mode, it will display “SR On” in control menu. If it is selected and confirmed, shutdown and restore time can be setting. Please refer to setting range table for shutdown and restore time. When “Shutdown Time”...
  • Page 28 5) Charger Off / Charger On This selection will be displayed under all UPS modes when charger is working. If it is selected and confirmed, the screen will return back to home page. And charger will stop charging the battery. →...
  • Page 29 Output: Measurement: Input: Output: Volt1: 230.0V Volt1: 230.0V Input Curr1: 15.0A Volt2: 230.0V Volt2: 230.0V Output Curr2: 15.0A Volt3: Volt3: 230.0V 230.0V Curr3: 15.0A Bypass Freq: 50.0Hz Inv1: 230.0V <<< Load Phase: Inv2: 230.0V Inv3: 230.0V Freq: 50.0Hz >>> → →...
  • Page 30 1) Bypass setting (only available or effective on bypass mode and standby mode) Interface Description 1. Status 1.1 Open/Forbid: Open: Bypass allowed. When selected, UPS will run at Bypass mode depending on bypass enabled/disabled setting. Forbid: Bypass not allowed. When selected, it’s not allowed for running in Bypass mode under any situations.
  • Page 31 1. Volt: 208: Presenting the rated output voltage with 208Vac 220: Presenting the rated output voltage with 220Vac 230: Presenting the rated output voltage with 230Vac 240: Presenting the rated output voltage with 240Vac The default value is 230Vac. Output: 2.
  • Page 32 Disable: It is to enable the buzzer when UPS is in battery mode. Others: The default setting is Disable. 5. Fault Mute(available or effective on all mode): Bat Mute: Enable: It is to mute the buzzer when UPS is in fault mode. Disable Disable: It is to enable the buzzer when UPS is in fault mode.
  • Page 33 8. BatNum: Set battery number in the system. The setting range is from 16 to 20 pieces. The default value is 16. 9. Chg Curr: Set maximum charge current. The setting range is from (0~ 4A) x N. N represents the parallel unit number. The default value is 4A. If parallel unit number is 10, the maximum setting value can be 40A.
  • Page 34 System: TimeTemp System: Others Output: System Time: Volt: 230V Hot Standby: 2018-05-23 Freq: Auto Disable Audible Mute: CVCF: 20:26:30 Disable Disable Wednesday >>> Language: Temperature: English >>> >>> → → → System: Others System: Others Redunduancy: Bat Mute: Disable Parallel: 02+01 Fault Mute: Standard Mode:...
  • Page 35 3-4-3-6. Events In Event pages, you can check the current events, history events and reset events. 1) Currents Events When an event occurs, it will display alarm code in Current Events page. If events exceed more than one page, press “ ”...

  • Page 36: Parallel Ups Operation

    3-5. Parallel UPS Operation You can add one new UPS into the parallel system when whole system is running at any mode. The additional UPS will automatically match with the Master UPS. Then, fasten the UPS through the screw of mounting ears. NOTE: •...
  • Page 37 voltage within specified time. again, contact service personnel. Fault 12:Inv Volt High Inverter voltage is too high. Contact service personnel. Fault 13:Inv Volt Low Inverter voltage is too low. Contact service personnel. Fault 14:Inv Short R R phase inverter output is short circuited Contact service personnel.
  • Page 38 negative battery is different. Check if the Neutral connection is well Warning 04:LineIpNLoss Neutral loss and contact service personnel. Check if the Mains phase sequence is Warning 05:LinePhaseError As stated. correct and contact service personnel. Check if the input wiring is correct or Warning 06:LineVoltError As stated.

  • Page 39: Storage And Maintenance

    UPS switches between bypass mode and Warning 1C:BpsUnstable standby mode five times in 30 minutes Contact service personnel. due to abnormal utility. Check if redundancy setting is correct or Warning 1D:RedundancyFail As stated. not. Then, contact service personnel. Check if the battery has been used over its Warning! Battery Age Alert Battery life is expired.

  • Page 40: Specifications

    6. Specifications MODEL VFI 10K CPH 3/3 VFI 10K CPH 3/1 PHASE 3 phase in / 3 phase out 3 phase in / 1 phase out POWER CAPACITY 10kVA/ 10kW TOTAL PARALLEL CAPACITY 100KVA/100KW (when all 10 modules are connected) MAX.
