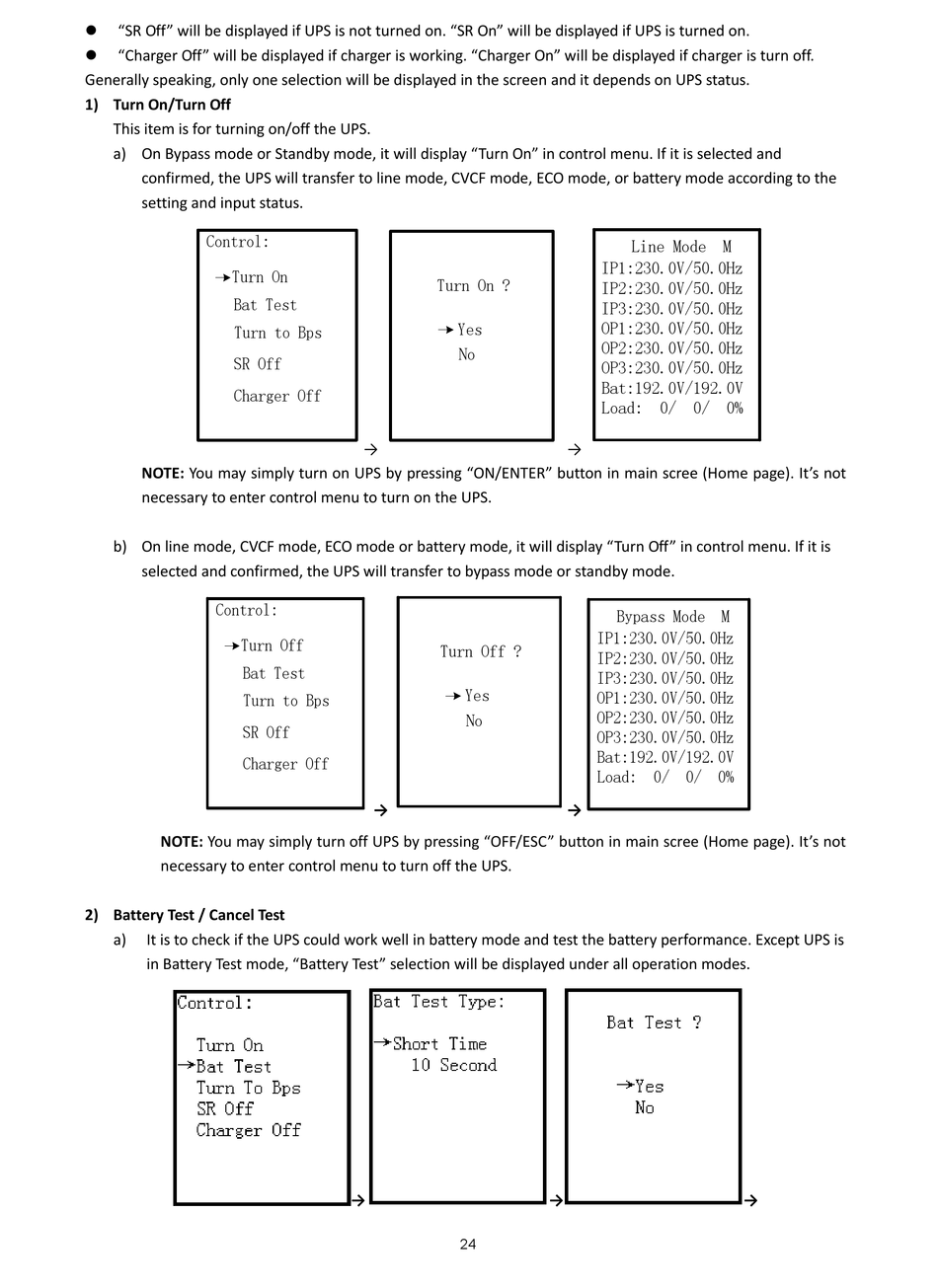

PowerWalker VFI 10K CPH Manual page 25

"SR Off" will be displayed if UPS is not turned on. "SR On" will be displayed if UPS is turned on.

"Charger Off" will be displayed if charger is working. "Charger On" will be displayed if charger is turn off.

Generally speaking, only one selection will be displayed in the screen and it depends on UPS status.
1) Turn On/Turn Off
This item is for turning on/off the UPS.
a) On Bypass mode or Standby mode, it will display "Turn On" in control menu. If it is selected and
confirmed, the UPS will transfer to line mode, CVCF mode, ECO mode, or battery mode according to the
setting and input status.
Control:
Turn On
Bat Test
Turn to Bps
SR Off
Charger Off
NOTE: You may simply turn on UPS by pressing "ON/ENTER" button in main scree (Home page). It's not
necessary to enter control menu to turn on the UPS.
b) On line mode, CVCF mode, ECO mode or battery mode, it will display "Turn Off" in control menu. If it is
selected and confirmed, the UPS will transfer to bypass mode or standby mode.
Control:
Turn Off
Bat Test
Turn to Bps
SR Off
Charger Off
NOTE: You may simply turn off UPS by pressing "OFF/ESC" button in main scree (Home page). It's not
necessary to enter control menu to turn off the UPS.
2) Battery Test / Cancel Test
a) It is to check if the UPS could work well in battery mode and test the battery performance. Except UPS is
in Battery Test mode, "Battery Test" selection will be displayed under all operation modes.
Turn On ?
Yes
No
→
Turn Off ?
Yes
No
→
→
24
Line Mode M
IP1:230.0V/50.0Hz
IP2:230.0V/50.0Hz
IP3:230.0V/50.0Hz
OP1:230.0V/50.0Hz
OP2:230.0V/50.0Hz
OP3:230.0V/50.0Hz
Bat:192.0V/192.0V
Load: 0/ 0/ 0%
→
Bypass Mode M
IP1:230.0V/50.0Hz
IP2:230.0V/50.0Hz
IP3:230.0V/50.0Hz
OP1:230.0V/50.0Hz
OP2:230.0V/50.0Hz
OP3:230.0V/50.0Hz
Bat:192.0V/192.0V
Load: 0/ 0/ 0%
→
→ →
