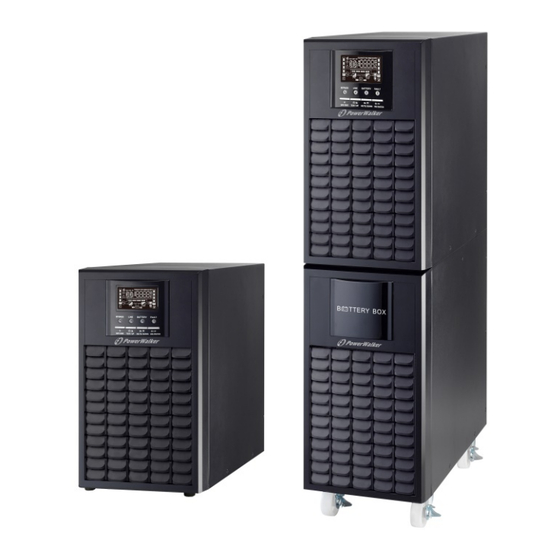

Summary of Contents for PowerWalker VFI 10000 CG PF1

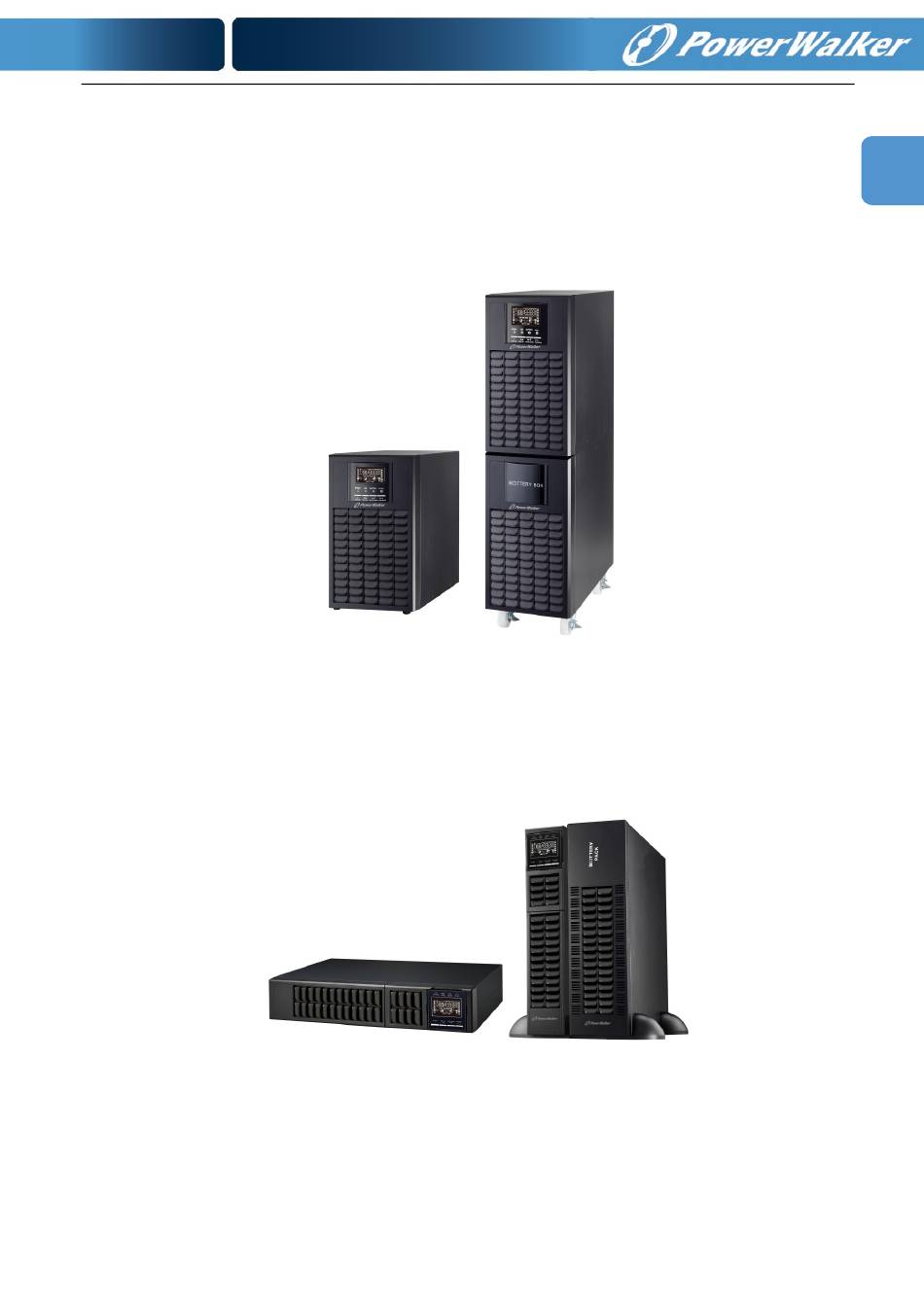

- Page 1 PowerWalker VFI 6000 CG PF1 PowerWalker VFI 10000 CG PF1 PowerWalker VFI 6000 RMG(S) PF1 PowerWalker VFI 10000 RMG(S) PF1 Manual Uninterruptible Power Supply System Version: 1.0...
-
Page 2: Table Of Contents
Table of Contents 1. SAFETY AND EMC INSTRUCTIONS ........................... 1 1-1. T ..........................1 RANSPORTATION AND TORAGE 1-2. P ................................1 REPARATION 1-3. I ................................1 NSTALLATION 1-4. C ............................. 1 ONNECTION ARNINGS 1-5. O ................................... 3 PERATION 1-6. S .................................. -
Page 3: Safety And Emc Instructions
Please comply with all warnings and operating instructions in this manual strictly. Save this manual properly and read carefully the following instructions before installing the unit. Do not operate this unit before reading through all safety information and operating instructions carefully. 1. - Page 4 External backfeed protection wiring � � � There can be no derivation in the line that goes from the «Backfeed Protection» to the UPS, as the standard safety would be infringed. • Warning labels should be placed on all primary power switches installed in places away from the device to alert the electrical maintenance personnel of the presence of a UPS in the circuit.
-
Page 5: Operation
1-5. Operation � Do not disconnect the earth conductor cable on the UPS or the building wiring terminals in any � � time since this would cancel the protective earth of the UPS system and of all connected loads. � The UPS system features its own, internal current source (batteries). The UPS output sockets or �... -
Page 6: Rear Panel View
● One RS-232 cable (option) ● One USB cable ● One parallel cable (only available for parallel model) ● One share current cable (only available for parallel model) ● One battery cable (option) NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged during transportation. -
Page 7: Rack/Tower Installation (Only For Rt Model)
Diagram 2: 2U battery pack Diagram 3: 3U battery pack 1) Share current port (only available for parallel model) 2) Parallel port (only available for parallel model) 3) External battery connector 4) Intelligent slot 5) RS-232 communication port 6) USB communication port 7) Emergency power off function connector (EPO connector) 8) Input circuit breaker 9) Output terminals... - Page 8 Install UPS module and one battery bank in 4U Assemble two feet and one long extension as one tower stand shown in step 1. Align the two stands approximately 35cm apart in step 2. Then, put UPS module and battery bank in the stands as shown in step Step 1 Step 2 Step 3...
- Page 9 2) Switch off the mains switch in the building before installation. 3) Turn off all the connected devices before connecting to the UPS. 4) Prepare wires based on the following table: Wiring spec (AWG) Model Input Output Battery Ground 6K/6KRT 6KL/6KRTL 10K/10KRT 10KL/10KRTL...
-
Page 10: Ups Installation For Parallel System
● Make sure a DC breaker or other protection device between UPS and external battery pack is installed. If not, please install it carefully. Switch off the battery breaker before installation. Warning: ● For standard battery pack, there is one DC breaker to disconnect the battery pack and the UPS. But for other external battery pack, make sure a DC breaker or other protection device between UPS and external battery pack is installed. - Page 11 Diagram 1: Power cable connection for tower model Diagram 2: Wiring diagram of parallel system for tower model Diagram 3: Power cable connection for RT model...
-
Page 12: Software Installation
Diagram 4: Wiring diagram of parallel system for RT model 2-6. Software Installation For optimal computer system protection, install UPS monitoring software to fully configure UPS shutdown. 3. Operations 3-1. Button Operation Button Function Turn on the UPS: Press and hold the button more than 0.5s to turn on the UPS. ON/Enter Button ... -
Page 13: Led Indicators And Lcd Panel
3-2. LED Indicators and LCD Panel LCD panel LED indicators There are 4 LEDs on front panel to show the UPS working status: Mode Bypass Line Battery Fault ● ● ● ● UPS Startup ○ ○ ○ ○ No Output mode ○... -
Page 14: Audible Alarm
Indicates the fault codes, and the codes are listed in details in section 3-9. Mute operation Indicates that the UPS alarm is disabled. Output & Input & Battery voltage information Indicates the output voltage, frequency or battery voltage. Vac: output voltage, Vdc: battery voltage, Hz: frequency Load information Indicates the load level by 0-25%, 26-50%, 51-75%, and 76-100%. - Page 15 NOTE: When UPS is in Bypass mode, the output voltage will directly power from utility after you switch on the input breaker. In Bypass mode, the load is not protected by UPS. To protect your precious devices, you should turn on the UPS. Refer to next step. 2) Press and hold the “ON”...
- Page 16 voltage drops to the alarm level, the buzzer will beep quickly (once every sec) to remind users that the battery is at low level and the UPS will shut down automatically soon. Users could switch off some non-critical loads to disable the shutdown alarm and prolong the backup time. If there is no more load to be switched off at that time, you have to shut down all loads as soon as possible to protect the devices or save data.
-
Page 17: Parallel Operation
2) All warning alarms can be muted. Please refer to section 3-3 for the details. 3-4-11. Operation in Fault mode 1) When Fault LED illuminates and the buzzer beeps continuously, it means that there is a fatal error in the UPS. Users can get the fault code from display panel. Please check the 3-9 fault code table and the trouble shooting table in chapter 4 for details. - Page 18 Remove the cover of parallel share current cable port on the UPS, connect each UPS one by one with the parallel cable and share current cable, and then screw the cover back. 3-5-2. Turn on the parallel system in AC mode Turn on the input breaker of each UPS.
-
Page 19: Abbreviation Meaning In Lcd Display
5) Set the maintenance switches from “BPS” to “UPS and put the maintenance bypass covers back. Turn on the remaining UPSs and finish the parallel system connection. Warning: (Only for the parallel system) ● Before turning on the parallel system to activate inverter, make sure that all unit’s maintenance switch at the same position. - Page 20 Output voltage Output frequency Voltage range for bypass Frequency range for bypass ECO mode enable/disable Voltage range for ECO mode ECO mode frequency range setting Bypass mode setting Battery backup time setting Reserved Reserved for future Reserved Reserved for future Hot standby function enable/disable Battery voltage adjustment Charger voltage adjustment...
- Page 21 output frequency will be 60.0Hz. The last two digits will show the current frequency. At is default setting. Note: If the UPS is set to CVCF mode, the bypass function will be disabled automatically. But when a single UPS without parallel function is powered on with mains and before the UPS finished the startup, there will be a few seconds of voltage pulse (same as the input voltage) on the bypass output.
- Page 22 50 Hz: Setting range is from 51.0Hz to 54.0 Hz. 60 Hz: Setting range is from 61.0Hz to 64.0Hz. The default value is 54.0Hz/64.0Hz. 05: ECO mode enable/disable Interface Setting Parameter 2: Enable or disable ECO function. You may choose following two options: DIS: disable ECO function ENA: enable ECO function...
- Page 23 parameter 2 by pressing “Up” or “Down” key. HS: Set high frequency point for ECO mode. 50 Hz: Setting range is from 52.0Hz to 54.0 Hz. 60 Hz: Setting range is from 62.0Hz to 64.0Hz. The default value is 52.0Hz/62.0Hz. 08: Bypass mode setting ...
- Page 24 Parameter 2: HS.H Enable or disable Hot standby function. You may choose following two options in Parameter 2: YES: Hot standby function is enabled. It means that the current UPS is set to host of the hot standby function, and it will restart after AC recovery even without battery connected.
-
Page 25: Operating Mode/Status Description
16: Output voltage calibration Interface Setting After it shows “16” in parameter 1, please press “Enter” key first. Then, you may choose Ad or SU to adjust output voltage in parameter 1 by pressing “Up” or “Down” key. After pressing “Enter”... - Page 26 Operating mode/status AC mode Description When the input voltage is within acceptable range, UPS will provide pure and stable AC power to output. The UPS will also charge the battery at AC mode. LCD display ECO mode Description When the input voltage is within voltage regulation range and ECO mode is enabled, UPS will bypass voltage to output for energy saving.
- Page 27 UPS will backup power from battery and alarm will beep every 4 seconds. LCD display Bypass mode Description When input voltage is within acceptable range and bypass is enabled, turn off the UPS and it will enter Bypass mode. Alarm beeps every two minutes.
-
Page 28: Fault Code
LCD display 3-9. Fault Code Fault event Fault code Icon Fault event Fault code Icon Bus start failure None Battery SCR short circuited None Bus over None Inverter relay short circuited None Bus under None Charger short circuited None Bus unbalance None Can communication fault None... -
Page 29: Trouble Shooting
Line situations are different in Over charge parallel system Bypass situations are different in Low battery parallel system Locked in bypass after overload 3 Overload times in 30min Fan failure Cover of maintain switch is open EPO enable Bypass unstable Over temperature Boot loader is missing Charger failure... -
Page 30: Storage And Maintenance
persists, consult your dealer. Contact your dealer to replace Batteries defect the battery. Fan is locked or not working; The icon flash on LCD or the UPS temperature is too Check fans and notify dealer. display and alarm beeps every second. high. -
Page 31: Specifications
6. Specifications MODEL 6000 CG 6000 RMG 10000 CG 10000 RMG CAPACITY* 6000 VA / 6000 W 10000 VA / 10000 W INPUT 110 VAC(L-N) ± 3 % at 0-60% Load Low Line Loss 176 VAC(L-N) ± 3 % at 60%-100% Load Voltage Range Low Line Comeback Low Line Loss Voltage + 10V...
