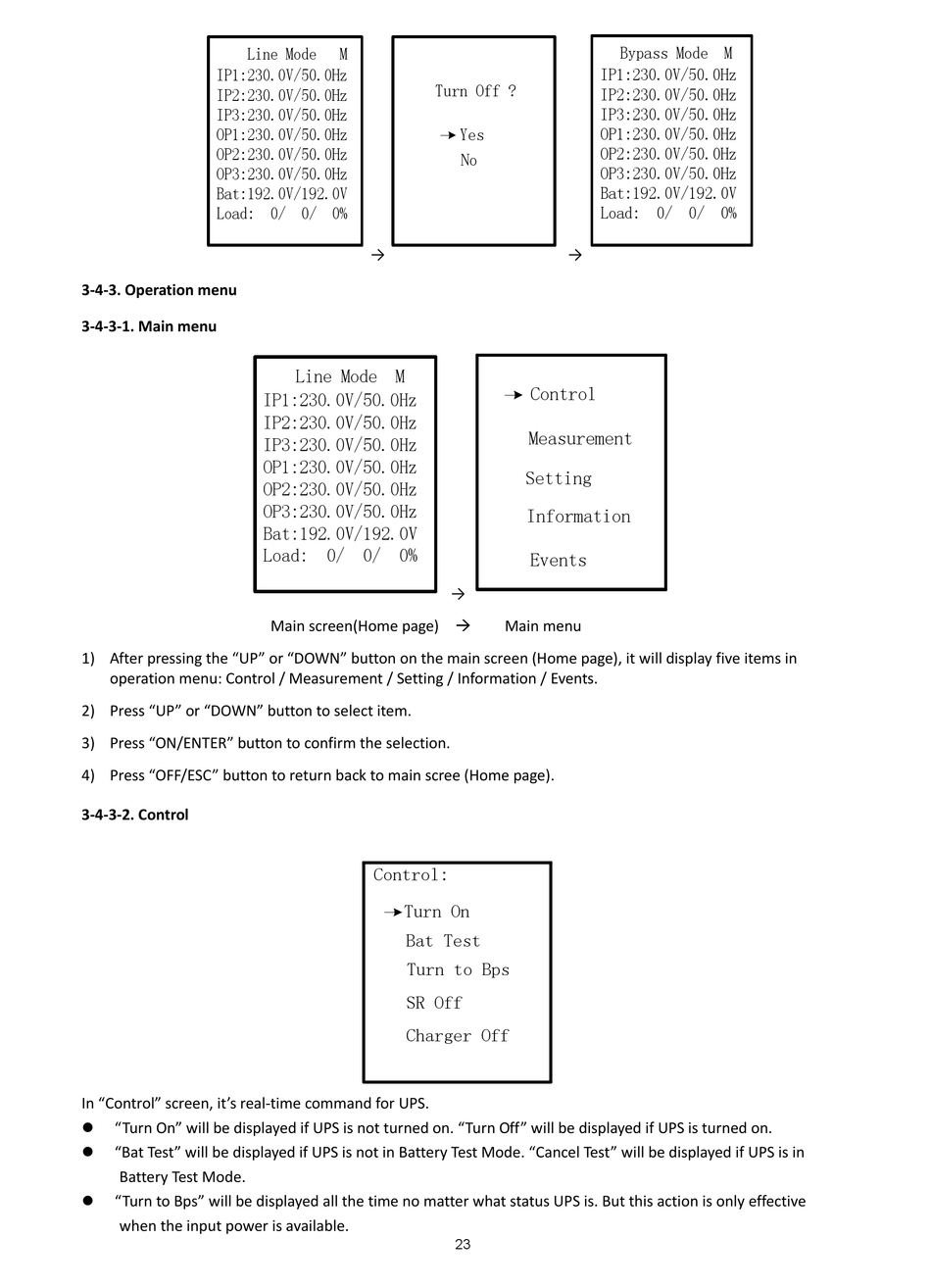

3-4-3. Operation menu
3-4-3-1. Main menu
1) After pressing the "UP" or "DOWN" button on the main screen (Home page), it will display five items in
operation menu: Control / Measurement / Setting / Information / Events.
2) Press "UP" or "DOWN" button to select item.
3) Press "ON/ENTER" button to confirm the selection.
4) Press "OFF/ESC" button to return back to main scree (Home page).
3-4-3-2. Control
In "Control" screen, it's real-time command for UPS.
"Turn On" will be displayed if UPS is not turned on. "Turn Off" will be displayed if UPS is turned on.

"Bat Test" will be displayed if UPS is not in Battery Test Mode. "Cancel Test" will be displayed if UPS is in

Battery Test Mode.
"Turn to Bps" will be displayed all the time no matter what status UPS is. But this action is only effective

when the input power is available.
