PowerWalker VFI 10K CPH Manual page 32

Others:
Bat Mute:
Disable
Fault Mute:
Disable
Bypass Mute:
Disable
>>>
Others:
Redundancy:
Total Power: 02
Standard Mode:
Enable
Factory Reset
<<<

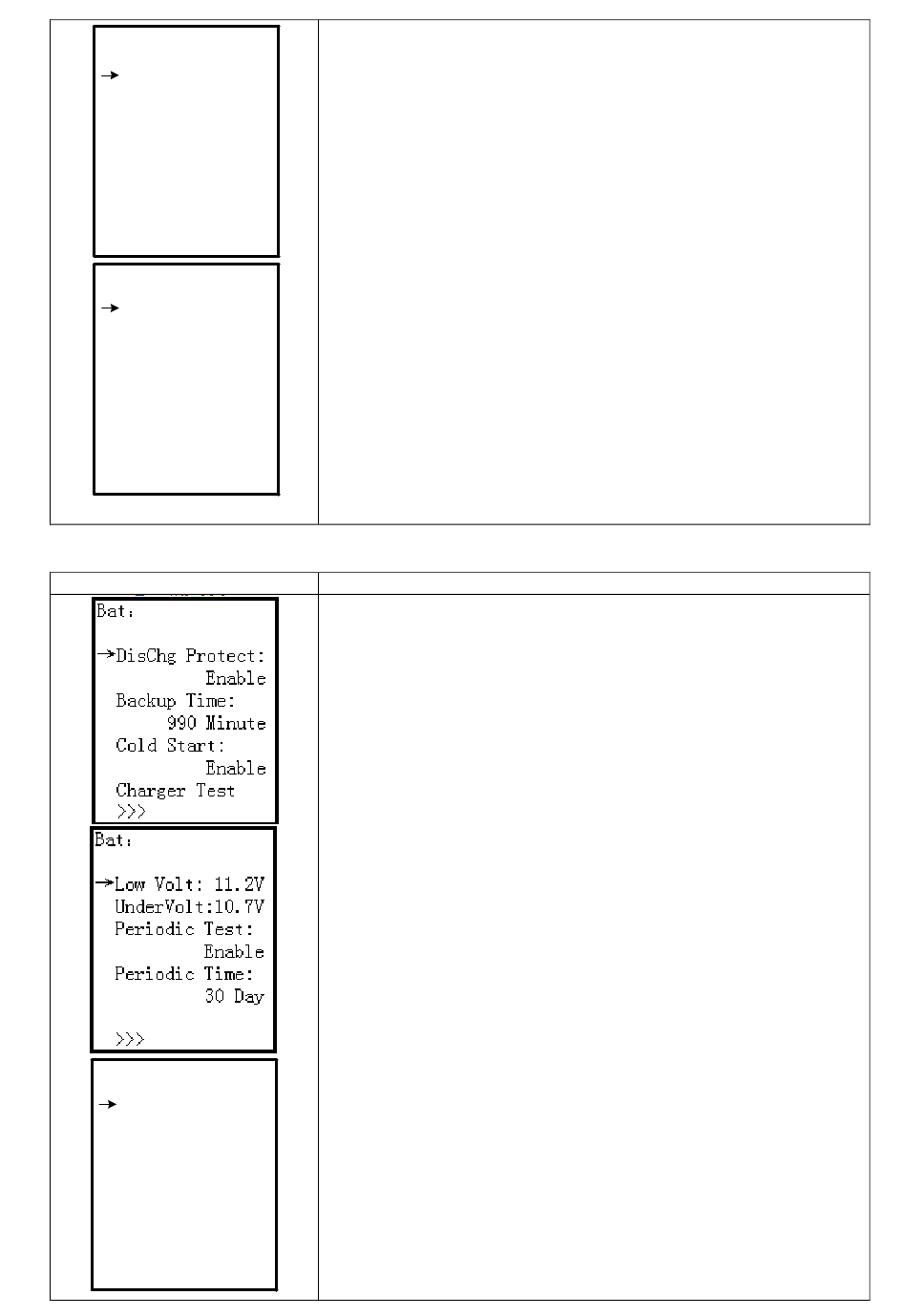

6) Battery
Interface
Bat:
BatNum:
ChgCur:
BatGroups:
BatCap:
Factor:
<<<
Disable: It is to enable the buzzer when UPS is in battery mode.
The default setting is Disable.
5. Fault Mute(available or effective on all mode):
Enable: It is to mute the buzzer when UPS is in fault mode.
Disable: It is to enable the buzzer when UPS is in fault mode.
The default setting is Disable.
6. Bypass Mute(available or effective on all mode):
Enable: It is to mute the buzzer when UPS is in bypass mode.
Disable: It is to enable the buzzer when UPS is in bypass mode.
The default setting is Disable.
7. Redundancy (available or effective on all mode): It is to set the quantity
of redundant UPS module. The setting range is 0~9. The setting
quantity must be less than the total number of UPS modules in the
system. The default value is 0.
00
8. Total Power (available or effective on all mode): It is to set parallel
number of power modules for whole system.
9. Standard Mode(only available or effective on bypass mode and
standby mode):
Enable: It is a compatible mode for dynamo.
Disable: It is a normal mode.
The default setting is Enable.
10. Factory Reset(only available or effective on bypass mode and standby
mode): Restore to factory default setting.
Description
1. Dischg Protect: Enable or disable battery discharge protection.
Enable: Battery discharge protection function is enabled. When UPS have
been continuously working in "battery/battery test mode", the
UPS will automatically shut down when the backup time set next
is achieved.
Disable: Battery discharge protection function is disabled.
Backup Time: When discharge protection is enabled, this setting time can
be counted.
1~990: The maximum discharge time can be set from 1 to 990 minutes.
UPS will shut down to protect battery after backup time arrives
when the "Dischg Protect" is enabled. If "Dischg protect" is
disabled, then this setting does not make sense whatever the
value is. The default value for this setting is 990 minutes.
2. Cold Start:
Enable: UPS could be turned on without mains.
Disable: UPS could not be turned on without mains.
3. Charger Test:
Test the battery charger even without battery. After entering this item, it
will pop up a screen showing "Yes" and "No". If selecting "Yes", the UPS will
execute charger test. After test, the LCD screen will return to main scree
(home page) and show battery voltages on BAT+ and BAT-.
4. Low Volt:
Set battery low warning voltage. The setting range is from 10.5~11.5V per
piece and the default value is 11.2V.
16
5. Under Volt:
04A
Set battery low cut off voltage. The setting range is from 9.6~10.7V per
01
piece and the default value is 9.6V.
6. Periodic Test:
9AH
Enable: UPS will test the battery periodically;
1.0
Disable: UPS will not test the battery periodically.
7. Periodic Time:
When periodic test is enabled, please set up battery test interval. The
setting range is from 7 days to 99 days. The default value is 30-day.
31
