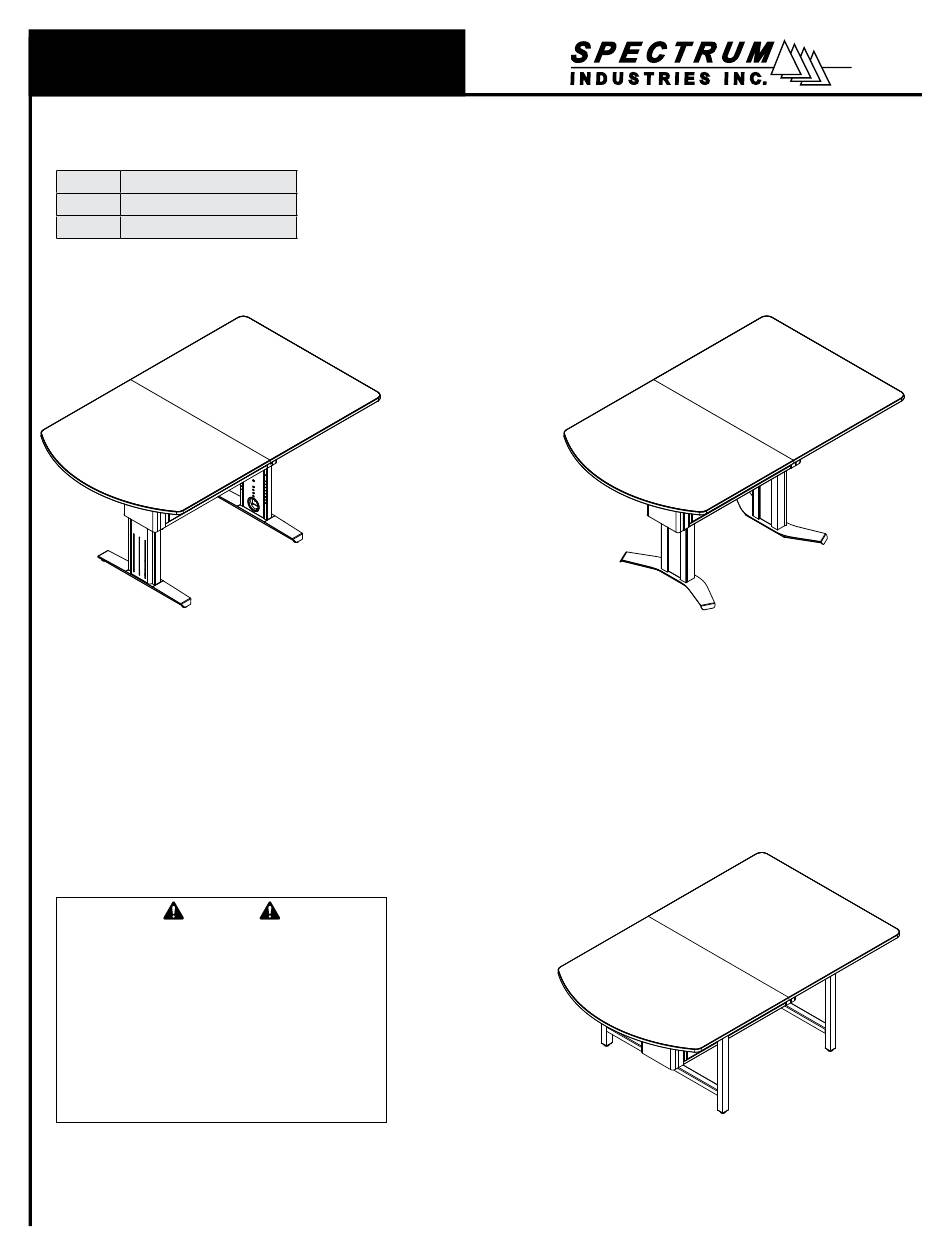

Owner's Manual
InVision Access
37125
Table with set and go
™
37126
Table with eLift
electric legs
37127
Table with fixed legs
set and go legs
Important
Before using this product:
• Read this manual
• Comply with all safety and operating instructions
• Ensure all parts and correct quantities are included
Any parts damaged during shipment must be reported
within 15 days of receipt. To report information regard-
ing missing parts or damage, to purchase parts or
accessories, or if you have any questions, please
contact us.
Thank you for purchasing Spectrum products!
Spectrum Industries, Inc
925 First Avenue, Chippewa Falls, WI 54729 USA
800 235 1262
715 723 6750
www.spectrumfurniture.com
™
V2 Table
™
legs
eLift electric legs
fixed legs
0117015R1 Page 1 of 21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the InVision Access V2 37126 and is the answer not in the manual?

Questions and answers

Related Manuals for Spectrum Industries InVision Access V2 37126

Summary of Contents for Spectrum Industries InVision Access V2 37126

  • Page 1 Thank you for purchasing Spectrum products! Spectrum Industries, Inc fixed legs 925 First Avenue, Chippewa Falls, WI 54729 USA 800 235 1262 715 723 6750 www.spectrumfurniture.com...
  • Page 2 If servicing is necessary, please (Ground Fault Interrupter) circuit breaker. contact Spectrum Industries for assistance. • Damaged electrical components can create signifi cant hazards to users and Warning - Relocating audio and/or video equipment to furniture not specifi cally is not covered by the warranty.
  • Page 3 Components (1) 0116814 (1) 0116818 (1) 0115619 table core with set and go legs table core with eLift legs table core (for fixed legs) (shipping position shown) (shipping position shown) (shipping position shown) Hardware (1) 0109398 (4) 021587 (2) 0115641 control button 8-32 x 1/2”...

  • Page 4: Assembly & Set-Up

    Assembly / Setup 1. Unpack & detach from pallet Phillips screwdriver 1. Remove outer sleeve. Figure 1A. 2. Unscrew the (4) Phillips head wood screws securing the table core to the pallet. Figure 1B. 3. Without using a utility knife, open the rest of the boxes. Cordless drill with long magnetic (best)
  • Page 5 2. Install glides, end caps, and grommets glide wrench (included) 1. With the table still upside-down, install the glides onto the legs (4) on fixed / set- and-go, (6) on eLift legs. Figure 2. 2. Install the end caps into the tube ends. 3.
  • Page 6 3. Adjust leg height (set and go legs only) Phillips screwdriver Note: If you have a table with fixed or eLift legs, proceed to step 4. Cordless drill Tables with adjustable-height set and go legs can be ad- with long magnetic justed to have a worksurface height between 29”- 42”...
  • Page 7 4. Assemble two-piece worksurface 7/16” open end wrench 1. Place the worksurfaces upside-down (laminate side-down) onto a flat, hard, non-abrasive surface like another table. Phillips 2. Insert splines into the worksurface edge slot. For a blank worksurface, screwdriver use (3) splines Figure 4A. For a worksurface with cutouts, use (2) splines.
  • Page 8 6. Using (8) #10 x 3/4” PHSM screws, attach each swaybar to the worksurface as shown. Figure 4E. 7. Using (2) #14 x 7/8” PHSM screws, install each unit-to-unit bracket over the seam at the edges and tighten securely. Figure 4F. swaybar #10 x 3/4”...
  • Page 9 Note: Spectrum Industries, Inc, manufactures furniture that supports a wide variety of power and communication devices from a variety of manufactur- ers. The Invision Access table is compatible with many Extron, Crestron, Altinex, AMX, and other devices.
  • Page 10 3. Measure across the worksurface width and divide by two to locate the center. Make a pencil line along the worksurface length to indicate the centerline. Figure 5B. 4. Locate and layout the necessary cutout(s) in the preferred location(s) on the blank worksurface with a dark line.

  • Page 11: Install Worksurface

    7. Install worksurface Phillips screwdriver 1. Carefully set the 2pc worksurface onto the table frame and align the mounting holes-this will take 2-4 people. Figure 7A. Figure 7A 2. Install (4) 1/4-20 x 2-3/4” PHM screws into the legs as shown to secure the worksurface.
  • Page 12 Cord management options Cords and wiring can be channeled cleanly throughout the unit using grommet holes and openings in the bottom of the technology compartment. fixed legs Set and go legs The 3.5” grommet inside the legs can be used to route power / data 3.5”...
  • Page 13 eLift operating instructions - eLift equipped tables only Phillips screwdriver 1. Attach the control button bracket under the radiused portion of the worksurface with (2) #8 x 5/8” PHSM screws and pre-drilled pilot holes in the center of the worksurface. 2.
  • Page 14 Options Access Display Stand - 37120 display mount • Includes two-position VESA monitor mount with tilting mounting brackets • Wiring channel and back panel provide secure and hidden wiring to technology compartment • Laminate panel matches table color and can be drilled to support other custom monitor mounts monitor size range 37”-63”...
  • Page 15 InVision Access Display Shroud - 95532 • Helps project sound from rear monitor speakers to audience • Protects monitor and hides wires • Adjustable width • Upper and lower height mounting options • Made of aluminum • Requires Access Display Stand 37120 monitor size range for one 37”-63”...
  • Page 16 InVision Access Dual Display Mount - 37124 2 support tubes • For two monitors up to 42” • Includes a 2nd two-position VESA monitor mount with tilting mounting brackets • Includes 2 support tubes • Adjustable left-to-right • Requires Access Display Stand 37120 2nd monitor mount monitor size range...
  • Page 17 InVision Access Equipment Rack 8RU - 37123 • Provides rack capacity next to table • Equipment rack can be integrated off-site, then wheeled into place • Single cam locking front and rear panels • Glides and casters included for stationary or mobile use (glides can be unscrewed to raise unit off casters for stationary use) •...

  • Page 18: Safety Information

    Electric leg information (37126 only) Warning! Only for EU markets • This appliance can be used by children aged from 8 years and above and persons Failure to comply with these instructions may result in accidents involving serious personal injury. with reduced physical, sensory or mental capabilities or lack of experience and Failing to follow these instructions can result in the product being damaged or being destroyed.
  • Page 19 Misc. on the DESKLINE® DL5/DL6 system Electrical connection of the DL5/DL6 system This system is a DESKLINE system developed for desks and for indoor use in offi ces. Do not The DESKLINE® DL5/DL6 system is to be connected as shown on fi gure 4. Each DL5/ use it in industrial kitchens or in other enviroments that have to be cleaned with aggressive DL6 is to be connected to the sockets on the control box by means of the motor cables, detergents.

  • Page 20: Reset Procedure

    eLift Leg Troubleshooting Guide Symptom Problem Solution Loss of power Be sure unit is plugged into a live circuit. Loose electrical connections Make sure all electrical connections are securely plugged into the control box. 1. Raise the worksurface by pressing the “Up” button. Object encountered under 2.

  • Page 21: Warranty Statement

    Warranty Statement WE WILL MAKE IT RIGHT FOR YOU! Spectrum is committed to provide complete customer satisfaction. Each of our products is manufactured from the best materials available and each product is stringently monitored throughout the production process through our P.A.C.E. program (Product Assurance to meet Customer Expectations). We expressly warrant that Spectrum products will be of good quality and workmanship and free from defect for the period set out in the warranty table below from the date of delivery.
