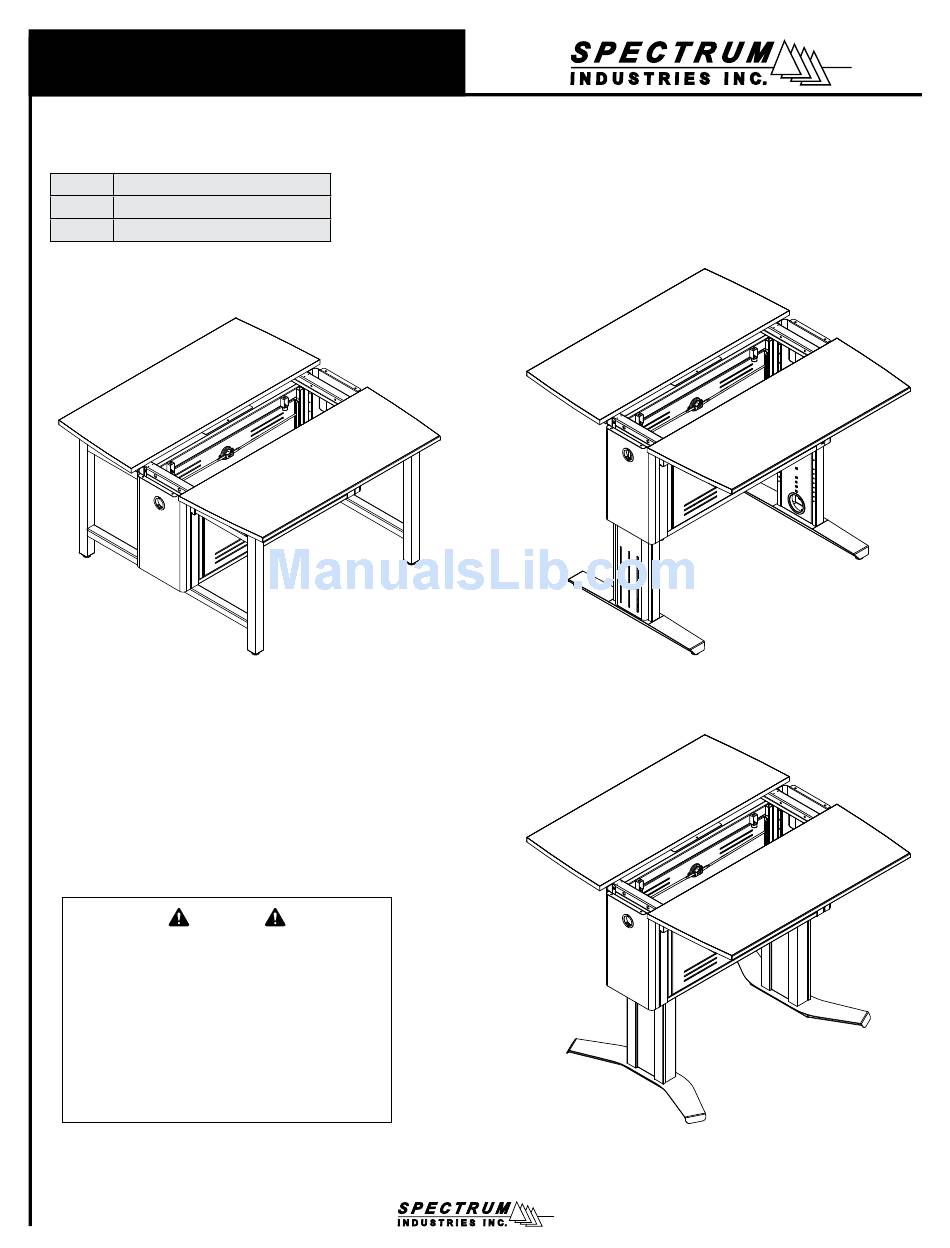

Owner's Manual
InVision Access
37115
with fixed legs
37116
with set-and-go (adjustable) legs
37117
with eLift (electric adjustable) legs
Fixed legs
Important
Before using this product:
• Read this manual
• Comply with all safety and operating instructions
• Ensure all parts and correct quantities are included
Any parts damaged during shipment must be reported
within 5 days of receipt. To report information regarding
missing parts or damage, to purchase parts or acces-
sories, or if you have any questions, please contact us.
Thank you for purchasing Spectrum products!
Spectrum Industries, Inc
925 First Avenue, Chippewa Falls, WI 54729 USA
800 235 1262
715 723 6750
www.spectrumfurniture.com
Table
Set-and-go legs
eLift electric legs
0115700R2 Page 1 of 17

Advertisement

loading
Need help?

Need help?

Do you have a question about the 37115 and is the answer not in the manual?

Questions and answers

Summary of Contents for Spectrum Industries 37115

  • Page 1 Thank you for purchasing Spectrum products! Spectrum Industries, Inc 925 First Avenue, Chippewa Falls, WI 54729 USA eLift electric legs 800 235 1262 715 723 6750 www.spectrumfurniture.com...
  • Page 2 If servicing is unplug by pulling only on the cord. necessary, please contact Spectrum Industries for assistance. • Do not step on, drive over, drag, or place objects on power cords. • For added safety, plug into a grounded outlet controlled by a GFI (Ground Fault Interrupter) circuit breaker.
  • Page 3: Assembly & Set-Up

    Assembly / Setup 1. Unpack & detach from pallet Phillips screwdriver 1. Remove outer sleeve. Figure 1A. 2. Unscrew the (8) Phillips head wood screws securing the table core to the pallet. Figure 1B. 3. Without using a utility knife, open the rest of the boxes. Cordless drill with long magnetic (best)
  • Page 4 2. Install glides and end caps glide wrench (included) 1. With the table still upside-down, install the glides onto the legs (4) on fixed / set- and-go, (6) on eLift legs. Figure 2. 2. Install the end caps into the tube ends. Note: If you will be using an optional display stand, do not install all 4 end caps.
  • Page 5 3. Adjust leg height (set-and-go legs only) Note: If you have a table Phillips with fixed or eLift legs, screwdriver proceed to step 4. Note: Tables with adjustable-height set-and-go legs can be adjusted to have a worksurface height between 29”- 42” (in 1” or 2” increments). Cordless drill Figure 3A.
  • Page 6 4. Install optional end worksurfaces Phillips screwdriver 1. Carefully flip the table upright-this will take 2-3 people. 2. Tip the 4 cantilever end worksurface brackets while inserting into the leg slots. Figure 4A. Cordless drill 3. Push down firmly on the end of each arm to “set” the arm with long magnetic into position.
  • Page 7 5. Attach support plates to side worksurfaces Phillips screwdriver 1. Place the side worksurfaces laminate-side down onto a non-abrasive surface. Figure 5. 2. Attach a support plate to each worksurface with (2) Cordless drill 1/4-20 x 5/8” PHM screws and tighten securely. with long magnetic 1/4-20 x 5/8”...
  • Page 8 Cord management options Cords and wiring can be channeled cleanly throughout the unit using grommet holes and openings in the bottom of the technology compartment. Fixed legs Set-and-go legs The 3.5” grommet inside the legs can be used to route power / data cords up from the floor.
  • Page 9 eLift operating instructions - eLift equipped tables only Phillips screwdriver 1. Attach the control button bracket under the end worksurface with (2) #8 x 5/8” PHSM screws and pre-drilled pilot holes in the center of the end worksurface. 2. Push the control button onto the bracket. 3.
  • Page 10 Please double check your device specifications to ensure adequate space around the cutout. Note: Spectrum Industries, Inc, manufactures furniture that supports a wide variety of power and com- munication devices from a variety of manufacturers. The Invision Access center console panel and under- table cord channel is compatible with many Extron, Crestron, Altinex, AMX, and other devices.
  • Page 11 Access Display Stand - 37120 display mount • Provides secure and hidden wiring channel to technology compartment • Two-position tilting universal monitor mount • Laminated panel matches laminate color and can be drilled to support other custom monitor mounts monitor size range 37”-63”...
  • Page 12 InVision Access Display Shroud - 95532 • Helps project sound from rear monitor speakers to audience • Protects monitor and hides wires • Requires Access Display Stand 37120 • Adjustable width • Upper and lower height mounting options • Made of aluminum monitor size range for one 37”-63”...
  • Page 13 InVision Access Dual Display Mount - 37124 Two support tubes • For two monitors up to 42” • Requires Access Display Stand 37120 (includes a second monitor mount and 2 support tubes) • Two-position tilting universal monitor mount • Adjustable left-to-right Second monitor mount monitor size range...
  • Page 14 InVision Access Equipment Rack 8RU - 37123 • Provides rack mounting next to table • Single cam locking front and rear panels • Glides and casters included for stationary or mobile use (glides can be unscrewed to raise unit off casters for stationary use) •...
  • Page 15: Safety Information

    Electric actuator information (eLift equipped tables only) Warning! Only for EU markets • This appliance can be used by children aged from 8 years and above and persons with Failure to comply with these instructions may result in accidents involving serious person- reduced physical, sensory or mental capabilities or lack of experience and knowledge if al injury.
  • Page 16: Reset Procedure

    eLift Leg Troubleshooting Guide Symptom Problem Solution Loss of power Be sure unit is plugged into a live circuit. Loose electrical connections Make sure all electrical connections are securely plugged into the control box. 1. Raise the worksurface by pressing the “Up” button. Object encountered under 2.
  • Page 17: Warranty

    • 10 Years • Cart Chassis • Lectern Chassis DESIGNED AND ASSEMBLED IN CHIPPEWA FALLS WISCONSIN.USA 925 FIRST AVENUE, CHIPPEWA FALLS, WI 54729 / 800-235-1262 / 715-723-6750 / WWW.SPECTRUMFURNITURE.COM © 2017 Spectrum Industries Inc., All rights reserved. 0115700R2 Page 17 of 17...
