Owner's Manual
Director Lectern
55213

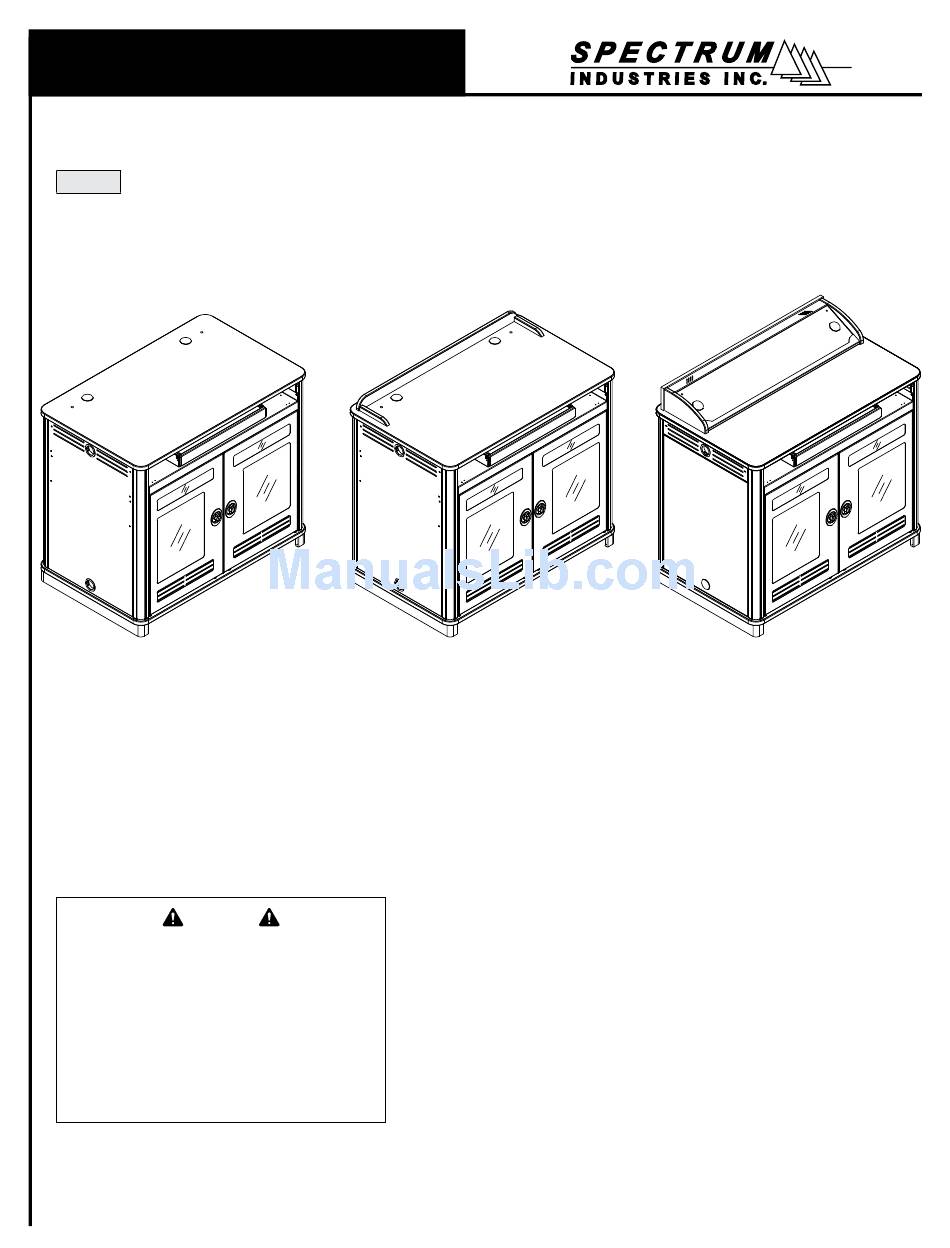

Shown with plain worksurface,
metal side panels, and
centered keyboard tray
Important
Before using this product:
• Read this manual
• Comply with all safety and operating instructions
• Ensure all parts and correct quantities are included
Any parts damaged during shipment must be reported
within 5 days of receipt. To report information regarding
missing parts or damage, to purchase parts or acces-
sories, or if you have any questions, please contact us.
Thank you for purchasing Spectrum products!
Spectrum Industries, Inc
925 First Avenue, Chippewa Falls, WI 54729 USA
800 235 1262
715 723 6750
www.spectrumfurniture.com
™
Shown with surround,
metal side panels, and
centered keyboard tray
Media Manager Series

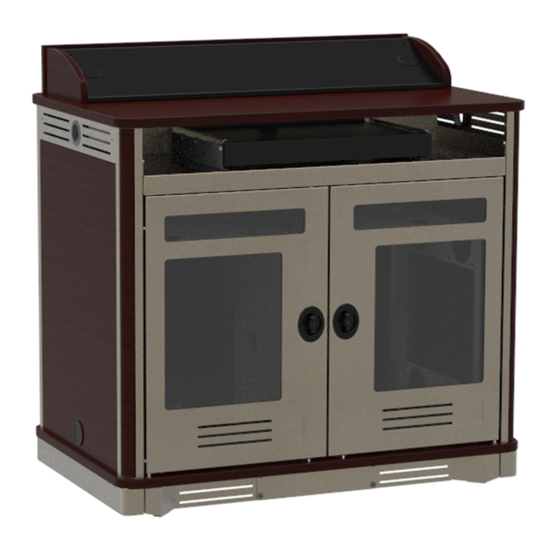

Shown with Overbridge Control
Console, laminate side panels,
and centered keyboard tray
0120148 Page 1 of 13
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Spectrum Industries Director Lectern
Summary of Contents for Spectrum Industries Director Lectern
- Page 1 Owner’s Manual Media Manager Series Director Lectern ™ 55213 Shown with plain worksurface, Shown with surround, Shown with Overbridge Control metal side panels, and metal side panels, and Console, laminate side panels, centered keyboard tray centered keyboard tray and centered keyboard tray...
- Page 2 If servicing is necessary, adults or with adult supervision. please contact Spectrum Industries for assistance. Warning - Relocating audio and/or video equipment to furniture not specifi cally designed to support audio and/or video equipment may result in death or serious injury due to the furnishing collapsing or over turning onto a child.
- Page 3 Figure 1B. Audience-side skirt 8-32 x 1/2” PH Thread-cutting screws (4 required) Skirt Assembly Director Lectern Side skirt Figure 1A Instructor-side Figure 1B 3. Hook the skirt keyhole slot at the end of each side skirt over the pre- installed #14 x 7/8”...
- Page 4 2. Quick-release Doors Each door can easily be removed for easier access using the quick- release hinge lever located on the upper hinge pin of each door. Figure 2. To remove, lift the lever while lifting out the door. Quick-release lever Figure 2 3.
- Page 5 Optional Rack Cubes Phillips screwdriver The removable rack cubes (13RU) simplify installation and provide the ability to integrate equipment remotely and be installed into the lectern at a later date. They provide mounting capabilities for multiple cooling fans if necessary. Compatible with most 4.75” cooling fans with 4.13” mounting hole spacing (12 mounting locations available per cube).
- Page 6 Optional Flip-up Shelf Shelf grommet Upper mounting position Lower mounting position Release lever (press here) Figure 7B Figure 7A Operation The shelf will automatically lock into place when lifted into the horizontal position with the levers released. To lower or flip-up the shelf, press and hold the levers under each folding shelf bracket at the CAUTION same time while slowly lowering or raising the shelf.
- Page 7 2” Grommet Max cutout area Note: The max cutout areas shown are general recommendations only. Figure 8B The final location of the cutout(s) on the panel will be determined by: • The size of the cutout(s) • The vertical depth of the installed device •...
- Page 8 8. Install (4) 1/4-20 x 40mm JC bolts through the base panel mounting holes. panel to secure, and tighten securely. Figure 9C. 1/4-20 x 40mm JC bolts (4 required) Media Director Lectern Toe kick panel anchored to floor Figure 9B Figure 9C...
- Page 9 • Can be secured to base panel • The Director Lectern can • Cooling fan compatible accommodate up to two rack cubes • Color: black • Polyethylene slides on bottom...
- Page 10 • Adds an additional 2RU to lectern • Not compatible with keyboard tray (Keyboard Tray needs to be removed) • The Media Director Lectern can accommodate up to two rack rail kits • Installed under worksurface on left, or right side...
- Page 11 Overbridge Insert Panel 96510 - Blank panel 96510mod - Panel with cutout(s) • Panel for overbridge version only (overbridge not available separately) • Contact Spectrum to specify cutout size(s) and position(s) • Includes two 2” [5.08 cm] grommets with covers Dimensions: 41.25”W [104.8 cm] x 9”D [22.9 cm] x .79”H [2 cm] Unit weight:...
- Page 12 ™ Cove Power Module - 99044 • Two power receptacles • Requires worksurface cutout • Two USB charge ports • ETL listed (not data-compatible) • Available in Black or Silver • Thumbscrew clamps Cutout required: 5.25”W [13.3 cm] x 2”D [5.1 cm] Power cord: 9’...
- Page 13 • 10 Years • Cart Chassis • Lectern Chassis DESIGNED AND MANUFACTURED IN CHIPPEWA FALLS WISCONSIN.USA 925 FIRST AVENUE, CHIPPEWA FALLS, WI 54729 / 800-235-1262 / 715-723-6750 / WWW.SPECTRUMFURNITURE.COM © 2016 Spectrum Industries Inc., All rights reserved. 0120148 Page 13 of 13...
