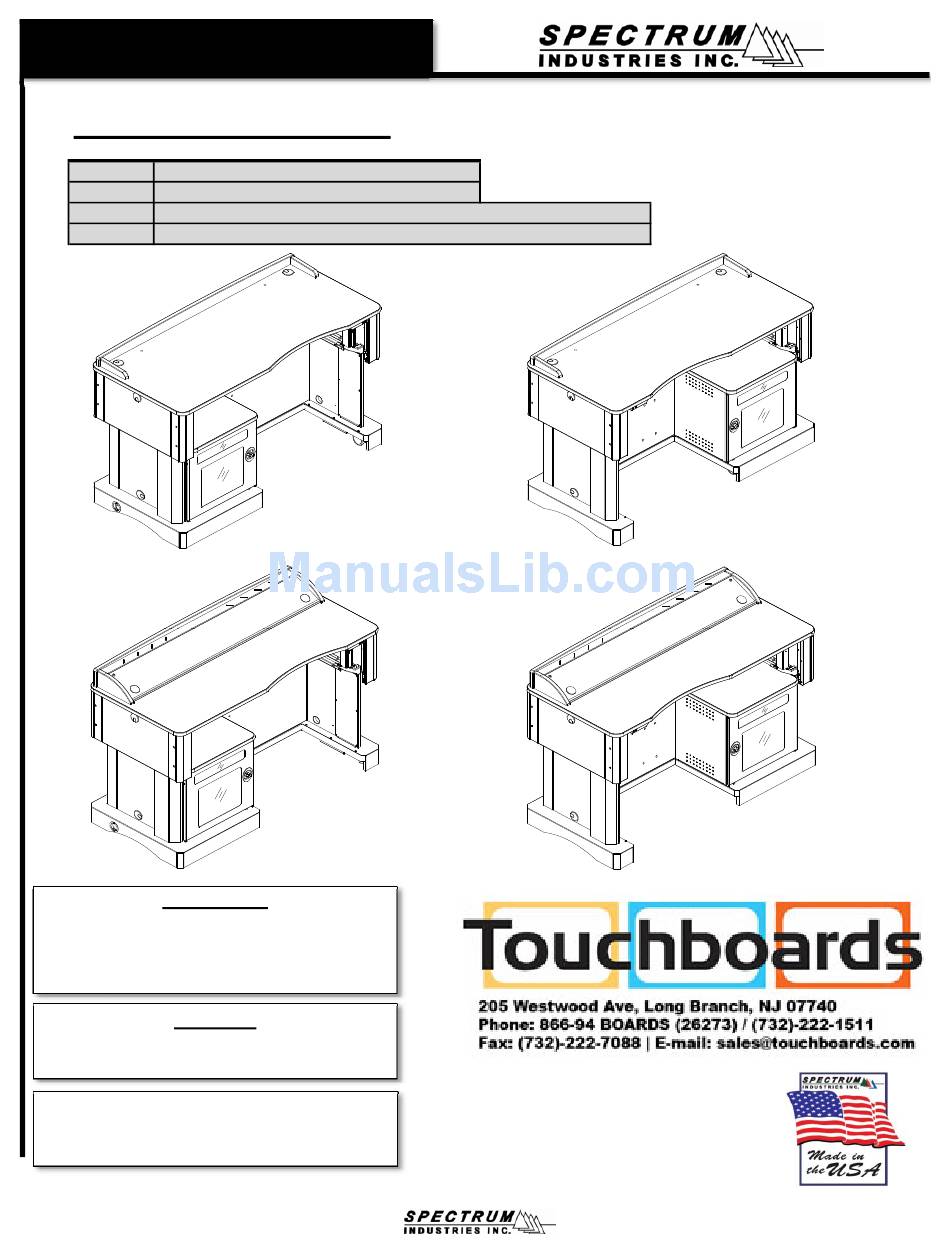

Owner's Manual
Freedom Lectern XRS
Freedom Lectern XRS (62"W) w/ LH rack rail
55308
Freedom Lectern XRS (62"W) w/ RH rack rail
55305
Freedom Lectern XRS (62"W) w/ LH rack rail & blank overbridge
55309
Freedom Lectern XRS (62"W) w/ RH rack rail & blank overbridge
55306
IMPORTANT:
Before you begin, please make sure all parts and proper
quantities are included. Any parts damaged during
shipment must be reported within 15 days of receipt. To
report information regarding damages or if you have any
questions, please call 1-800-235-1262.
CAUTION:
Before using this product, read this manual and follow all
safety and operating instructions.
To purchase parts or accessories, please contact us at
www.spectrumfurniture.com
1-800-235-1262
Thank you for choosing Spectrum products!
Spectrum Industries, Inc.
Chippewa Falls, WI 54729, USA
55308
Freedom Lectern XRS
w/ LH Rack Rail
55309
Freedom Lectern XRS w/ LH
Rack Rail & overbridge
55305
Freedom Lectern XRS
w/ RH Rack Rail
55306
Freedom Lectern XRS w/ RH
Rack Rail & overbridge
0109667R3 Page 1 of 14
Advertisement
Related Manuals for Spectrum Industries Freedom XRS 55308
Summary of Contents for Spectrum Industries Freedom XRS 55308
- Page 1 Before using this product, read this manual and follow all safety and operating instructions. To purchase parts or accessories, please contact us at www.spectrumfurniture.com 1-800-235-1262 Thank you for choosing Spectrum products! Spectrum Industries, Inc. Chippewa Falls, WI 54729, USA 0109667R3 Page 1 of 14...
-
Page 2: Setup And Operation
Safety • Read this owners manual before operation WARNING • For indoor use only. Do not install or store the unit where it will be exposed to weather. Keep unit dry. When unloading the unit from a pallet, do NOT lift by the •... - Page 3 Lift Mechanism Initial Set-up, Operation, & Reset Procedure Preparation: ● Read all instructions before doing the set-up or reset procedures. ● Make sure lectern is plugged-in using 15-foot, 15-amp power cord located on lower/audience-side of side panel. ● Close cabinet door. Damage may occur to cabinet door if left open during worksurface movement. ●...
-
Page 4: Cord Management
Presenter-Side Panel Removal / Replacement Tools Required: When the worksurface is raised to the highest position, the two presenter-side panels can be removed to access the components inside the lectern such as the actuators, control box, connections, safety limit switch, and power strip. 4mm Hex Wrench To remove the panels: To replace the panels:... - Page 5 Quick-Release Door Hinge Operation To easily remove and replace the door for better access to the rack rail and or Slide-in Rack Cube, do the following: To remove door: 1. Open door wide enough to be able to access the quick-release hinge. 2.
- Page 6 Optional Folding Shelf Operation The optional folding shelf, when raised, can be used as an additional worksurface. To raise the shelf: 1. Lift the shelf into a horizontal position. 2. Listen for shelf brackets to "click" and lock into place. Release Lever To lower the shelf: 1.
- Page 7 Overbridge Cutouts (Freedom XRS w/ blank overbridge models only) Tools Required: 1. Retract lectern into the lowered "safe mode" position by resetting the lift mechanism. (See step 1-5 of reset.) 2. Using a 4mm hex wrench, unscrew the (2) JC bolts and remove the overbridge panel. 3.
- Page 8 4. Locate and mark the exact cutout area(s) on the panel. Note: Using masking tape on cut lines will minimize laminate chipping while cutting. 5. Make cutouts in the overbridge panel using a jigsaw or router. 6. Reinstall overbridge panel and secure with the (2) 1/4-20 JC bolts. 7.
- Page 9 Freedom XRS Options Removable Logo Panel/Plate Folding Shelf Pull-out Worksurface / Tray (shown on student-side) mounts on left or right-side 23"W x 27"D "W x 14 "D 55303 (50 lbs max load) (height between worksurface and tray is 55301 adjustable from 1-1/4" to 2-9/16") 55302 Replacement Key Set Overbridge w/ Rack Rail (3RU)
- Page 10 Note: The 2 existing 11RU rack rails in the rack cabinet must be removed and used in the rack cube assembly. The cube has front and rear rack rails (9RU available per set) and polyethylene slides on the bottom for easy movement. Attachment to the rack cabinet is not required.
- Page 11 Rack-mount Accessories Note: Rack-mount equipment greater than 19-1/2" in depth will not fit within the slide-in cube. The following Spectrum rack-mount options will not fit: #97503 Pull-out Shelf #97517 LT-4 Laptop Storage Unit Verify depth dimension of all equipment to be installed in the cube. Cantilever Shelf (3RU) Locking Drawer (2RU) Cantilever Shelf (2RU)
- Page 12 Freedom XRS Troubleshooting Guide Symptom Diagnostic Action Loss of Power Be sure unit is plugged into a live circuit. Make sure all electrical connections are Loose electrical connections securely plugged-in to the control box. See wiring diagram on p.13 for reference. 1.
- Page 13 Freedom XRS Wiring Diagram Up/Down Buttons Safety Limit Switch Cabinet Worksurface Pressure Sensor To Wall Power Strip Outlet Cord Reel Actuator Actuator Actuator Control Box Note: When the worksurface is extended, the two rear panels can be removed to access this section of the lectern.
-
Page 14: Warranty
Warranty WE WILL MAKE IT RIGHT FOR YOU! We guarantee all Spectrum products to be free of all defects in materials and workmanship, for the original owner, for a period of ten years. Any item deemed defective by Spectrum or the original manufacturer, under normal use conditions, will be repaired or replaced at Spectrum’s discretion.
