Operation and Maintenance Manual

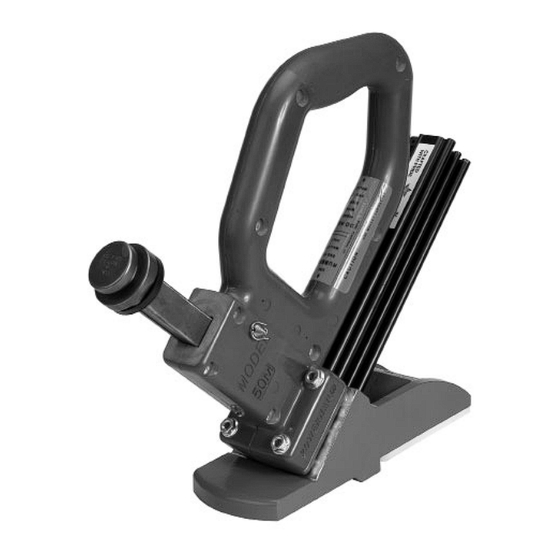

MODEL 50M MANUAL POWERNAILER
FOR TONGUE AND GROOVE FLOORING 3/8" TO 5/8"
Read this manual before you use this Nailer. Follow all safety warnings and instructions.
If you are uncertain about the operation of the Nailer, call us directly at 1-800-323-
1653 for assistance or contact the closest Powernail Dealer for help. Please retain this
information for future reference.
1300 Rose Road, Lake Zurich, IL 60047
Phone: 1-800-323-1653
Website: www.powernail.com
WARNING
®
CO.
®
03.25.08
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Powernail Powernailer 50M
Summary of Contents for Powernail Powernailer 50M
- Page 1 Read this manual before you use this Nailer. Follow all safety warnings and instructions. If you are uncertain about the operation of the Nailer, call us directly at 1-800-323- 1653 for assistance or contact the closest Powernail Dealer for help. Please retain this information for future reference.
-
Page 2: Operation
Nailer. DESCRIPTION The Model 50M Powernailer® is the latest model designed to bring Powernail quality to a manual nailer. The Powernailer® Model 50M—designed for use with only 1" , 1-1/4", 1-1/2" and 1-3/4" (18 gage) Powercleats® nails—provides several distinct advantages. - Page 3 WARNING Do not use any nails other than Powernail Powercleats® (18 gage) nails, which are specifi cally designed for use in the Model 50M Powernailer. Powercleats® (18 gage) nails are available in 1", 1-1/4", 1-1/2" or 1-3/4" lengths to accommodate 3/8", 1/2", 5/8"...
- Page 5 Model 50M Parts List ITEM # PART NO. DESCRIPTION Qty Req 08-50M-00-630 BODY ASSEMBLY 08-50M-00-150 FOOT 08-50M-00-380 DRIVING BLADE 07-50M-00-370 PLUNGER 08-250-00-450 PLUNGER SPRING 08-250-00-410 PLUNGER SPRING PIN 08-250-00-640 ROLLER PIN 08-250-00-740 1/4-20 X 1-3/4 S.H.C.S. (FOOT) 08-250-00-750 1/4-20 FLANGE NUT 09-200-3034 PUSHER SPRING 09-200-3057...
- Page 6 WARNING Never hit the Nailer with excessive force or with the metal end of the mallet, this will damage the nailer. Before each use, check all screws to be sure they are tight. Shock and vibration can loosen screws. Do not over tighten any screw. TO CLEAR A NAIL JAM: 1.
- Page 7 POWERCLEATS LENGTH DETERMINATION CHART This chart will assist you in determining the proper length of Powercleats to use for various thicknesses of fl ooring. Approximate vertical penetration of the Powercleat under the hardwood fl oor is shown for each application. This is only a guide.
- Page 8 POWERNAIL ® 1300 Rose Road, Lake Zurich, IL 60047 Phone: 1-800-323-1653 Website: www.powernail.com...
