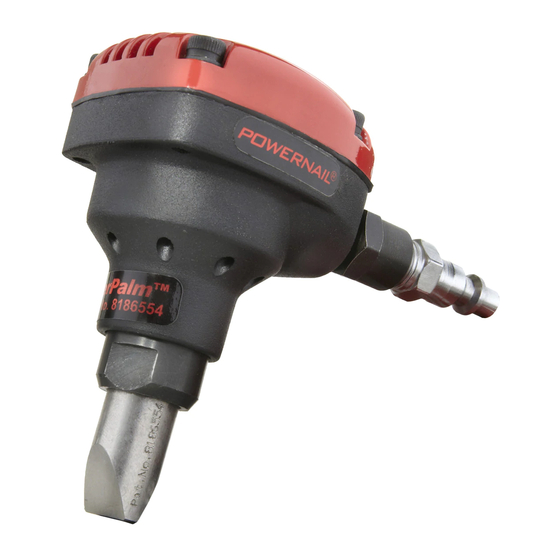

PowerPalm Pneumatic Nailer
OPERATION AND MAINTENANCE MANUAL
MANUAL DE OPERACION Y DE MANTENIMIENTO
MANUEL D'INSTRUCTIONS ET D'ENTRETIEN
Read this manual before you use this Palm Nailer. Follow all safety warnings and instructions. If you
are uncertain about the operation of the Palm Nailer, call us directly at 1-800-323-1653 for assistance or
contact the closest Powernail Dealer for help. Please retain this information for future reference.
POWERNAIL
™
02-PALM001
WARNING
®
CO.
Pat. No. 8186554
REV 12.10.12
Advertisement
Table of Contents
Related Manuals for Powernail PowerPalm 02-PALM001
Summary of Contents for Powernail PowerPalm 02-PALM001
- Page 1 Read this manual before you use this Palm Nailer. Follow all safety warnings and instructions. If you are uncertain about the operation of the Palm Nailer, call us directly at 1-800-323-1653 for assistance or contact the closest Powernail Dealer for help. Please retain this information for future reference. REV 12.10.12...
-
Page 2: Table Of Contents
POWERNAIL’s specifications in effect at the time of Product shipment. POWERNAIL will repair or replace, at its option, any Powernailer® that does not conform to this warranty. Claims must be made no later than fifteen (15) days after the end of the warranty period. -
Page 3: Safety Instructions
Nailer is intended for use installing wood flooring and is not to be used for purposes not specified in the operations manual. Do not use any nails other than Powernail Powercleats Nails which are specifically designed for use in any Powernailer. Powercleats Nails are available in various lengths. Contact your Powernail Dealer for Powercleats Nails. -
Page 4: Safety Labels
SAFETY WARNINGS & CAUTIONS Read and understand all safety instructions and tool labels before operating. • Always wear safety glasses with side shields that meet ANSI Z87.1 requirements when operating the tool. Make sure all others in work area wear safety glasses. •... -
Page 5: Air Supply / Maintenance
AIR SUPPLY & MAINTENANCE Your PowerPalm is fully assembled when you receive it. Before using it, attach the air line and desired air system accessories such as air filters and/or oilers. Be sure the air hose is depressurized when installing or removing adapters to the air line. Please refer to the Parts List for part names and item numbers. -
Page 6: Operating The Tool
The operator should apply a slight amount of pressure to activate the tool. Do not force the tool. Powernail Palm Nailer Tool-Tips 1) Lightly place one nail in the guide bushing 2) Do not push harder than necessary to activate nailer 3) Nailer will drive &... -
Page 7: Finishing Rows (Pic)
POWERPALM USE 1. Connect the tool to the air supply. Make sure the air pressure is in correct range for the tool (70-110 psi). 2. Point tool in a safe direction, lightly place one nail in the guide bushing tip. A magnet in the bushing will hold the nail. -
Page 8: Schematic / Parts List
POWERPALM SCHEMATIC VIEW PARTS LIST PART NAME Kit or Sold Separately PART NO. 1. SCREW 2. EXHAUST COVER 3. GASKET Separately 09-3000-3003 4. O-RING 38.1 (QTY 2) (In Palm Seal-Kit) 09-3000-3004 5. JOINT GUIDER 6. SLIDE COVER 7. O-RING 41-1.8 (QTY 2) (In Palm Seal-Kit) 09-3000-3007 8. -
Page 9: Troubleshooting Chart
Warm tool up so lubricant and seals will properly in operating temperature allow to to function correctly. exesive cold. For Step-by-Step Videos and Instructions, Visit our Web Site at: www.Powernail.com Free technical support, contact Powernail USA at 800-323-1653 or 847-847-3016... -
Page 11: Cleat Depth Chart
The TOOL BAG holds all Powernailer® configurations including the FLEX and POWER ROLLER models. The Powernail TOOL BAG is built tough with a double wall of padded industrial nylon to protect your tools. Corners are reinforced with leather for durability. -
Page 12: Powernail Company Info
POWERNAIL COMPANY, INC. 1300 Rose Road, Lake Zurich, IL 60047 US Phone: 1-800-323-1653 or 847-847-3000 www.powernail.com...
