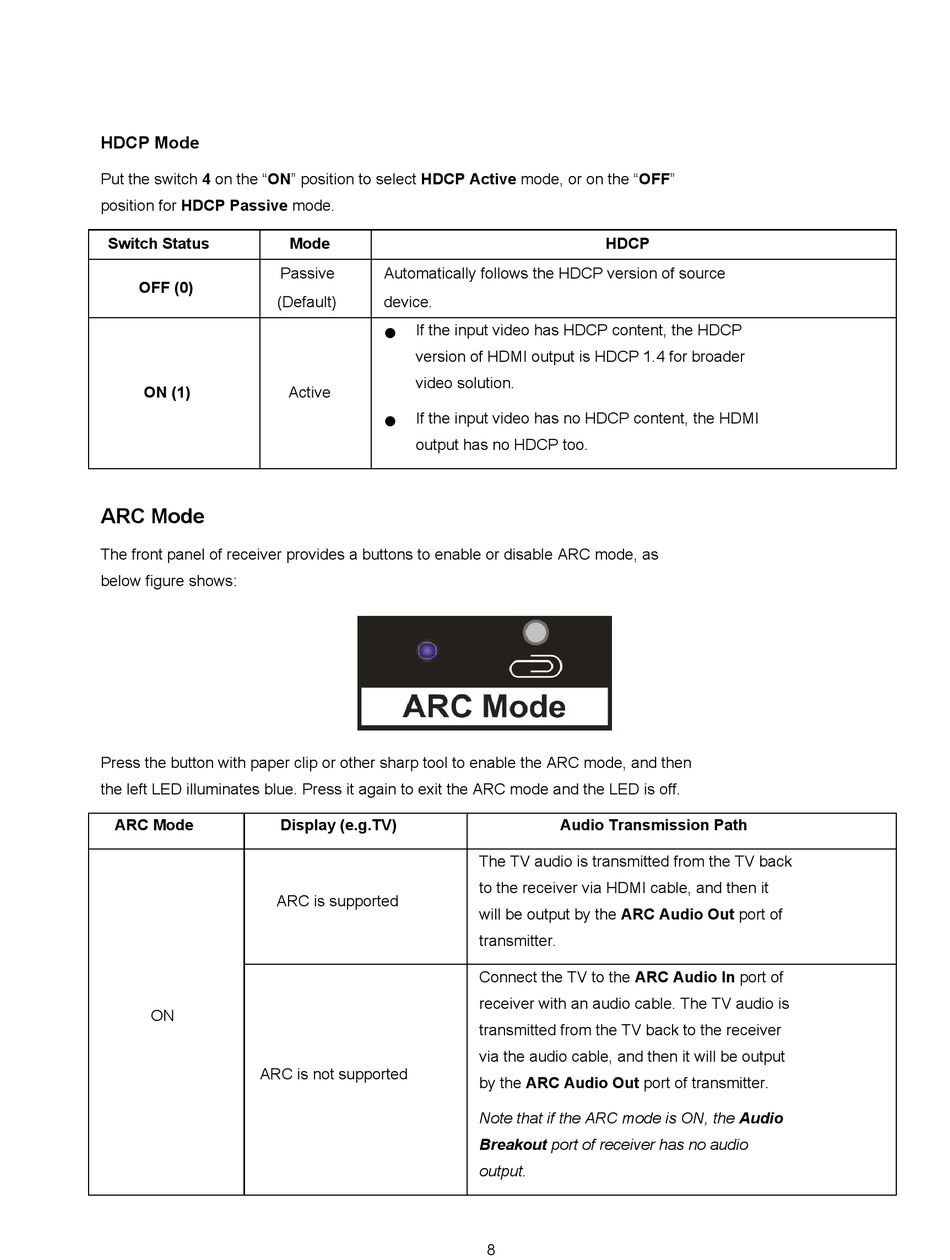

HDCP Mode

Put the switch 4 on the "ON" position to select HDCP Active mode, or on the "OFF"
position for HDCP Passive mode.
Switch Status
OFF (0)
(Default)
ON (1)

ARC Mode

The front panel of receiver provides a buttons to enable or disable ARC mode, as
below figure shows:
Press the button with paper clip or other sharp tool to enable the ARC mode, and then
the left LED illuminates blue. Press it again to exit the ARC mode and the LED is off.
ARC Mode
ARC is supported
ON
ARC is not supported
Mode
Passive Automatically follows the HDCP version of source
device.
If the input video has HDCP content, the HDCP
⚫
version of HDMI output is HDCP 1.4 for broader
video solution.
Active
If the input video has no HDCP content, the HDMI
⚫
output has no HDCP too.
Display (e.g.TV)
HDCP
Audio Transmission Path
The TV audio is transmitted from the TV back
to the receiver via HDMI cable, and then it
will be output by the ARC Audio Out port of
transmitter.
Connect the TV to the ARC Audio In port of
receiver with an audio cable. The TV audio is
transmitted from the TV back to the receiver
via the audio cable, and then it will be output
by the ARC Audio Out port of transmitter.
Note that if the ARC mode is ON, the Audio
Breakout port of receiver has no audio
output.
