- Page 1 USER MANUAL 160ft, 1080p hdmi extender over single cat5e/6 JTD-ID: 229 | Model Number: JTECH-ex2 J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM...
- Page 2 Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Notice Our company reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice.
-
Page 3: Table Of Contents
Table of Contents 1. Features ......................4 2. Specifications ....................4 3. Package Contents ................... 5 4. Panel Description ..................... 5 5. Connecting and Operating ................6 6. Maintenance ....................6 7. Warranty ......................6 8. Mail-In Service ....................6 9. -
Page 4: Features
1. Features High-definition resolution up to Full HD 1080P 60Hz YUV 4:4:4 • Transmit over 160ft. CAT5E/6 without signal loss • Supports 3D • Supports LPCM up to 7.1 / 24bit / 192KHz • 2. Specifications Operating Temperature Range 0 - +40°C (32 0 +104°F) Operating Humidity Range 5 –... -
Page 5: Package Contents

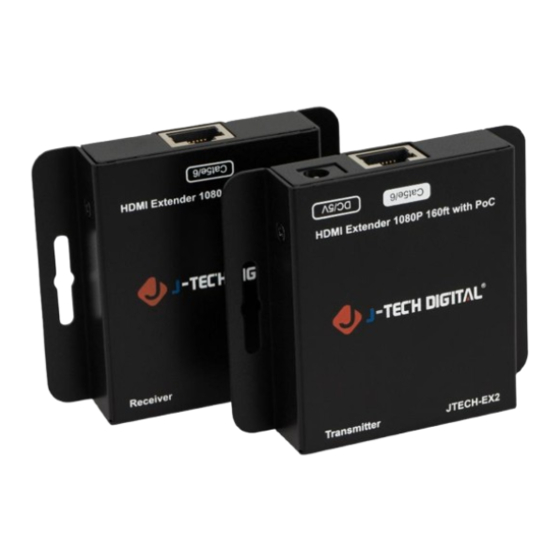

3. Package Contents (1) x Transmitter • (1) x Receiver • (1) x DC 5V/1A Power Adapter • (1) x User Manual • 4. Panel Description 1. Ethernet Port 2. DC 5V/1A Power Port 3. Power Indicator 4. HDMI Indicator 5. -
Page 6: Connecting And Operating
1. Ethernet Port 2. Power Indicator 3. HDMI Indicator 4. HDMI Output Port 5. Connecting and Operating Connect an HDMI signal source to the transmitter via HDMI cable • Connect a CAT5e/6 cable to both the ethernet port on the transmitter and the receiver •... -
Page 7: Limited Warranty Limits And Exclusions
9. Limited Warranty Limits and Exclusions This Limited Warranty ONLY COVERS failures due to defects in material or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, mis- adjustment of consumer controls, improper maintenance, power line surge, lightning damage,... - Page 8 WWW.JTECHDIGITAL.COM PUBLISHED BY J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM Page 8 of 8...
