DIP Switch Operation

EDID Management

The Extended Display Identification Data (EDID) is used by the source device to
match its video resolution with the connected display. By default, the source device
obtains its EDID from the first connected display. Meanwhile, since the displays with
different capabilities are connected to the extender, the DIP switch on the front panel
of transmitter can be used to set the EDID to a fixed value to ensure the compatibility
in video resolution.
The switch represents "0" when in the lower (OFF) position, and it represents "1" while
putting the switch in the upper (ON) position.

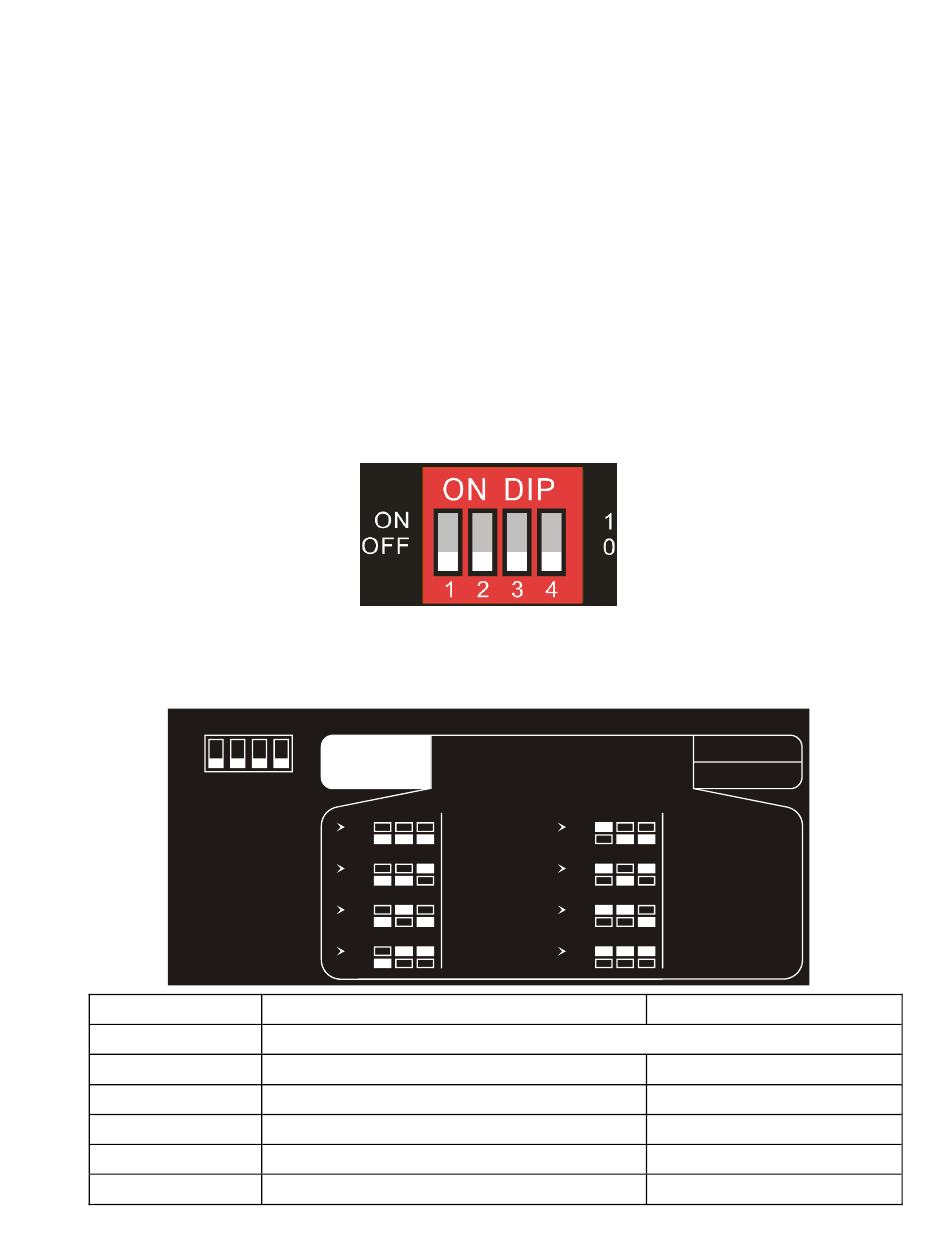

Switch 1~3 are used for EDID setting. The DIP switch status and its corresponding
setting are shown at the back of the product.
1 2 3 4
ON
OFF
Default
Switch Status
000
001
010
011
100
101
1
1
ON
0
OFF
1 2 3
ON
Pass Through
OFF
1 2 3
ON
1080p 2CH
OFF
1 2 3
ON
4K/30Hz 2CH
OFF
1 2 3
ON
4K/30Hz Multi-CH
OFF
Video Resolution
1080P
3840x2160@30Hz
3840x2160@30Hz
3840x2160@60Hz
3840x2160@60Hz
2 3
EDID Setting
1 2 3
ON
4K/60Hz 2CH
OFF
1 2 3
ON
4K/60Hz Multi-CH
OFF
1 2 3
ON
4K/60Hz HDR Multi-CH
OFF
1 2 3
ON
User Defined
OFF
Pass Through
6
4
HDCP Active
HDCP Passive
Audio Format
2CH
2CH
Multi-CH
2CH
Multi-CH
