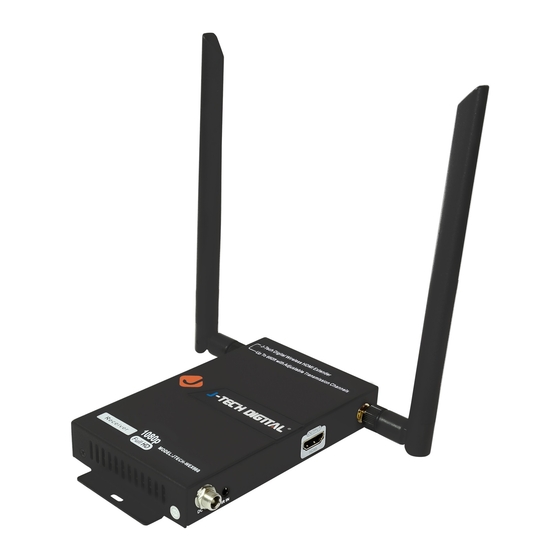

- Page 2 Please keep this manual for future reference. J-Tech Digital products are designed to make your A/V device use more convenient, comfortable and productive. The J-Tech Digital JTECH-WEX660 wireless HDMI extender allows the user to extend HD Audio &...
- Page 3 P A C K A G E C O N T E N T S : 1. HDMI Wireless Transmitter 1pc 5. User manual 1pc 2. HDMI Wireless Receiver 1pc 6. DC power adapter 2pcs 3. IR Transmitter cable 1pc 7.
- Page 4 POWER : Power indicator ST ATUS: System status indicator HDMI: HDMI input/output status indicator RESET : Factory Reset Button Wireless channel switch button CHANNEL: DC12V : 12V DC in jack IR OUT : Port for IR transmitter cable HDMI IN: HDMI input port HDMI OUT : HDMI loop output port R e c e iv e r ( R X ) FIG.3 RX Front Panel View...
- Page 5 O P E R AT IO N A N D C O N N E C T IO N : 1. Connect one HDMI cable from the HDMI source device (set top box, DVD player, streaming device) into the HDMI input port of the HDMI wireless TX.
- Page 6 n e l k e y o pe r a tio n i n s tr u c tio n s : Changing W ireless Channel: Press the “CHANNEL” key on the front panel of TX to cycle through multiple 5GHz wireless channels. If the product works unsteadily or the picture is intermittent, please try a different channel.
- Page 7 Enter the default login password: admin, click “Login” to open the settings interface. If you want to modify the login password, please click on the " Modify " button. After the password has been modified click "save" to save your changes and exit.
- Page 8 S P E C IF IC AT IO N S : T E C H -W E X 660 HDMI resolution ........... up to 1080P@50/60Hz HDMI Audio Format..........LPCM2.0/48KHz/16Bit HDMI Max bandwidth..............225MHz HDMI Max baud rate..............6.75Gbps Input/Output TMDS signal........0.5~1.5Volts p-p(TTL) Input/Output DDC signal ..........5Volts p-p (TTL) HDMI output cable distance.....≤40ft AWG26 HDMI standard cable Antenna type..........
- Page 9 N o te s : Please use the machine as instructed to preserve device longevity. 1. The machine should be placed in a location far from damp conditions, high-temperatures and dust. Please also avoid erosive and oxidative environments. 2. Avoid dropping, hitting or shaking the wireless extenders. 3.
- Page 10 1. Check the signal source is powered on and output is normal. Displays 2. Check the signal source output resolution “No signal” (ensure it is supported) 3. Make sure the HDMI cable is properly connected 1. Please adjust the angle of the antenna or adjust the placement 2.
