- Page 1 V1.0 USER MANUAL 4K@120Hz HDMI Extender Up To 150ft. JTD-3023 | JTECH-4K120Ex J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM...
- Page 2 Scan the QR code below or visit https://resource.jtechdigital.com/products/3023 to view and access detailed digital resources regarding this unit.
- Page 3 Safety Instructions: Before using this product, please carefully read the following safety instructions to ensure its proper use and keep this manual for future reference: To prevent electric shock, do not attempt to open the product. Only qualified personnel should perform any repairs or maintenance. Always place the product on a stable, flat surface to prevent it from falling.
-
Page 4: Table Of Contents
Table of Contents Introduction Features What’s Included Ports and Interfaces Specifications Connection Diagram Maintenance Warranty Mail-In Services Limited Warranty Limits and Exclusions... -
Page 5: Introduction

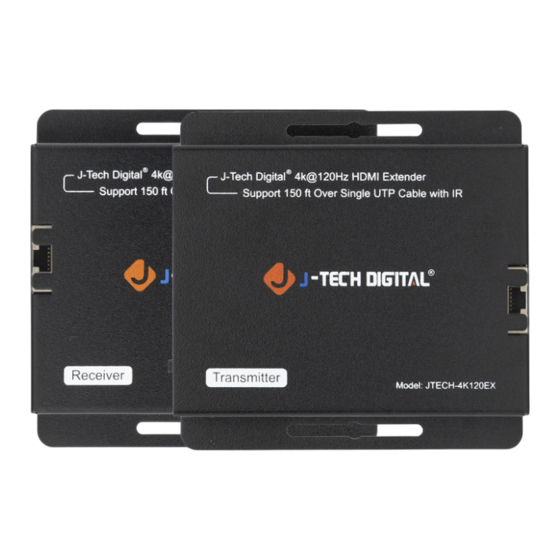

1. Introduction The JTECH-4K120EX HDMI over Ethernet extender helps deliver 4K UHD resolution at 120Hz up to 150ft. over a single CAT 6/7 cable. With support for HDR, you can now enjoy your favorite content in its full glory at 4 times the distance compared to a standard HDMI Cable. Bi-directional IR feature allows you to control your source device from the display’s location using the source devices remote, or control your display from the source device’s location using the display remote. -
Page 6: Ports And Interfaces
4. Ports and Interfaces Transmitter Receiver 1. IR In: IR signal input port 1. IR In: IR signal input port 2. IR Out: IR signal output port 2. IR Out: IR signal output port 3. HDMI Input: Connect to HDMI source 3. -
Page 7: Specifications
5. Specifications Input Ports 1 x HDMI, 1 x RJ45, 2 x 3.5mm Output Ports 1 x HDMI, 1 x RJ45, 2 x 3.5mm Extension Distance 150ft. for 4K 120Hz 4:4:4 Vertical Frequency Range 50 / 60Hz IR Frequency Range 20-60KHz Interlaced Resolutions (50 &... -
Page 8: Connection Diagram
6. Connection Diagram... -
Page 9: Maintenance
7. Maintenance Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner, or benzine to clean. 8. Warranty If your product does not work properly because of a defect in materials of workmanship, our company (referred to as “the warrantor”) will, for the length of the period indicated as below, “Parts and Labor (1) Year”, which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. - Page 10 WWW.JTECHDIGITAL.COM PUBLISHED BY J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM...
