Chapter 2____________________________________Zaxcom Miniature Digital Recorder User's Manual

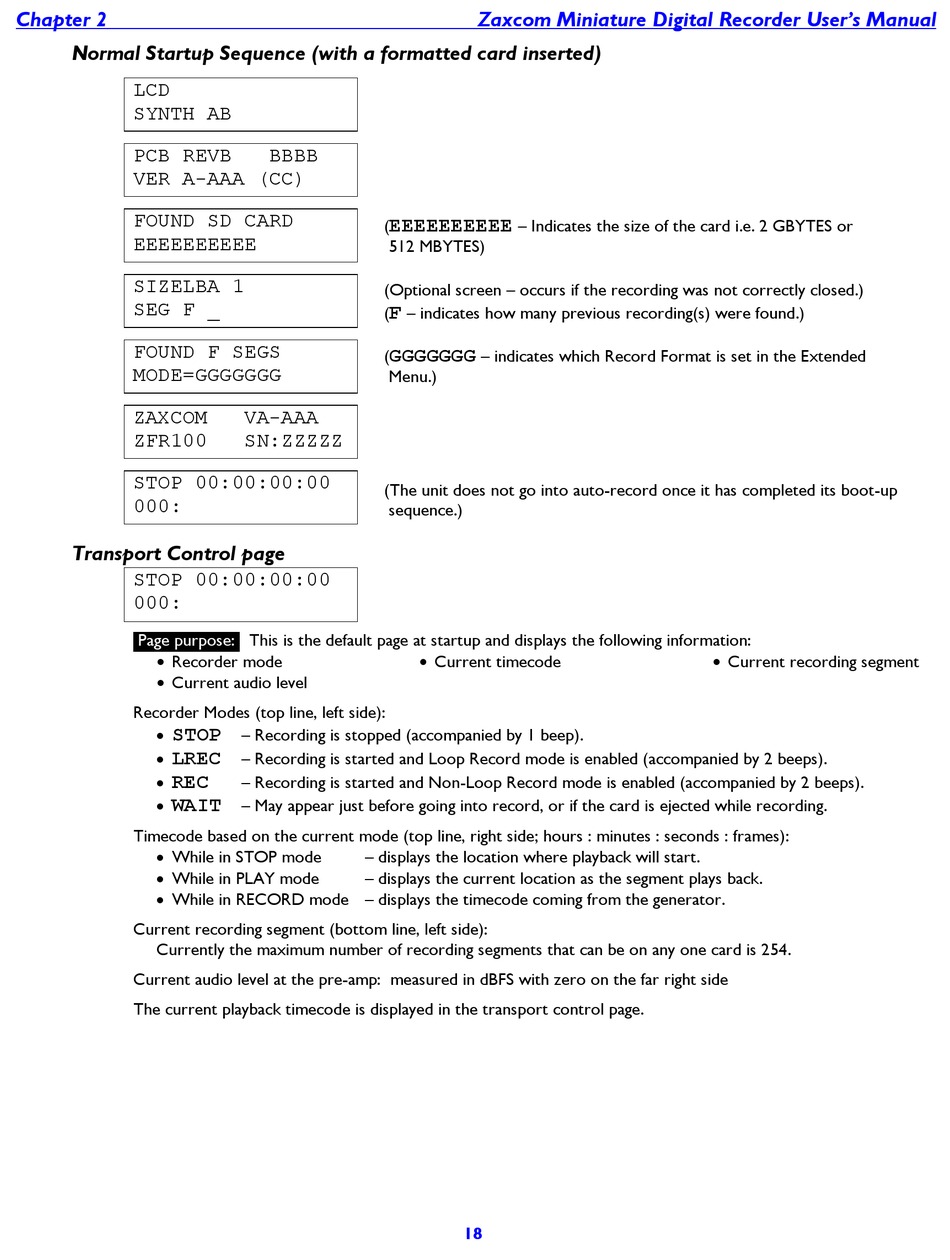

Normal Startup Sequence (with a formatted card inserted)

LCD
SYNTH AB
PCB REVB
VER A-AAA (CC)
FOUND SD CARD
EEEEEEEEEE
SIZELBA 1
SEG F _
FOUND F SEGS
MODE=GGGGGGG
ZAXCOM
ZFR100
STOP 00:00:00:00
000:

Transport Control page

STOP 00:00:00:00
000:
Page purpose:
• Recorder mode
• Current audio level
Recorder Modes (top line, left side):
 STOP
 LREC
 REC
 WAIT
Timecode based on the current mode (top line, right side; hours : minutes : seconds : frames):
 While in STOP mode
 While in PLAY mode
 While in RECORD mode – displays the timecode coming from the generator.
Current recording segment (bottom line, left side):
Currently the maximum number of recording segments that can be on any one card is 254.
Current audio level at the pre-amp: measured in dBFS with zero on the far right side
The current playback timecode is displayed in the transport control page.
BBBB
EEEEEEEEEE
(
512 MBYTES)
(Optional screen – occurs if the recording was not correctly closed.)
F
( – indicates how many previous recording(s) were found.)
GGGGGGG
(
Menu.)
VA-AAA
SN:ZZZZZ
(The unit does not go into auto-record once it has completed its boot-up
sequence.)
This is the default page at startup and displays the following information:
• Current timecode
– Recording is stopped (accompanied by 1 beep).
– Recording is started and Loop Record mode is enabled (accompanied by 2 beeps).
– Recording is started and Non-Loop Record mode is enabled (accompanied by 2 beeps).
– May appear just before going into record, or if the card is ejected while recording.
– displays the location where playback will start.
– displays the current location as the segment plays back.
– Indicates the size of the card i.e. 2 GBYTES or
– indicates which Record Format is set in the Extended
18
• Current recording segment
