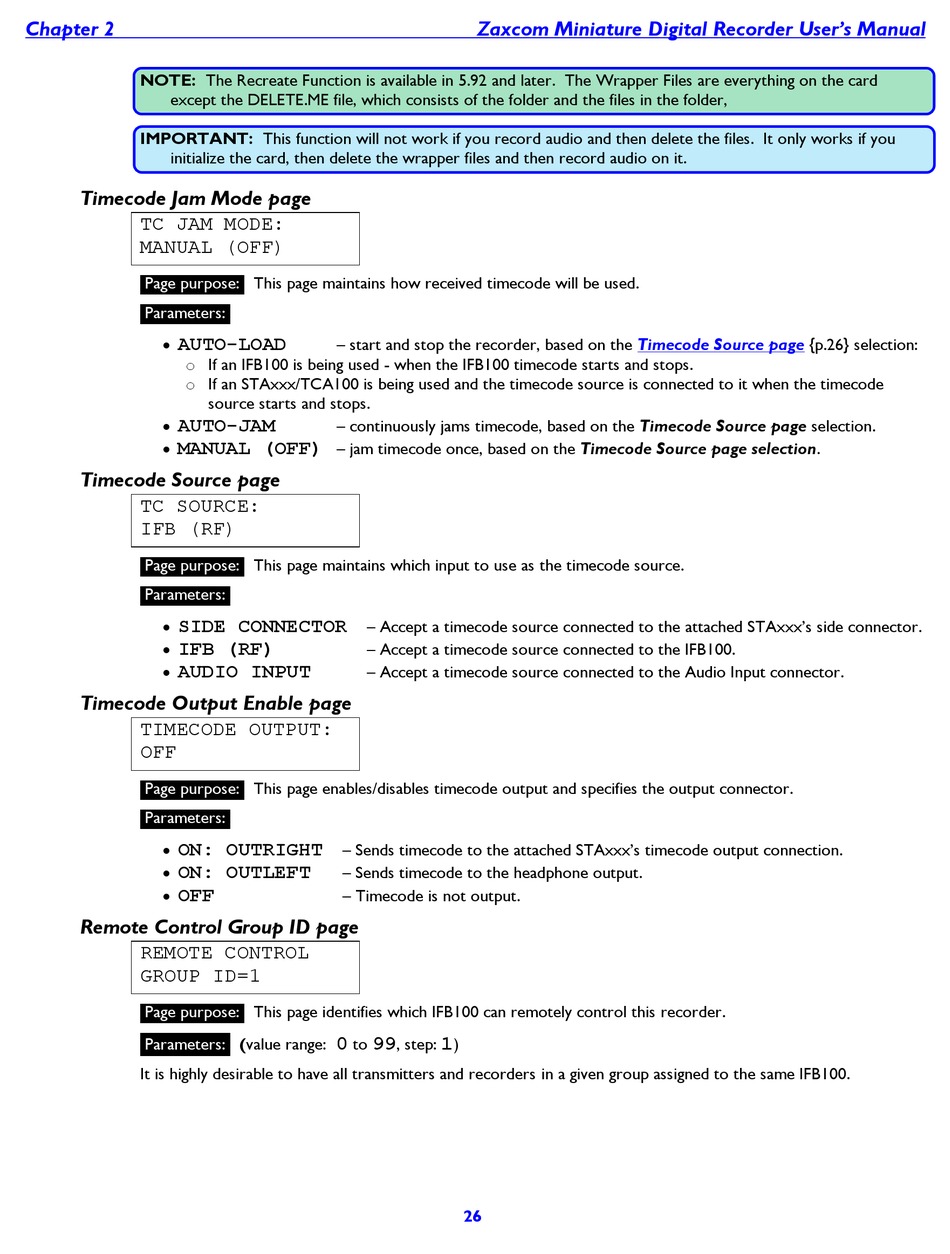

Chapter 2____________________________________Zaxcom Miniature Digital Recorder User's Manual
NOTE: The Recreate Function is available in 5.92 and later. The Wrapper Files are everything on the card
except the DELETE.ME file, which consists of the folder and the files in the folder,
IMPORTANT: This function will not work if you record audio and then delete the files. It only works if you
initialize the card, then delete the wrapper files and then record audio on it.

Timecode Jam Mode page

TC JAM MODE:
MANUAL (OFF)
Page purpose:
Parameters:
 AUTO-LOAD
o If an IFB100 is being used - when the IFB100 timecode starts and stops.
o If an STAxxx/TCA100 is being used and the timecode source is connected to it when the timecode
 AUTO-JAM
 MANUAL (OFF)

Timecode Source page

TC SOURCE:
IFB (RF)
Page purpose:
Parameters:
 SIDE CONNECTOR
 IFB (RF)
 AUDIO INPUT

Timecode Output Enable page

TIMECODE OUTPUT:
OFF
Page purpose:
Parameters:
 ON: OUTRIGHT
 ON: OUTLEFT
 OFF

Remote Control Group ID page

REMOTE CONTROL
GROUP ID=1
Page purpose:
Parameters:
It is highly desirable to have all transmitters and recorders in a given group assigned to the same IFB100.
This page maintains how received timecode will be used.
– start and stop the recorder, based on the
source starts and stops.
– continuously jams timecode, based on the Timecode Source page selection.
– jam timecode once, based on the Timecode Source page selection.
This page maintains which input to use as the timecode source.
– Accept a timecode source connected to the attached STAxxx‟s side connector.
– Accept a timecode source connected to the IFB100.
– Accept a timecode source connected to the Audio Input connector.
This page enables/disables timecode output and specifies the output connector.
– Sends timecode to the attached STAxxx‟s timecode output connection.
– Sends timecode to the headphone output.
– Timecode is not output.
This page identifies which IFB100 can remotely control this recorder.
0 99
(value range: to
1
, step: )
26
Timecode Source page {p.26} selection:
